PRODUCT SUMMARY
The MXRF-SW-2x1 is a 19" 1U rack mounted 2×1 RF switch with auto detection and is
typically used for simple switching or redundancy of the RF signal path. When one of
the RF signal inputs experiences a fault, it automatically switches to the other RF input
signal, ensuring the system's continued operation.
Product features
•
High frequency monitor resolution.
•
Web Interface
•
Optional RS232 communicate port.
•
Optional Integrated SNMP network management function.
•
Automatic or manual switchover mode.
•
User can set switch reference RF level
i
t
c
h
M
X
w
i
t
c
h
M
X
·
·
U
S
E
R
M
U
S
E
R
M
www.maxcomcorp.com
877-330-5333
2
X
1
R
F
S
e
2
X
1
R
F
S
e
A
N
U
A
L
A
N
U
A
L
Ver. 3.0
r
i
e
s
r
i
e
s
Advertisement
Related Manuals for Maxcom MX 2X1 RF Series
Summary of Contents for Maxcom MX 2X1 RF Series

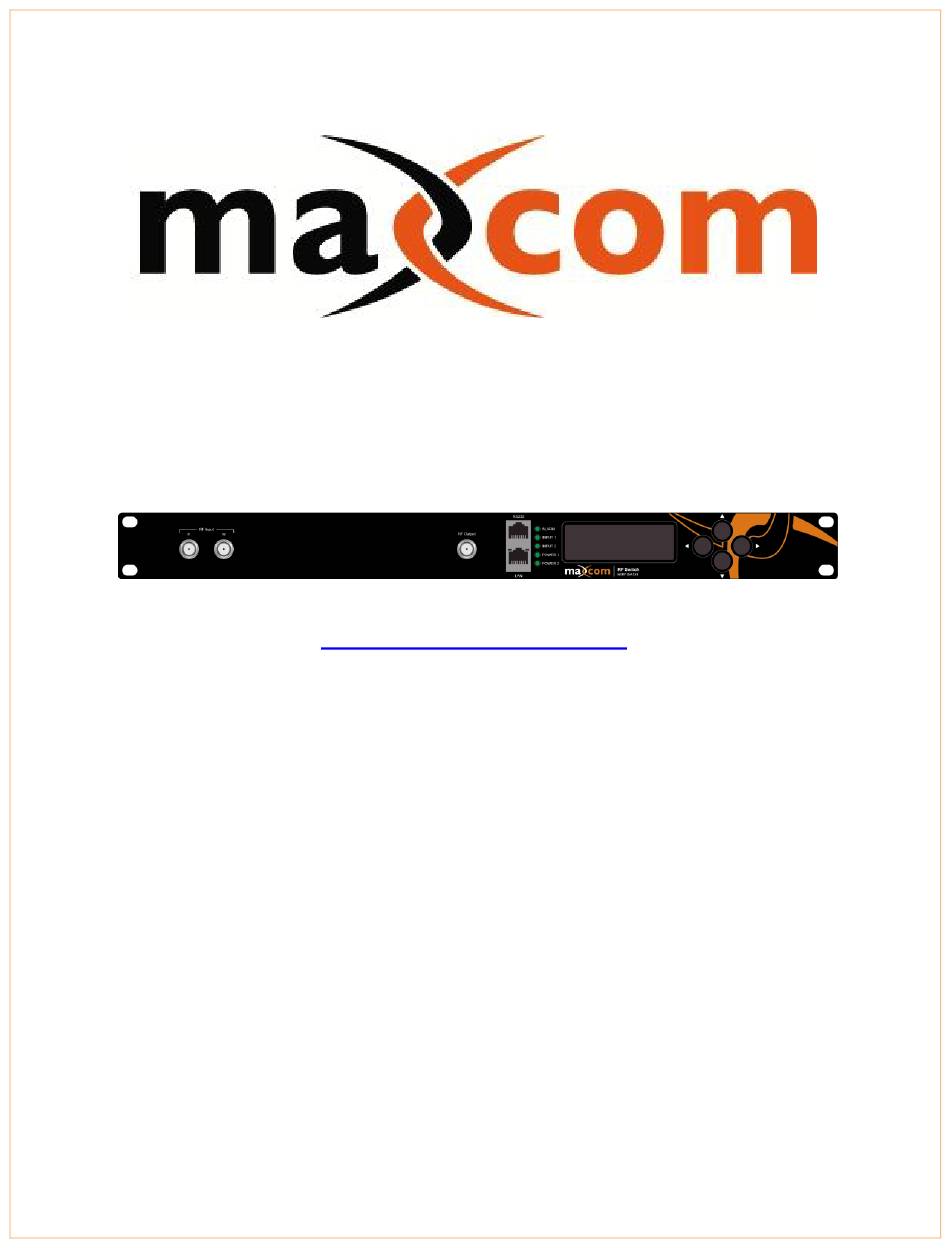

- Page 1 Ver. 3.0 · · www.maxcomcorp.com 877-330-5333 PRODUCT SUMMARY The MXRF-SW-2x1 is a 19” 1U rack mounted 2×1 RF switch with auto detection and is typically used for simple switching or redundancy of the RF signal path. When one of the RF signal inputs experiences a fault, it automatically switches to the other RF input signal, ensuring the system’s continued operation.
- Page 2 CONTROLS, INDICATORS, AND ALARMS This section of the manual will give an overview of the available menus in the MX series RF switch and their descriptions. All instructions in Section 2.0 refer to the representation of the front panel shown in the diagram below. The user scrolls through the menus using the push bottoms found on the front panel, these are located just to the right of the LCD screen.
- Page 3 Menu # 6 - Switch point Adjustable list, indicates the subordinate channel RF switch point in dBuV (If you are accustomed to using dBmV for measuring RF signal strength, please keep in mind that dBmV values are 60dB lower than levels shown in dBuV. Example: +100 dBuV is equal to +40 dBmV. This setting allows you to select the minimum RF input threshold.
- Page 4 Menu assistant manual Press the right button to display each parameter show parms Stage 1 menu: Press left button to display previous menu, press the right button to display next menu, press the UP button to go back to the main menu, pressing the DOWN button is invalid (not used).
- Page 5 Specs - Performance Index Supplement Operating bandwidth (MHz) 5~1000 Will pass 1.2 GHz Input level range (dBμV) 50~130 -10 ~ +70 dBmV Control level range (dBμV) 60~120 0 ~ +60 dBmV Resolving capability (dB) ≤0.5 Switch mode AGC & MGC Switch time (ms) ≤10...
