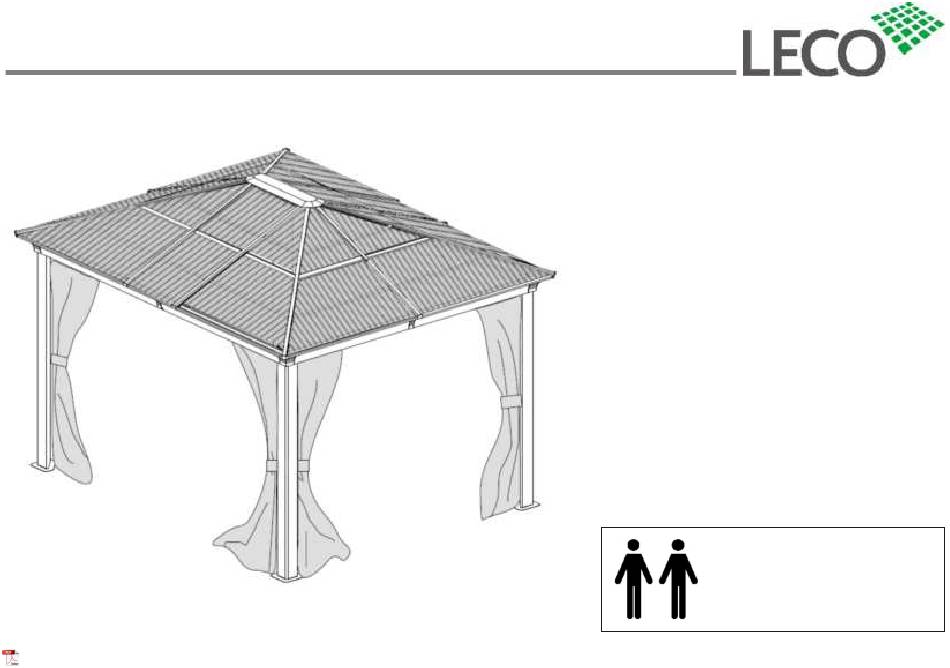

leco Profi-Pavillon Manual

Assembly dimensions ca. 365 x 300 x 270 cm

Advertisement

Quick Links

Profi - Pavillon
Profi pavilion
Profiteren paviljoen
Aufbaumasse / Assembly dimensions / Opbouw maten:
ca. 355 x 300 x H 270 cm
Art. 47 13910 214
Profi-Pavillon / Profi Pavilion / Profiteren Paviljoen
Grösse
Size
M aat
ca. 365 x 300 x 270 cm
Vor M ontage und Benutzung unbedingt
sorgfältig lesen und für spätere Zw ecke
aufbew ahren.
Read these instructions carefully before
use and assembly and keep for future
reference!
Lees deze instructies zorgvuldig door en
bew aar ze ter referentie in de toekomst!
01 / 30
Aufbau mit 2 Personen!
Assembly w ith 2 persons!
Opbouw met 2 personen!
V 2022 / I
