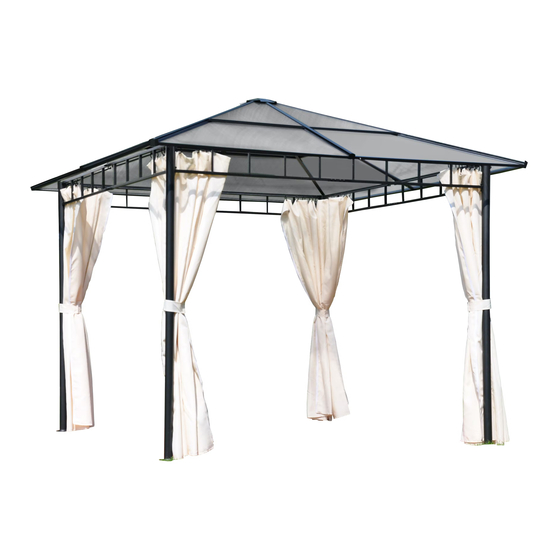

Profi - Pavillon
Profi pavilion
Art. 13930 114
Profi-Pavillon / Profi Pavilion / Profiteren Paviljoen
Profiteren paviljoen
ACHTUNG - Montageschritt Polycarbonat-Stegplatten beachten!
ATTENTION - Follow assembly of polycarbonat- sheets carefully!
ATTENTIE - Let op de montage van de polycarbonat platen!
Light-Version
Vor Montage und Benutzung unbedingt
sorgfältig lesen und für spätere Zwecke
aufbewahren.
Read these instructions carefully before
use and assembly and keep for future
reference!
Lees deze instructies zorgvuldig door en
bewaar ze ter referentie in de toekomst!
Grösse
ca. 300 x 300 cm
Aufbau mit 2 Personen!
Assembly with 2 persons!
Opbouw met 2 personen!
V 2019/1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Profi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for leco Profi

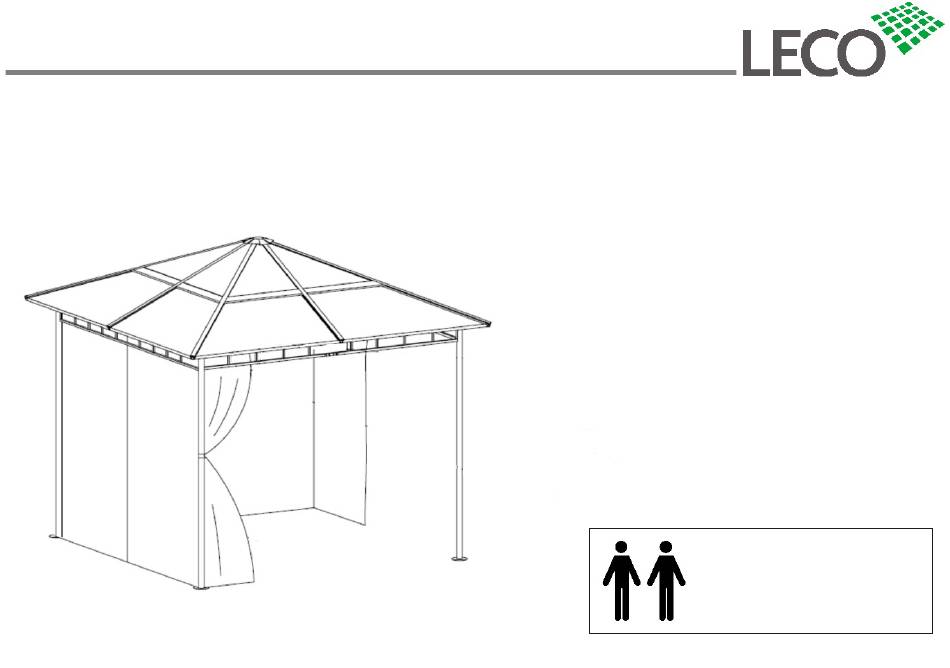

  • Page 1 Lees deze instructies zorgvuldig door en bewaar ze ter referentie in de toekomst! Aufbau mit 2 Personen! Assembly with 2 persons! Opbouw met 2 personen! V 2019/1 Art. 13930 114 Profi-Pavillon / Profi Pavilion / Profiteren Paviljoen...
  • Page 2 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Wichtige Hinweise! Entspricht das gelieferte Produkt Ihrer Bestellung? Ist die Verpackung unversehrt? Vor dem Aufbau ist der Bausatz auf Vollständigkeit und Richtigkeit der einzelnen Bauteile anhand der Stückliste zu kontrollieren. Schäden oder fehlende Teile müssen vor Aufbau umgehend gemeldet werden.
  • Page 3 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Stückliste / Spare part list / Onderdelenlijst 4 x C 4 x C2 1 x a 4 x C1 1 x A 4 x d2 4 x d1 4 x E 4 x F...
  • Page 4 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Stückliste / Spare part list / Onderdelenlijst 4 x J2 4 x J1 48 x W 8 x M 48 x Q 4 x N 36 x P1 41 x P2 4 x O...
  • Page 5 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Stückliste / Spare part list / Onderdelenlijst OBERSEITE / AUSSENSEITE TOP SIDE / OUTSIDE Stueck Stueck TOP ZIJDE / BUITEN Pieces Pieces Stuk Stuk 4 x V1 4 x V2 Bitte unbedingt darauf achten, dass die Dachplatten mit der richtigen Seite nach oben (Aufkleber Oberseite!) Montiert werden.
  • Page 6 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Stückliste / Spare part list / Onderdelenlijst Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 7 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 8 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 9 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 10 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 11 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 12 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 13 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien!
  • Page 14 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie OBERSEITE / AUSSENSEITE TOP SIDE / OUTSIDE TOP ZIJDE / BUITEN Alle Schrauben nur lose anziehen! All screws just tighten loose! Alle schroeven los aandraaien! Bitte unbedingt darauf achten, dass die Dachplatten mit der richtigen Seite nach oben (Aufkleber Oberseite!) montiert werden.
  • Page 15 Profi - Pavillon Light-Version Profi pavilion Profiteren paviljoen Aufbauanleitung / Assembly instruction / Opbouwinstructie Nun alle Schrauben fest anziehen! Regelmässig kontrollieren! Now please tighten screws firmly! Please control screws regularly! Nu schroeven vast aandraaien! Controleer schroeven regelmatig! Eine Befestigung und Verankerung des...
  • Page 16 In de herfst en winter maanden controleer het gehele stabiliteit regelmatig. Tijdens de zware sneeuw, de sneeuw belasting is onmiddellijk verwijderen. Bij schade veroorzaakt door sneeuw en stormen geen garantie! LECO-Werke Lechtreck GmbH & Co. KG - Hollefeldstrasse 41 - DE-48282 Emsdetten - Germany...
