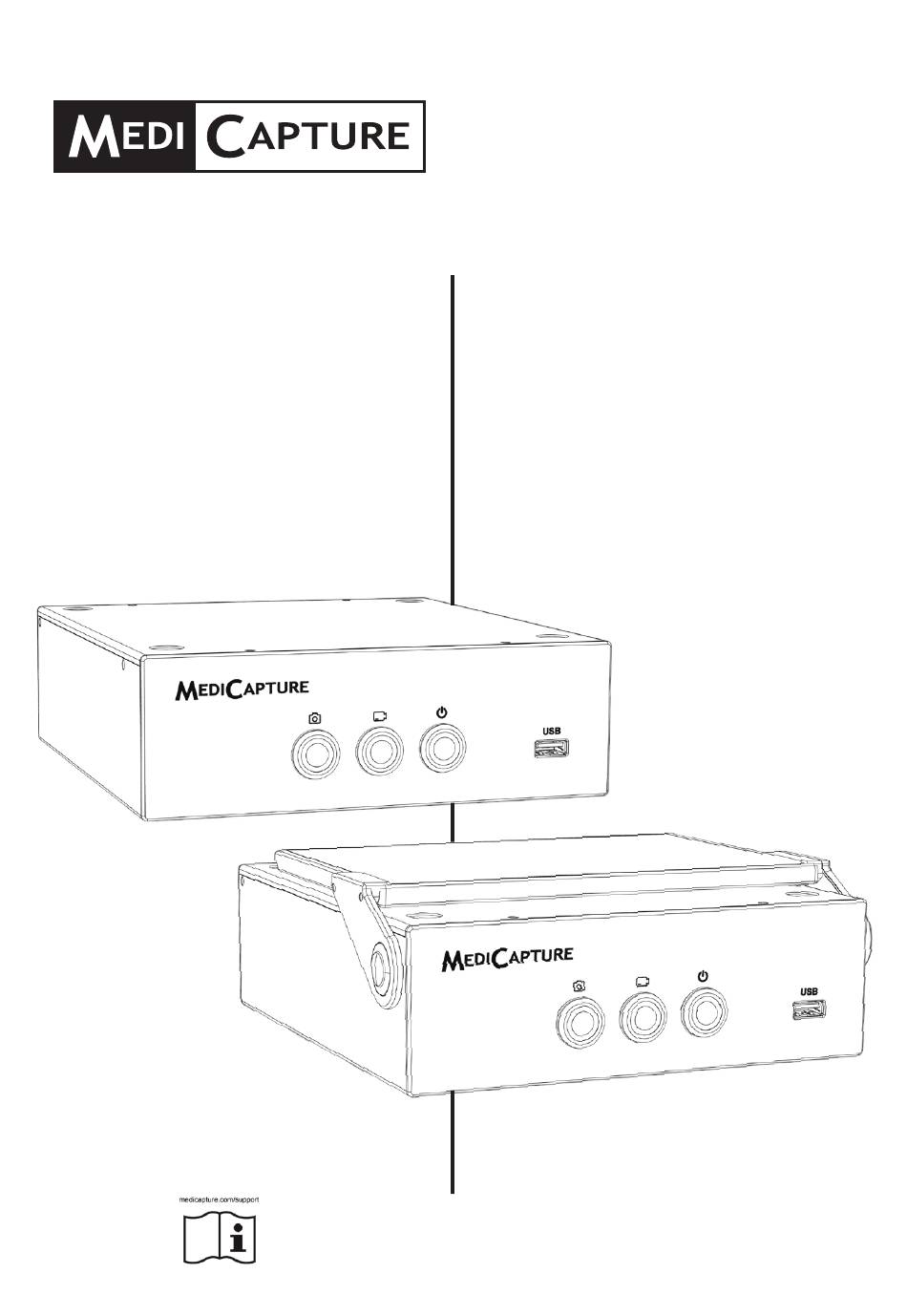

- Page 1 MVR450 MVR460 Medical Video Recorder Instructions for Use English Applies to Firmware 240701 and higher For more translations (available in pdf), please visit www.medicapture.com/support MVR450/MVR460-IFU01-EN-240701-MC Version 1.1...
-
Page 2: Precautions For Use
MediCapture MVR450/MVR460 Instructions for Use – English ® Precautions for Use Symbols in the manual Warning This symbol indicates the manufacturer Indicates a potentially hazardous situation and appears next to the manufacturer’s or improper use that could result in serious name and address. - Page 3 MediCapture MVR450/MVR460 Instructions for Use – English ® WARNING To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Do not modify this equipment without authorization of the manufacturer. To avoid risk of electric shock, replace the fuse only by qualified service personnel, and only with the type specified in the Instructions for Use.
-
Page 4: Précautions D'utilisation
MediCapture MVR450/MVR460 Instructions for Use – English ® (CANADA ONLY) Note régionale pour le Canada Précautions d’utilisation Symboles utilisés dans le manuel AVERTISSEMENT Cette image désigne le fabricant ;elle apparaît à côté Indique une situation potentiellement du nom et de l’adresse du fabricant. - Page 5 MediCapture MVR450/MVR460 Instructions for Use – English ® (CANADA ONLY) Note régionale pour le Canada MISE EN GARDE Pour éviter les risques de choc électrique, cet équipement ne doit être connecté qu’à une prise électrique avec borne de terre. Ne pas modifier cet équipment sans autorisation expresse du fabricant.
-
Page 6: Table Of Contents
MediCapture recommends MediCapture brand USB flash drives. ® Please visit medicapture.com for information on how to purchase flash drives. Technical Support For technical support and other questions, please visit medicapture.com or call 888-922-7887 (toll free from within the USA) or +1-503-445-6935 (from outside the USA). -
Page 7: Residual Risks
18. In case of breakdown, Service Equipment is performed by qualified personnel only, where qualified personnel refers to the person with proper education or training assigned by the hospital, medical institution or authorized distributor. 19. This device does not have any serviceable parts. Repairs are carried out exclusively in MediCapture service centers. <7>... -
Page 8: Data Protection
If MediCapture notices that personal data or PHI is stored on the device, or if there is only reasonable suspicion that this is the case, the device will be returned at the expense of the user and the user will be instructed to re-send the device in the condition described hereinabove. -
Page 9: First Installation / General Preparations For Safe Operation And Performance
MediCapture MVR450/MVR460 Instructions for Use – English ® First installation / General preparations for safe operation and performance: 1. Connect to the power cord to the back of the device and turn the device on. 2. Connect a network cable to LAN – if required. -
Page 10: Checks Before You Operate The Device
The hygiene officer of the operator should follow its own disinfection plan for cleaning devices. Start: 1. Insert the supplied MediCapture USB flash drive in the front panel. (Connect USB flash drive and all external pointing devices first, e.g., mouse, keyboard, touch screen, etc. before switching on the device from the back panel.) -
Page 11: Touchscreen Monitor (Mvr460 Only)
MediCapture MVR450/MVR460 Instructions for Use – English ® Touchscreen Monitor (MVR460 only) The integrated touchscreen monitor serves to operate the MVR and for easy access to settings. The touchscreen position can be changed by pressing the release button on the left side. -
Page 12: Back Panel
MediCapture MVR450/MVR460 Instructions for Use – English ® Back Panel ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ① RS232 External controls. 3.5mm mini jack Stereo TRS (3-pin). ② Footswitch / Remote cable 2 footswitch / camera remote cables can be connected. Use the supplied Remote Splitter Cable for still images and video start/stop connections. -
Page 13: Connecting Cameras And Other Video Sources
MediCapture MVR450/MVR460 Instructions for Use – English ® The unit is for exclusive interconnection with IEC60601 certified equipment in the patient environment and IEC60XXX certified equipment outside of the patient environment. A certified power supply cord set must be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. -
Page 14: Connecting Touchscreen Monitors
When this device is used with a touchscreen monitor or a viewing monitor, the monitor must meet the requirements of IEC 60601-1. The set “MVR450/MVR460 recorder + monitor” must also meet the requirements of section 16 of IEC 60601-1 to ensure system safety. -
Page 15: Monitor User Interface
MediCapture MVR450/MVR460 Instructions for Use – English ® Monitor User Interface Easy-to-use icons are displayed on the monitor. Icons can be tapped directly on the touchscreen. Capture Photo Record Video Start/Stop Control Icon and Review last study Change Input Signal... -
Page 16: Remote Control With A Remote Device (Tablet) By Using The Mvr Remote App
Insert the flash drive in the front USB port. MediCapture brand flash drives are recommended. USB Drive Connector Connect a USB drive here Images and videos are captured to the drive. MediCapture brand flash drives come in a variety of models. <16> MVR450/MVR460-IFU01-EN-240701-MC Version 1.1... -
Page 17: Creating Patient Data
MediCapture MVR450/MVR460 Instructions for Use – English ® Creating Patient Data The workflow for patient data input depends on the settings for Patient Info. ➤ Settings ➤ System ➤ Patient Info This device starts with a defined home screen after switching-on or after a study was finished. -
Page 18: Manual Patient Data Input
MediCapture MVR450/MVR460 Instructions for Use – English ® Manual Patient Data Input You can type in patient information to assign images and videos to a patient. Patient info settings must be set to Manual. ➤ Settings ➤ System ➤ Patient Info Tap on Start to start your new study. -
Page 19: Recording Videos
MediCapture MVR450/MVR460 Instructions for Use – English ® Recording Videos To start recording video, tap on the Record Video icon on the touchscreen. Tap icon again to stop recording. Front panel: Press the Record Video button on the front panel. Press the button again to stop recording. -
Page 20: Changing Input Signals In Live View = Multi Input
Recording to a USB Flash Drive Recording to the supplied MediCapture USB flash drive is the easiest way to start. When you finish recording, you can remove the flash drive and easily carry it with you. -
Page 21: Recording To A Usb Hard Drive
MediCapture MVR450/MVR460 Instructions for Use – English ® Recording to a USB Hard Drive Recording to a USB hard drive is very similar to recording to a USB flash drive. The primary benefit to using a USB hard drive is that it can provide much greater storage capacity than a USB flash drive. Before using a USB hard drive with your device, note the following: •... -
Page 22: Recording To Internal Storage
MediCapture MVR450/MVR460 Instructions for Use – English ® Recording to Internal Storage Recording to internal storage as a second option improves safety of your stored data as you always create a backup recording. Please do not consider the internal storage as a long-term storage. Even the biggest internal memory will eventually fill to capacity. -
Page 23: Reviewing Studies
MediCapture MVR450/MVR460 Instructions for Use – English ® Reviewing Studies You can review your active study from the live recording screen. This is helpful to control your recordings before you finish this study. Video recordings must be stopped before changing to Review. - Page 24 MediCapture MVR450/MVR460 Instructions for Use – English ® Select one storage. Internal, USB or Network Please note: If a large amount of data has already been written to the internal storage, it may take a while until the data is completely read out. Please wait until the corresponding note disappears.
-
Page 25: Deleting Data
MediCapture MVR450/MVR460 Instructions for Use – English ® Deleting Data Data on selected storage media can be deleted individually. Your confirmation of each deleting activity is requested on the screen. • Deleting single files (pictures/videos): Select the file you want to delete and tap on the delete icon. -
Page 26: Cutting Videos
MediCapture MVR450/MVR460 Instructions for Use – English ® Cutting videos When a video is selected, the cut function can be activated by pressing the blue “Scissors” icon. Shortening a video: By moving the yellow bar on the left and right, the start sequence and end sequence of the video are cut. -
Page 27: Reviewing Still Images
MediCapture MVR450/MVR460 Instructions for Use – English ® Reviewing Still images A selected image can be edited in many ways and stored afterwards as a new image to the study. Options are: • Magnification / cropping • Adding text notes •... -
Page 28: Report Header Image
Turning the device off or a mains power failure during active video recording will also cause corrupted video files. This device features an Automatic Video Repair Function, patented by MediCapture . As soon as you plug-in a USB drive with a ®... -
Page 29: Information Page / System Settings
MediCapture MVR450/MVR460 Instructions for Use – English ® Information Page / System Settings An Info Icon is displayed in the Start screen and in the live recording screen. By using a touchscreen monitor or a USB mouse, you can tap on the Info Icon to access the INFORMATION page. -
Page 30: Settings (For Administrators)
MediCapture MVR450/MVR460 Instructions for Use – English ® Settings (for Administrators) You can find all device setup features in Settings. Please note: Advanced Settings as well as optional networking should only be changed by technical personnel or IT administrators. SETTINGS are only available in English language. -
Page 31: User Accounts For Security Protection
Once user accounts are enabled, you need to know your User Names and Passwords to operate this device. MediCapture has no access to user account information and therefore, no “Master Password” exists. In case you do not remember your ADMIN user account information, this device requires a complete setup to factory default settings, which means many of your achieved information will get lost. -
Page 32: User Roles - Protecting Advanced Settings
MediCapture MVR450/MVR460 Instructions for Use – English ® User Roles – Protecting Advanced Settings ➤ Settings ➤ Advanced ➤ User Accounts User Roles can be assigned to users. These gradations of roles are available: • ADMIN: User who has access to all parts of the User Interface and all Settings. The ADMIN can configure the user accounts where it is possible to add, delete, rename users and change their roles. -
Page 33: User Log In With User Name And Password
MediCapture MVR450/MVR460 Instructions for Use – English ® User log in with User Name and Password. Note: If the User account information is lost, the users with ADMIN roles can login with their ADMIN password. Special Video Input Settings ➤ Settings ➤ Video/Audio ➤ Video Input Picture-in-Picture Recording (PIP) When using Multi-Input you can set the recording to Picture-in-Picture. -
Page 34: Recording Options
You can activate the optional Pause function. Upgrades / Activation keys Please contact MediCapture for ordering information to activation keys. The unique device ID needs to be provided (see Information screen). The key is specific to the current device and cannot be used for other devices. -
Page 35: Appendix A: Technical Specifications
MediCapture MVR450/MVR460 Instructions for Use – English ® Appendix A: Technical Specifications Function Records video and still images in high definition from medical video sources to a USB storage, Internal storage or Network storage. Case Aluminum Alloy Buttons Stainless Steel, fluid resistant Video Connections One video connection can be used per channel. - Page 36 MediCapture MVR450/MVR460 Instructions for Use – English ® Video Output HDMI Output (supported monitors): 3840x2160p60/50/30/25 (with User Interface 1920x1080p 60/59,94/50/30/25 overlay) 1280x720p 60/59,94/50 (Device matches to attached monitor resolution and frame rate automatically) USB (Type-C) – DisplayPort signal: 4096x2160p 30/25...
- Page 37 MediCapture MVR450/MVR460 Instructions for Use – English ® Internal Storage HDD 2TB Larger Internal Storage by order. External Storage USB drives (flash drives or hard drives), FAT32 / NTFS / exFAT USB Support USB3.0, Super speed, 1 front connector, 2 rear connectors.
-
Page 38: Compliance / Certification / Classification
Inc., 2250 Hickory Road, Suite 200 Bd., Plymouth Meeting, PA 19462 USA, Phone +1 610-238-0700, declare under ® our sole responsibility that the products MVR450 / MVR460 comply with Part 15 Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following to conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 39: Appendix B: Medicapture Limited Warranty
Note: MediCapture reserves the right to utilize reconditioned subassemblies as warranty replacements. This warranty applies only to those products sold by retailers authorized by MediCapture to sell such products and is enforceable by the original purchaser only.
