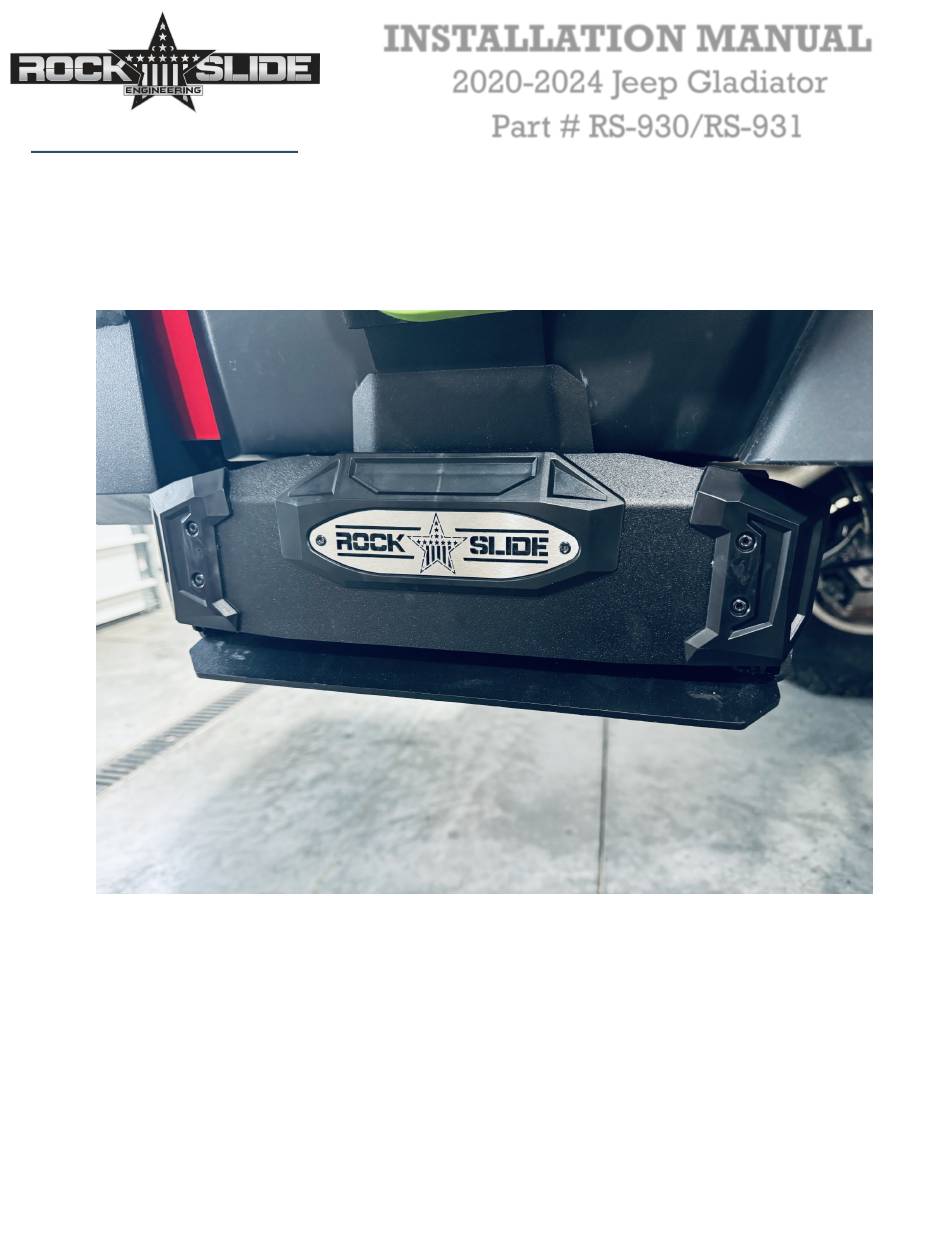

- Page 1 INSTALLATION MANUAL 2020-2024 Jeep Gladiator Part # RS-930/RS-931 Made in the USA R-Step for the Jeep Gladiator! ROCKSLIDEENGINEERING.COM REVISED 4/25/2024 - NEED ASSISTANCE? 435.752.4580 - PAGE 1...
- Page 2 Tools Required Description Quantity 19mm or 3/4” Socket R-step 13mm or 1/2” Socket Gladiator R-step Bracket 17mm Socket 17 mm bolts Wrench with 3-4”extension 1/2” Carriage Bolt Nylock nut for Carriage Bolt **Optional for quicker install** 5/16 thread chasing bolts Impact Gun with PPF(Paint Protection Film) adapters...
- Page 3 Step 1 Behind the rear tire of the Gladiator locate the 2 threaded nuts and 1 hole shown in the picture. These will be the bolt loca- tions for the R-step Bracket. Step 2 You will first install the Gladi- ator R-step bracket.
- Page 4 Step 3 You will next install the long car- riage bolt into the square hole shown here and secure with nut. Now tighten all 3 bolts to 35lbs of torque. Step 4 With the bracket installed, it is time to mount the R-step.
- Page 5 Step 4 Install the bolts into the weld nuts on the bracket. Leave these bolts hand tight until all bolts are installed. Once the 4 bolts are all hand tightened you can now tighten these bolts to 20 ft/lbs of torque. Step 5 With the R-step now in- stalled.
- Page 6 Step 6 With R-Step installed. Apply Paint Protection Film where desired. Before installing PPF clean surface with alcohol insuring it s clean and free of any debris. ROCKSLIDEENGINEERING.COM REVISED 4/25/2024 - NEED ASSISTANCE? 435.752.4580 - PAGE 6...
-
Page 7: Warranty Policy
WARRANTY POLICY LIMITED TWELVE (12) MONTH WARRANTY FOR FINISH AND ELECTRICAL COMPONENTS Rock-Slide Engineering, LLC (“RSE”) warrants to the original purchaser that (a) the structural and mechanical com- ponents of the Step Sliders will be free of defects in material and workmanship for the lifetime of the Step Sliders (the “product”), and (b) the finish (powder coat) and the electrical components (including the motor) will be free of defects in material and workmanship for a period of twelve (12) months from the original date of purchase.
