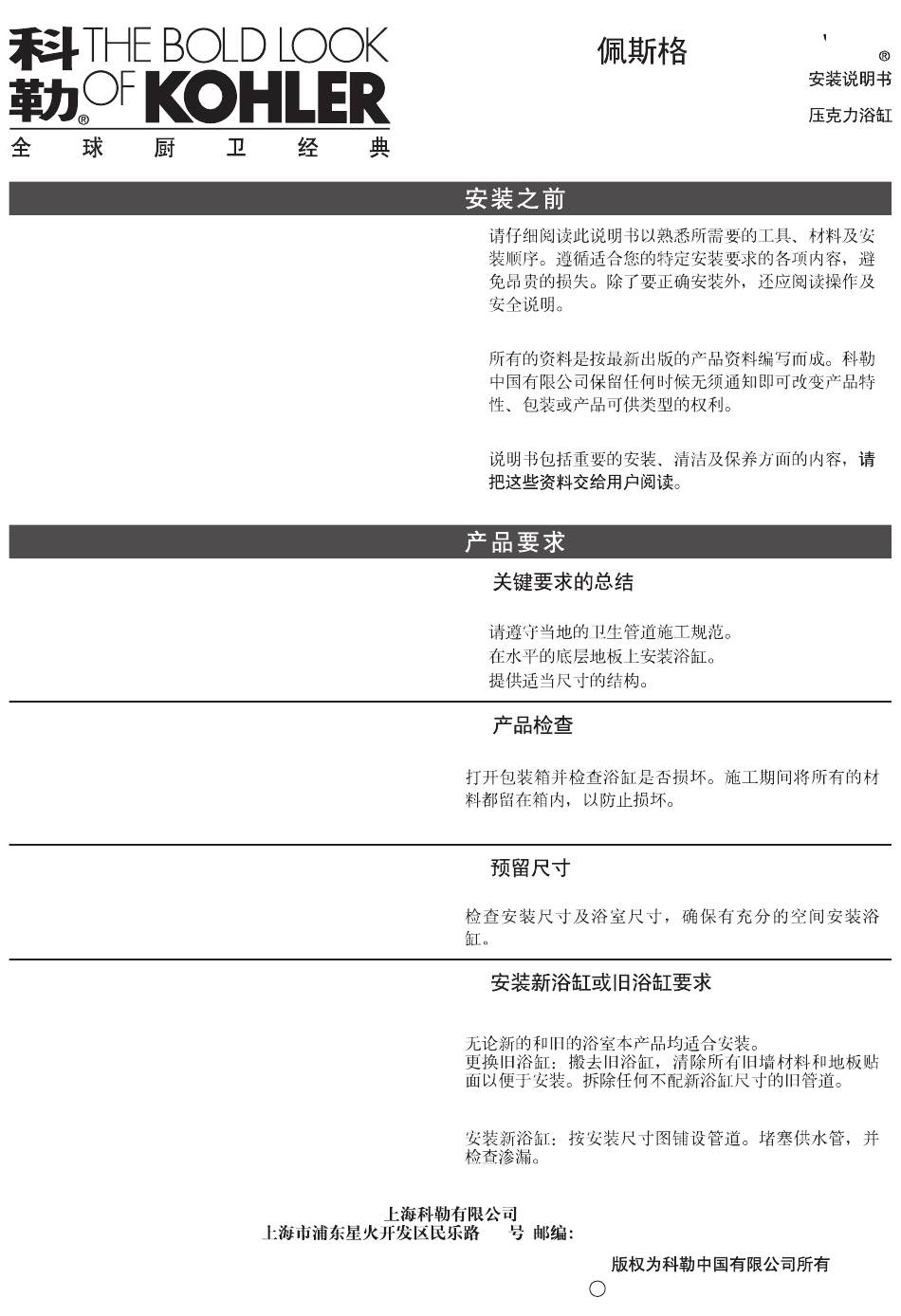

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-please leave these
instructions for the consumer.
PRODUCT REQUIREMENTS
PRODUCT REQUIREMENTS
A. Product Requirements
!
Observe all local plumbing codes.
!
Install the unit to a level subfloor.
!
Provide properly-dimensioned framing.
B. Product Inspection
Uncrate and inspect bath for damage. Leave all
materials in carton during construction to prevent
damage.
C. Clearance Requirements
Check the rough-in and room dimensions to provide
adequate available space for the bath unit.
D. New or Replacement Installation
Requirements
This bath can be installed in new or existing bathrooms.
For replacement: Remove the old bath, and remove
enough old wall material and floor covering from the
area to allow for installation. Remove any old plumbing
that does not confo m to the rough-in requirements.
r
For new installation: Position the plumbing according to
the rough-in dimensions. Cap the suppliers, and check
for leaks.
1033093-T01-C
·
·
·
·
·
·
·
A.
!
!
!
B.
C.
D.
368
201419
ã
Copyright Kohler China Ltd., 2004
C
1
PRESQU ILE
INSTALLATION INSTRUCTIONS
ACRYLIC BATH
K-6060T
, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-6060T and is the answer not in the manual?

Questions and answers

Related Manuals for Kohler K-6060T

Summary of Contents for Kohler K-6060T

  • Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make · changes in product characteristics, packaging, or · availability at any time without notice.
  • Page 2 ROUGHING-IN A.Ordering Information: Hardware: Drain 17295T-CP 17295T-CP Optional Presqu ile Bath Feet Fitting Kit T155100 Included T155100 B.Product Information: Top area Weight Fixture*: Basin area Bathing Well 1018x536mm 1500x696mm 23Kg 1018x536mm 23Kg 1500x696mm Water depth Capacity 321mm 200L To Overflow 321mm * Approximate measurements for comparison only.

  • Page 3: Installation Requirements

    INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS A. Tools Required B. Materials Required · · · · Adjustable pipe Plumbers putty · · wrench Wall coverings, as necessary · · · Rule · Silicone sealant · · · Level · Gypsum ciment (optional) ·...
  • Page 4 2). Recess Installation The suggested framing construction is illustrated. Finished Wall Wall Framing Construction 1/16" (2mm) Gap Between Bath Rim Bath Rim and Framing 3). Peninsular Installation Finished Wall The suggested framing construction is illustrated. Wall Framing 1/16" (2mm) Gap Between Construction Bath Rim Bath Rim and Framing...

  • Page 5: Before Installing Unit

    BEFORE INSTALLING UNIT BEFORE INSTALLING UNIT A. Partially Install Bath Drain Install the drain on the bath according to the drain manufacturer's instructions. B. Protect the Bath Unit Position a protective covering or similar material in the bottom of the unit. Be careful not to scratch the bath surface.
  • Page 6 2). Using a level, adjust the height of the feet by loosening the lock nut (1) and turning the feet as shown (2) below. The distance from bath lip to the underside of the level should measure 535mm, Make sure to re- tighten the lock nut after final adjustment (3).

  • Page 7: Complete Finish Wall

    C. Install Plumbing CAUTION: Risk of damage to bath bottom and subfloor. Ensure a watertight seal on the bath drain connections. 1 . When the bath is securely positioned, connect the drain to the trap. NOTE: An access panel will simplify future maintenance.

  • Page 8: Clean-Up After Installation

    DRILLING AND CUTTING ACRYLIC DRILLING AND CUTTING ACRYLIC DRILLING: Small holes can be drilled with a twist drill, but the cutting edge MUST be backed off with an oil 12mm 6mmx1800 / 12mmx900 stone (the sharp edge dulled). Large holes must be drilled with a hole saw.

  • Page 9: Limited One-Year Warranty

    This product is warranted for one year from date of purchase. Kohler China will be responsible for any problems caused by manufacturing defects provided with the invoice. Kohler China will, at its election, repair, replace or make appropriate adjustment where Kohler China inspection discloses any such defects occurring in normal usage within one year after purchase.
