1 Overview
The CHS-RL-MP mounting
plate is designed to mount an
HS-NCM, alleviating the over-
bending of fiber optic and/or
USB cables. The CHS-RL-MP
fits on any chassis with the
HS-NCM mounted facing either
to the right or to the left for
easier access to wiring. The
CHS-RL-MP comes with all
hardware necessary for
installation.
2 Installation

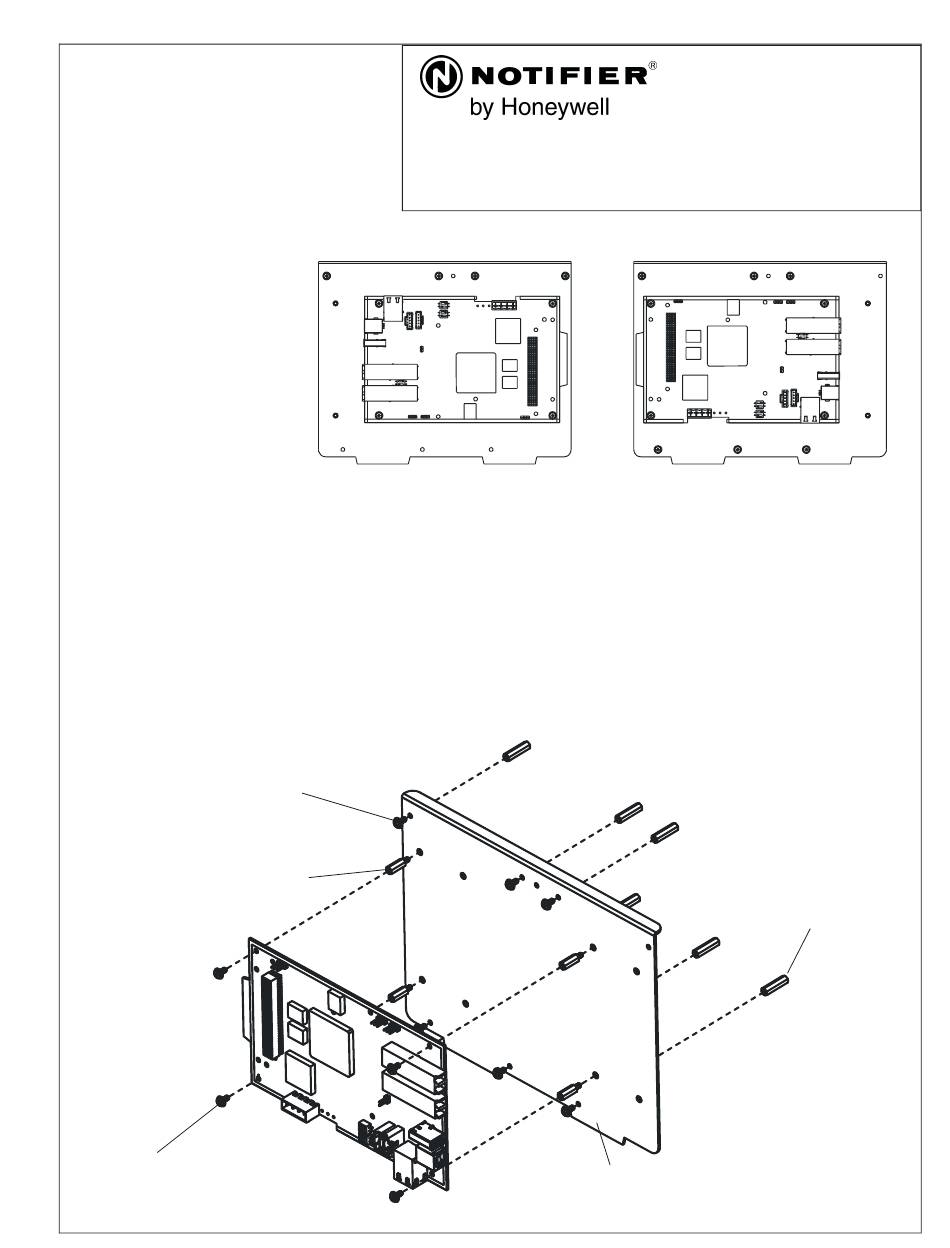

2.1 Installation on a CHS-2D (for use in an ABS-2D cabinet)
1. Install the HS-NCM onto the CHS-RL-MP by attaching four (4) 4-40 x .5" M/F standoffs into the positions indicated.
2. Secure the HS-NCM onto the standoffs with four (4) 4-40 screws.
3. Install the CHS-RL-MP onto the CHS-2D by installing six (6) 4-40 x .75" F/F standoffs onto the pem studs on the
CHS-2D.
4. Insert the tabs on the bottom of the CHS-RL-MP into the tab slots of the CHS-2D.
5. Secure the CHS-RL-MP to the CHS-2D with six (6) 4-40 screws.
Step 5: Secure with
six screws
Step 1: Install four M/F
standoffs
Step 2: Secure with
four screws
CHS-RL-MP
Product Installation Document
PN 53215:A 12/12/2007 07-789
Step 4: Insert tabs into
chassis tab slots
12 Clintonville Road
Northford, CT 06472-1610 USA
203-484-7161 • FAX 203-484-7118
www.notifier.com
Step 3: Install six F/F
standoffs to chassis
