Summary of Contents for Ametek ATLAS TXRX01

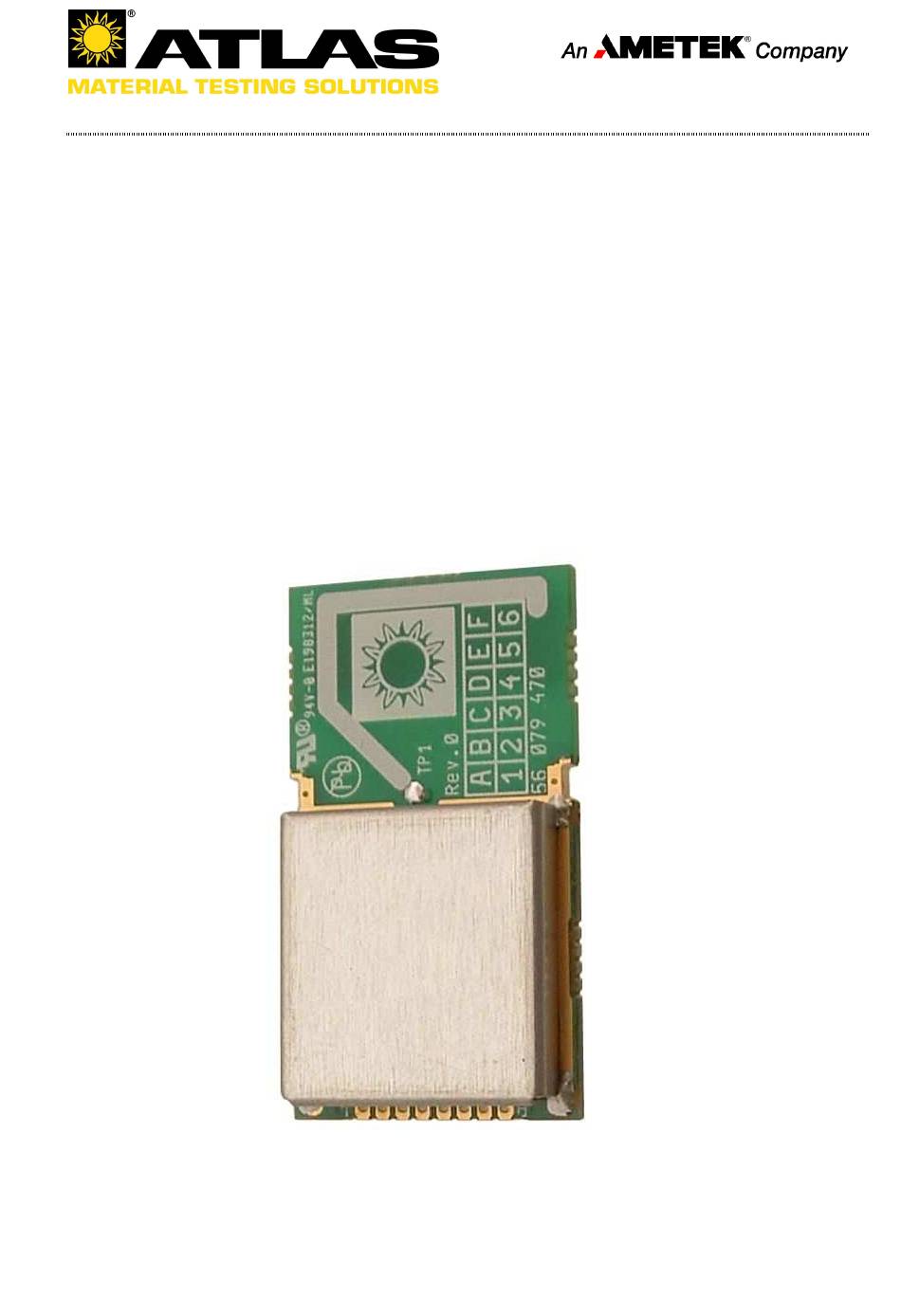

- Page 1 User manual Transceiver module TXRX01 User manual Transceiver module TXRX01 File: TXRX01 MODUL G (User Manual).doc Page 1/17 Created by: Christian Bernatek Date: 24 November 2011 Rev.: 1.01...
- Page 2 User manual Transceiver module TXRX01 Copyright This documentation is protected by copyright laws. Based on the rights inherent in this, reprinting, photomechanical or digital processing or reproduction of this document either in full or in part are only permitted with the express, written consent of Atlas Material Testing Technology GmbH.
-
Page 3: Table Of Contents
User manual Transceiver module TXRX01 Contents 1 GENERAL ..............................4 2 SYSTEM INTEGRATION ..........................4 3 PIN ASSIGNMENT............................4 4 RF CONSIDERATIONS ..........................5 5 OPERATION ..............................5 5.1 O ..........................5 PERATIONAL ODES 5.2 S ............................6 TATE DIAGRAM 5.3 P .......................... -
Page 4: General
User manual Transceiver module TXRX01 1 GENERAL TXRX01 is a 2.4GHz Data Transceiver for short distance communications. It contains all components necessary to establish a two way communication with other modules of this make and model. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. -
Page 5: Rf Considerations
User manual Transceiver module TXRX01 Table 1: Pin assignment Function Type Description Power 3.3 V DC Power Ground (0V) Digital Input Enable Activates RX or TX mode Digital Input SPI Chip Select Digital Input SPI Clock MOSI Digital Input SPI Slave Data Input MISO Digital Output SPI Slave Data Output, with tri-state option... -
Page 6: State Diagram
User manual Transceiver module TXRX01 5.2 STATE DIAGRAM The state diagram in Figure 1 shows the operating modes and how they function. There are three types of distinct states highlighted in the state diagram: • Recommended operating mode: is a recommended state used during normal operation. •... -
Page 7: Power Down Mode
User manual Transceiver module TXRX01 5.3 POWER DOWN MODE In power down mode the TXRX01 module is disabled using minimal current consumption. All register values available are maintained and the SPI is kept active, enabling change of configuration and the uploading/downloading of data registers. -
Page 8: Data And Control Interface
User manual Transceiver module TXRX01 Table 2: Operational modes Mode PWR_UP PRIM_RX CE input pin FIFO state register register RX mode TX mode Data in TX FIFOs. Will empty all levels in TX FIFOs (a) TX mode Min. 10µs Data in TX FIFOs.Will empty one high pulse level in TX FIFOs (b) Standby-II... -
Page 9: Data Fifo
User manual Transceiver module TXRX01 The STATUS register is serially shifted out on the MISO pin simultaneously to the SPI command word shifting to the MOSI pin. The serial shifting SPI commands is in the following format: Command word: MSBit to LSBit (one byte) Data bytes: LSByte to MSByte, MSBit in each byte first Table 3: SPI commands... -
Page 10: Register Map
User manual Transceiver module TXRX01 • RX three level, 32 byte FIFO Both FIFOs have a controller and are accessible through the SPI by using dedicated SPI commands. A TX FIFO in PRX can store payloads for ACK packets to three different PTX devices. If the TX FIFO contains more than one payload to a pipe, payloads are handled using the first in - first out principle. - Page 11 User manual Transceiver module TXRX01 Address Mnemonic Reset Type Description (Hex) Value ENAA_P1 Enable auto acknowledgement data pipe 1 ENAA_P0 Enable auto acknowledgement data pipe 0 EN_RXADDR Enabled RX Addresses Reserved Only '00' allowed ERX_P5 Enable data pipe 5. ERX_P4 Enable data pipe 4.
- Page 12 User manual Transceiver module TXRX01 Address Mnemonic Reset Type Description (Hex) Value RF_DR_HIGH Select between the high speed data rates. This bit is don’t care if RF_DR_LOW is set. Encoding: [RF_DR_LOW, RF_DR_HIGH]: ‘00’ – 1Mbps ‘01’ – 2Mbps ‘10’ – 250kbps ‘11’...
- Page 13 User manual Transceiver module TXRX01 Address Mnemonic Reset Type Description (Hex) Value RX_ADDR_P2 0xC3 Receive address data pipe 2. Only LSB. MSBytes are equal to RX_ADDR_P1[39:8] RX_ADDR_P3 0xC4 Receive address data pipe 3. Only LSB. MSBytes are equal to RX_ADDR_P1[39:8] RX_ADDR_P4 0xC5 Receive address data pipe 4.
- Page 14 User manual Transceiver module TXRX01 Address Mnemonic Reset Type Description (Hex) Value RX_PW_P4 Number of bytes in RX payload in data pipe 4 (1 to 32 bytes). 0 Pipe not used 1 = 1 byte … 32 = 32 bytes RX_PW_P5 Reserved Only '00' allowed...
-
Page 15: Interrupt
User manual Transceiver module TXRX01 Address Mnemonic Reset Type Description (Hex) Value DYNPD Enable dynamic payload length Reserved Only ‘00’ allowed DPL_P5 Enable dynamic payload length data pipe 5. (Requires EN_DPL and ENAA_P5) DPL_P4 Enable dynamic payload length data pipe 4. (Requires EN_DPL and ENAA_P4) DPL_P3 Enable dynamic payload length data pipe 3. -
Page 16: Module Txrx01 Str
User manual Transceiver module TXRX01 6.1 MODULE TXRX01 STR FCC ID: XL4-TXRX01 8716A-TXRX01 Modell: TXRX01 STR Label for TXRX01 STR module (1,8 cm * 2,9 cm) If the label is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. -
Page 17: Power Supply
User manual Transceiver module TXRX01 7 POWER SUPPLY This module is designed to operate at an internal voltage of 3.3VDC max. This is provided by the use of a LDO voltage regulator with a typical dropout voltage of 150mV, allowing Lithium batteries with a nominal output of >= 3.5V to be used.
