Kongsberg Simrad LF3000 Mounting Instructions

LF3000 LINEAR FEEDBACK WITH
LFI3000 MK2 INTERFACE
MOUNTING INSTRUCTIONS

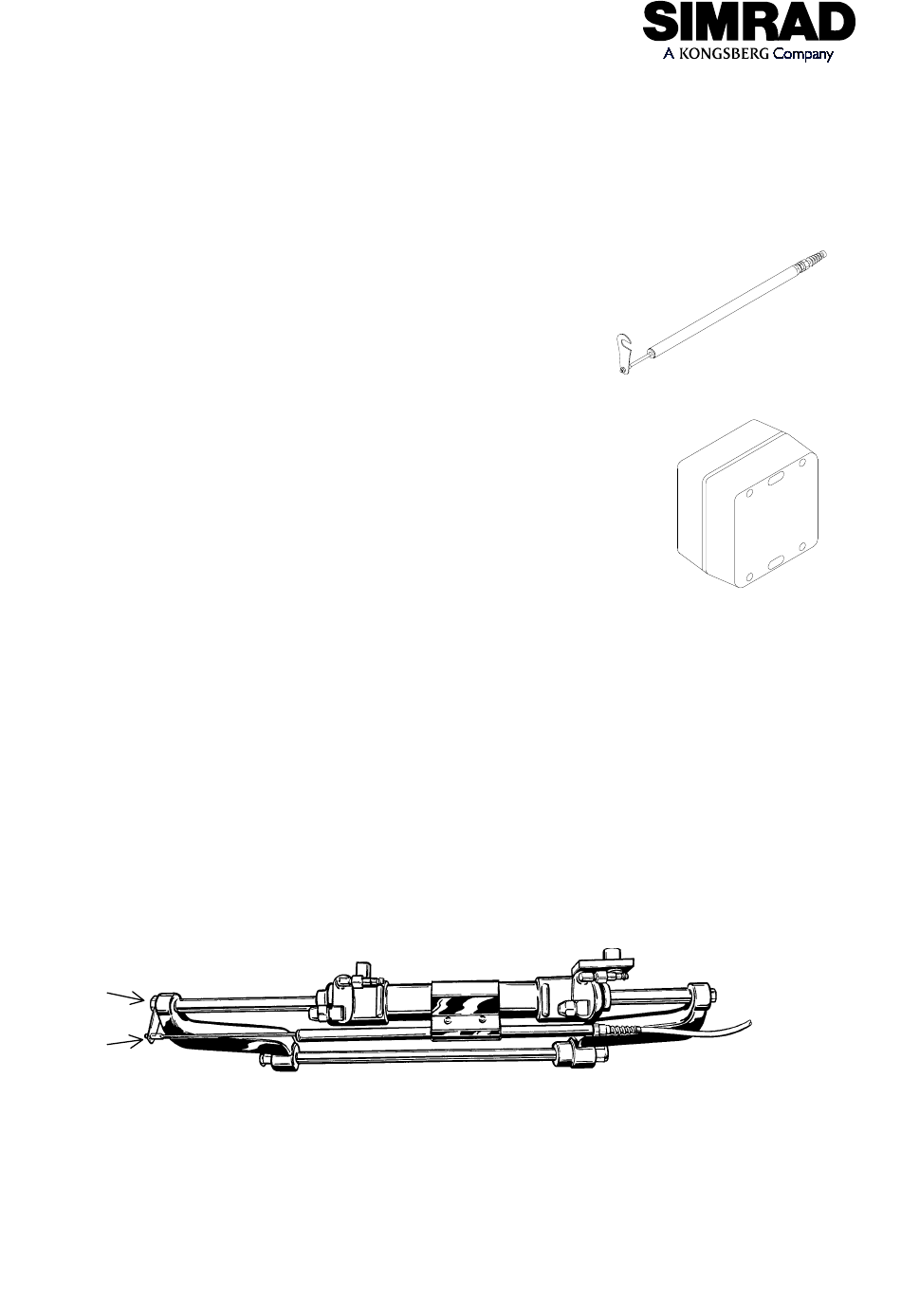

LF3000 Linear Feedback (P/N 20187288)
Linear feedback unit for boats with outboard engine.
Transforms the linear movement to an analogue signal.
Supplied with 8,5 m cable and mounting clamps.
LFI3000 Mk2 Linear Feedback Interface (P/N 20187951)
Interface unit for LF3000 Linear Feedback. Converts the analogue
LF3000 signal to the standard digital feedback signal for the autopilot
steering computer.
Mounting
The rod of the LF3000 is not locked in place in the cylinder. If caution is not
Note !
exercised it may slip out of its housing and end up over the side, so be careful!
The LF3000 is a waterproof feedback unit. It has a 300 mm (11,8") stroke and comes
with a special mounting bracket which secures the LF3000 to the cylinder of the
existing outboard drive unit.
The 8,5 m (28') cable is terminated in the LFI3000 Mk2 Linear Feedback Interface
according to the wiring diagram.
Centre the drives. Loosely secure the LF3000 to the supplied mounting bracket, across
the centre of the drive unit cylinder. Either cylinder may be used if there is a dual set
up. You may mount the feedback in either direction, i.e. the shaft of LF3000 may point
to port or starboard.
a
b
Loosen the end bolt (a) used to secure the cylinder to the drive unit mount. Insert the
rod retaining assembly (b) (end plate) and retighten this bolt. Secure the feedback rod
to the end plate using the two washers and cap nut provided. Adjust the location of the
LF3000 Linear Feedback to allow full travel of the hydraulic cylinder without causing
the endplate of the LF3000 hitting the end of the cylinder. Check that the outboard
motor can be tilted freely. Tighten all nuts and the mounting bracket.
20220745A
1
