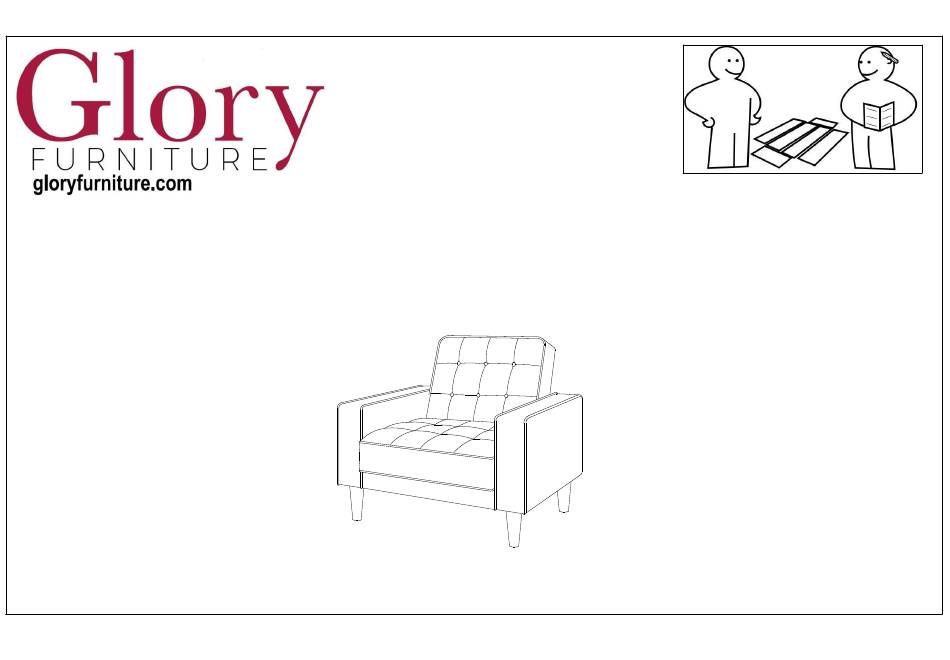

- Page 1 Attention: Two people are required for assembly and lifting unit. ASSEMBLY INSTRUCTION Page : 1 OF 9...
- Page 2 ASSEMBLY PART & HARDWARE LIST LEFT ARM (L) (1PC) RIGHT ARM (R) (1PC) SEAT PANEL & SEAT CUSHION (1PC) LEG (4PCS) 8PCS 8PCS 5/16 x 80mm Spring Washer 5/16 1 : 1 8PCS 8PCS 5/16 x 12mm Flat Washer 5/ 16 x 22mm T Spanner Page : 2 OF 9 gloryfurniture.com...
-
Page 3: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1. For this step lay the unit on its back. Open the cover cloth remove the legs and hardware. #BOX 1 BOTTOM HARDWARE #BOX 2 Page : 3 OF 9 gloryfurniture.com... - Page 4 ASSEMBLY INSTRUCTION STEP 2. Push back upward. PUSH Page : 4 OF 9 gloryfurniture.com...
- Page 5 ASSEMBLY INSTRUCTION STEP 3. Attach 5/16 x 80mm (A) (8pcs) to the Left Arm (L) (2) and Right Arm (R) (3). Attach Legs (4) (4pcs) to the Left Arm (L) (2) and Right Arm (R) (3). Legs should be tightened. A-5/16 x 80mm 8PCS LEG (4PCS)
- Page 6 ASSEMBLY INSTRUCTION STEP 4. Attach the Left Arm (R) (3) to Seat Panel and Seat Cushion (1). Use Spring Washer 5/16 (B) (4pcs), Flat Washer 5/ 16 x 22mm (C) (4pcs), 5/16 x 12mm (D) (4pcs) and T Spanner (E) to fix. B-Spring Washer 5/16 4PCS C-Flat Washer 5/ 16 x 22mm...
- Page 7 ASSEMBLY INSTRUCTION STEP 5. Attach the Left Arm (L) (2) to Seat Panel and Seat Cushion (1). Use Spring Washer 5/16 (B) (4pcs), Flat Washer 5/ 16 x 22mm (C) (4pcs), 5/16 x 12mm (D) (4pcs) and T Spanner (E) to fix. B-Spring Washer 5/16 4PCS C-Flat Washer 5/ 16 x 22mm...
- Page 8 ASSEMBLY INSTRUCTION STEP 7. STEP 6. unzip Open the zip and pull the legs out. Re-zip when leg Take a Cover Cloth and closed with velcro. pulled out. Page : 8 OF 9 gloryfurniture.com...
- Page 9 ASSEMBLY INSTRUCTION STEP 8. 1- Push 2- Put Down Push and put down. Page : 9 OF 9 gloryfurniture.com...
