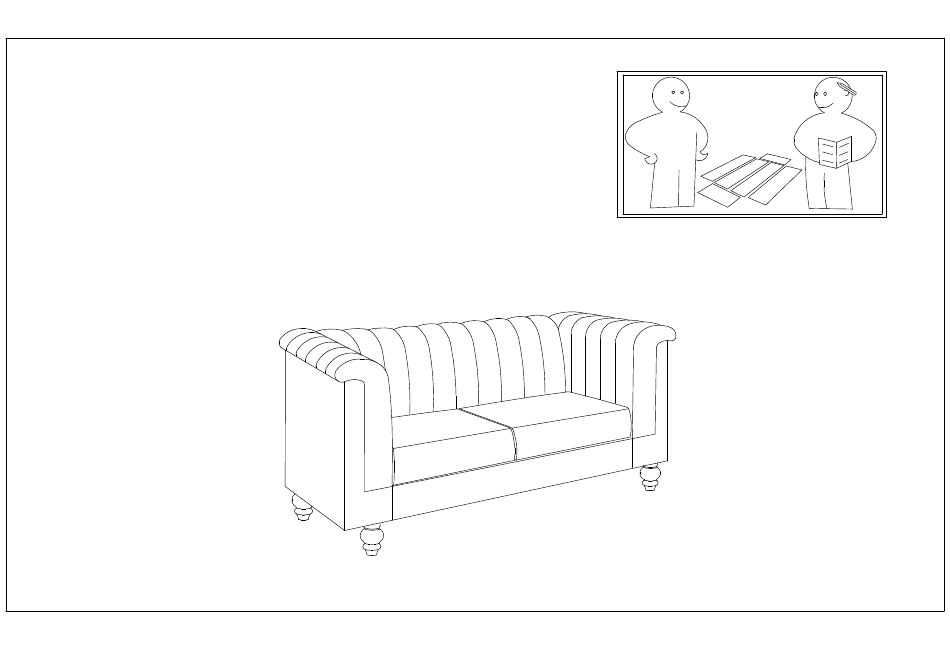

- Page 1 ASSEMBLY INSTRUCTION Attention: Two people are required for assembly and lifting unit. Page : 1 OF 7...
- Page 2 ASSEMBLY PART FRONT RAIL (1PC) SEAT PANEL SUPPORT (1PC) LEFT ARM (1PC) RIGHT ARM (1PC) LEG (4PCS) SEAT PANEL (1PC) SEAT CUSHION (2PCS) 4PCS Allen Key Plastic Washer M10 x 40mm BACK REST (1PC) Page : 2 OF 7...
-
Page 3: Box Opening
BOX OPENING Box Opening 1 Please remove all the part from box. HARDWARE x4PCS #Box 1 x2pcs Page : 3 OF 7... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1. Hook on the Back Rest (H) into Left Arm (D) and Right Arm (E) securely. Page : 4 OF 7... - Page 5 ASSEMBLY INSTRUCTION STEP 2. Slightly lossen the four bolts using Allen Key without removing the bolts completely from both Side Arms (D and E). Hook on Front Rail (A) hooks into loosen bolts, once placed tighten and secure all four bolts with Allen Key (I). Page : 5 OF 7...
- Page 6 ASSEMBLY INSTRUCTION STEP 3. STEP 4. Hook on and secure Seat Panel Support (B) to the two Lay the Seat Panel (C) on top of units frame. metal slots on both Front Rail (A) and Back Rest (H). SEAT PANEL SUPPORT (1PC) Page : 6 OF 7...
- Page 7 ASSEMBLY INSTRUCTION STEP 5. STEP 6. For this step lay the unit on its back. Attach the Seat Cushion(F)(2PCS). Attached the Leg (G) (4pcs) to the four corners of the sofa. Legs should be tightened. LEG (4PCS) 4PCS Plastic Washer M10 x 40mm Page : 7 OF 7...
