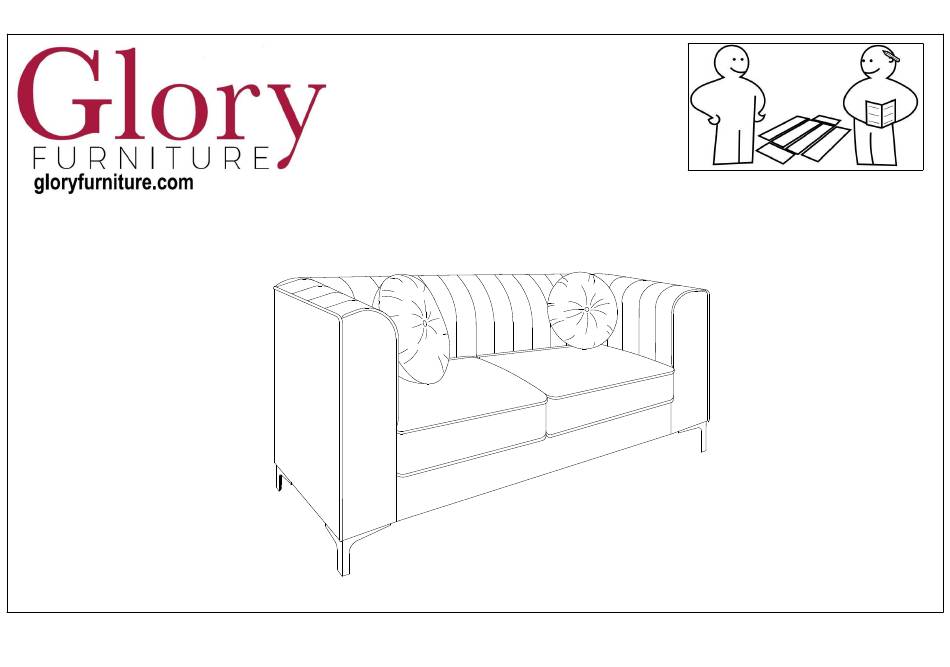

- Page 1 Attention: Two people are required for assembly and lifting unit. ASSEMBLY INSTRUCTION Page : 1 OF 4...
- Page 2 ASSEMBLY PART BACK REST LEFT ARM (L) RIGHT ARM (R) LEG (4PCS) SEAT PANEL SEAT PANEL FRONT RAIL SUPPORT HARDWARE DESCRIPTION Allen Key 8PCS 20mm Bolt SEAT CUSHION (2PCS) PILLOW (2PCS) Flat Washer 8PCS Page : 2 OF 4 gloryfurniture.com...
- Page 3 ASSEMBLY INSTRUCTION Hook on the Back Rest (1) into Left Arm (2) and Right (3) securely. STEP 1. STEP 3. STEP 2. Slightly lossen the four bolts using Allen Key (A) without removing the bolts completely Hook on and secure SEAT PANEL SUPPORT (7) to the two metal from both Side Arms (2 and 3).
- Page 4 ASSEMBLY INSTRUCTION STEP 4. STEP 5. For this step lay the unit on its back. Attach LEGS (4) to the four corners of the unit. Legs are to be attached using Bolt (B), Lay the SEAT PANEL (6) on top of units frame. Washer (C) using Allen Key (A).
