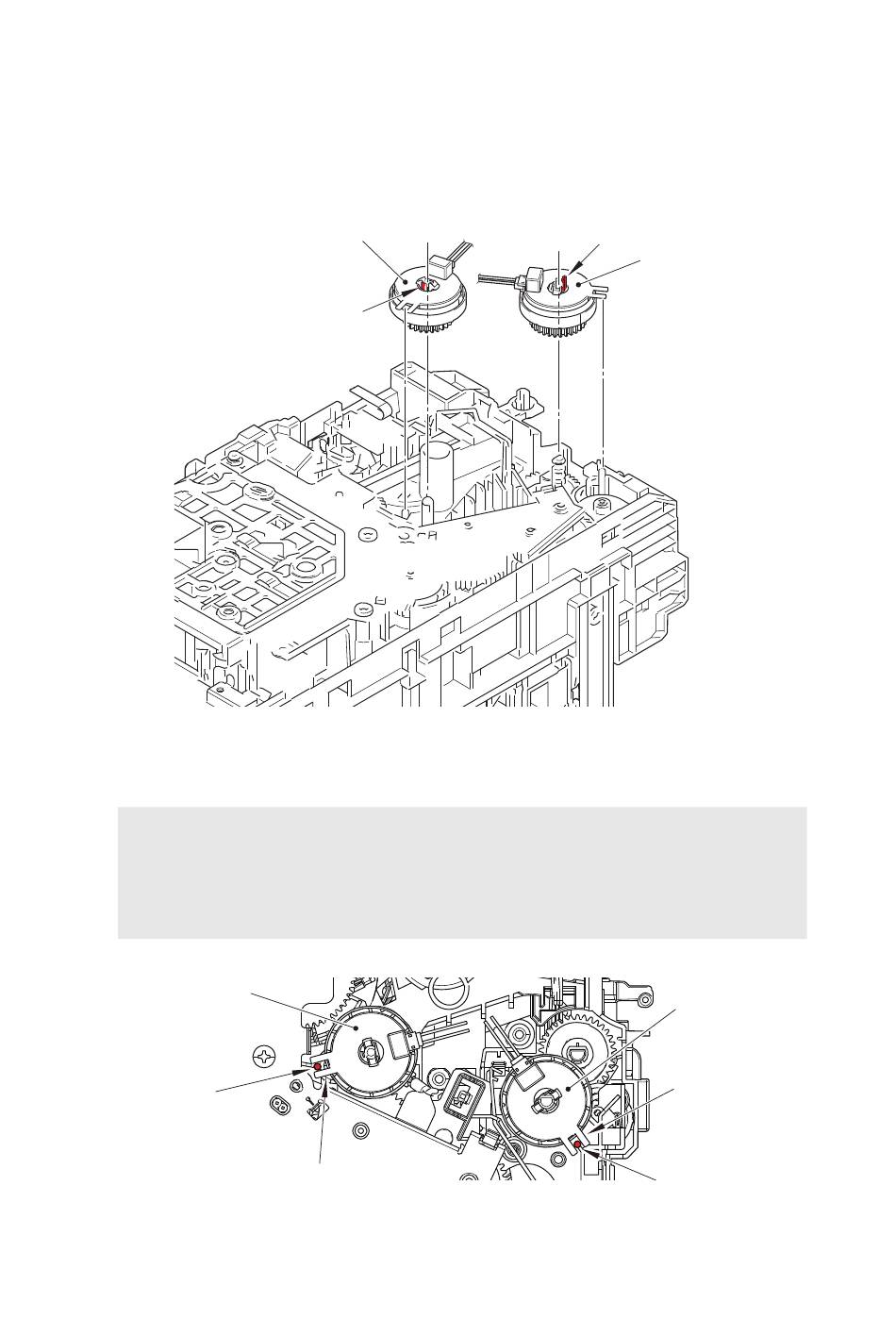

9.19 T1 Clutch and Registration Clutch

(1) Release the T1 clutch harness (BL) and the registration clutch harness (WH) from the
securing fixtures.
(2) Release the hook, and remove the T1 clutch.
(3) Release the hook, and remove the registration clutch.
<Upper side of frame L>
Harness routing: Refer to
Assembling Note:
• When securing the T1 clutch harness and the registration clutch harness, check that
there is no harness slack.
• Attach the rotation stoppers of the T1 clutch and registration clutch by engaging them
with the pins of the machine.
Registration clutch
Pin
Registration clutch
Hook
"4. Left side of the
Rotation stopper
Fig. 3-38
machine".
Fig. 3-39
3-38
Hook
T1 clutch
<Front side>
T1 clutch
Rotation stopper
Pin
