Mounting instructions gabion basket and seat plate
for type FILIUS, DMZ411, DMZ412 und DMZ420
The following instructions include all information necessary for the assembly and operation of this
gabion basket. To avoid any misunderstanding, we advise you to read these instructions carefully
and then keep them for later reference.
Non- observation of mounting instructions can result in personal
injuries or damage to property.
Please note that if these instructions are not observed, the manufacturer cannot
Caution
assume any liability or guarantee.
Always follow the safety regulations.
Should you not understand any part of these mounting instructions, please
contact your MAY dealer.

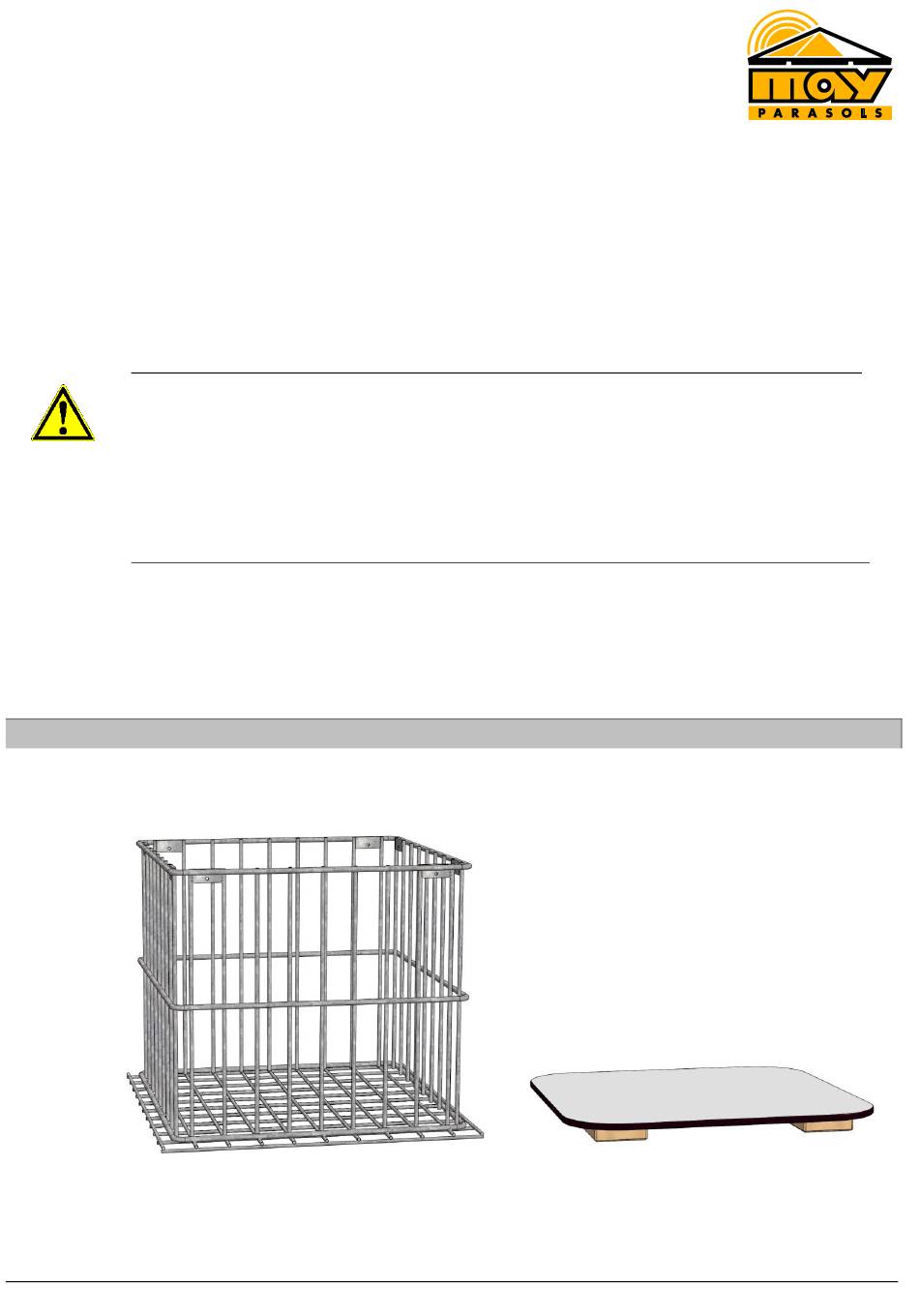

Scope of delivery
Gabion basket
steel, hot dip galvanized
art. no. 360098
Stand 50-0850
Seat plate
HPL material, grey decor,
4 screws included
art. no. 360099
English
page 1 of 10
Advertisement
Related Manuals for MAY Parasols FILIUS
Summary of Contents for MAY Parasols FILIUS
- Page 1 Mounting instructions gabion basket and seat plate for type FILIUS, DMZ411, DMZ412 und DMZ420 The following instructions include all information necessary for the assembly and operation of this gabion basket. To avoid any misunderstanding, we advise you to read these instructions carefully and then keep them for later reference.
- Page 2 Assembly 1. Loosen the clamping lever of the base clamp so that you can carry out point 2. clamping lever 2. Loosen the M8 hex socket head screw using a 6 mm hex key. Turn the screw anti-clockwise, two turns are sufficient. M8 hex socket head screw 6 mm hex key Stand 50-0850...
- Page 3 3. Align the base clamp as shown. 45° 45° base clamp 4. Fix the M8 hex socket head screw with the 6 mm hex key. M8 hex socket head screw 6 mm hex key Stand 50-0850 English page 3 of 10...
- Page 4 5. Before assembly, the parasol must be erected, opened and aligned. You will find the detailed instructions in the manual „MAY FILIUS DMZ118 Operating instructions“. If the parasol is not fully anchored, it can cause serious or even fatal injury.
- Page 5 8. Fill the gabion baskets with the stones. A falling parasol can cause serious or even fatal injury. If the pedestal is not equipped with sufficient weight according to the size of the parasol, the parasol my fall and cause injuries. Danger ...
- Page 6 10. Pre-drilling: Drill 4 holes in the wooden slats using a Ø 2.5 mm drill bit. Drill through the holes in the metal fastening tabs in the long side of the wooden moulding. 11. Use a torx 20 to fix the seat plate with the 4 screws delivered. There is one screw for each corner.
- Page 7 Do-It-Yourself seating Stand 50-0850 English page 7 of 10...
- Page 8 Stand 50-0850 English page 8 of 10...
- Page 9 Stand 50-0850 English page 9 of 10...
- Page 10 Stand 50-0850 English page 10 of 10...
