MAY Parasols DMZ208 Mounting Instructions

Full-frame pedestal with screw-on tube, for type mezzo / dacapo / filius

Hide thumbs

page of 11

/ 11
Bookmarks

Quick Links

Download this manual

Mounting instructions DMZ208 and DMZ008

Full-frame pedestal with screw-on tube, for type

FILIUS

The following instructions include all information necessary for the assembly and operation of this

frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully

and then keep them for later reference.

Non- observation of mounting instructions can result in personal injuries

or damage to property.

Please note that if these instructions are not observed, the manufacturer cannot

Caution

assume any liability or guarantee.

 Always follow the safety regulations.

 Should you not understand any part of these mounting instructions, please

contact your MAY dealer.

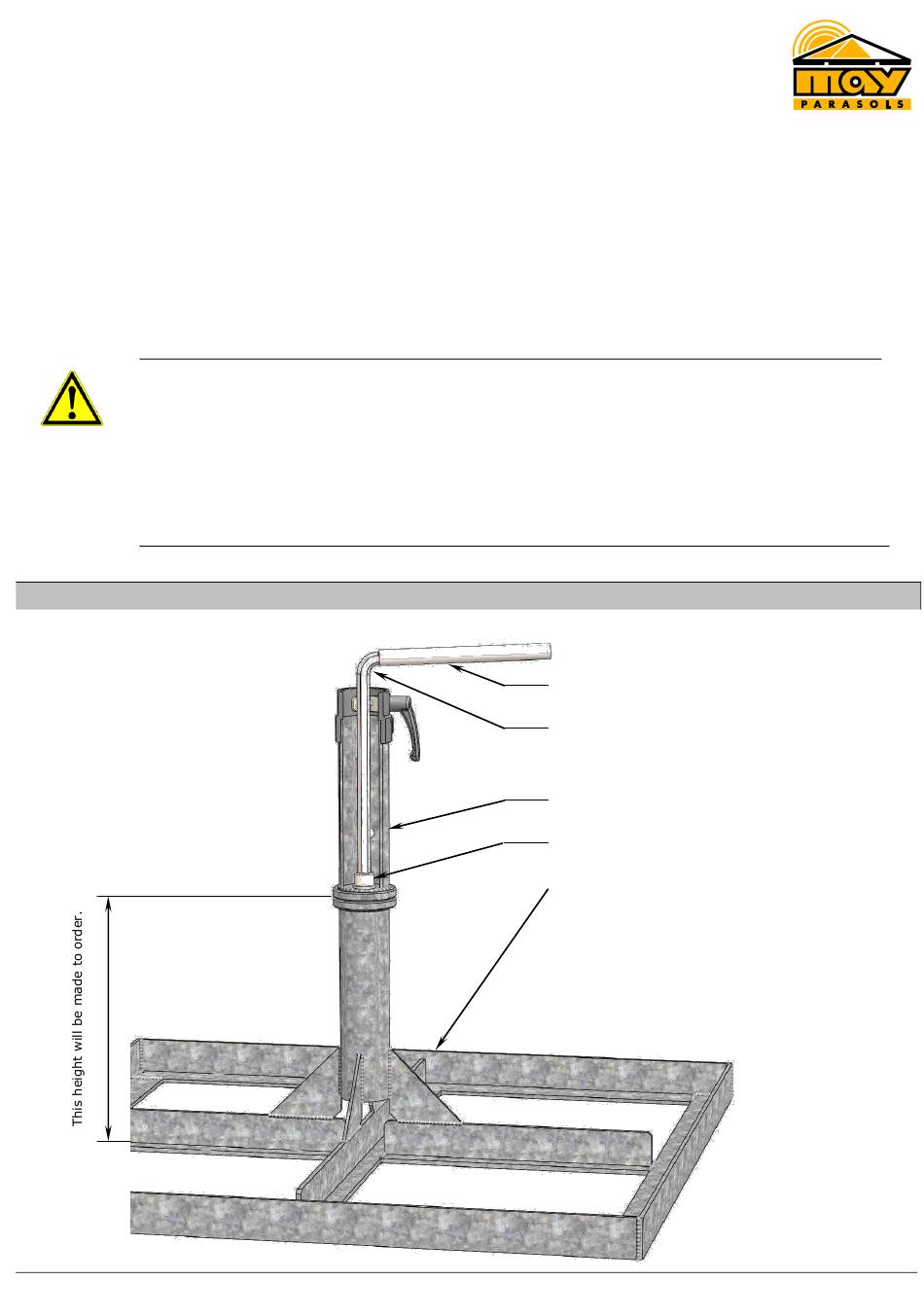

Diagram showing mounting materials and tools

Stand 36-2260

extension for 14 mm hex key

14 mm hex key

bore hole for theft and anti-twisting lock

hex socket head screw M16 x 35 mm + 16 mm

serrated lock washer

frame pedestal

English

MEZZO / DACAPO /

page 1 of 7

Need help?

Do you have a question about the DMZ208 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAY Parasols DMZ208

Page 1 Mounting instructions DMZ208 and DMZ008 Full-frame pedestal with screw-on tube, for type MEZZO / DACAPO / FILIUS The following instructions include all information necessary for the assembly and operation of this frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully and then keep them for later reference.
Page 2 wooden planking concrete foundation Stand 36-2260 English page 2 of 7...
Page 3 Screw on upper part 1. Screw the upper anchor tube onto the lower tube (cf. illus.). Slip the 16mm washer on the M16x45mm socket head screw and tighten, using the enclosed 14mm hex key. socket head screw extension washer 14mm hex key Screws that are not tightened correctly will work loose.
Page 4 4. When setting the DMZ208 / DMZ008, make sure that the frame pedestal of the bottom component is (almost) flush (-3 mm) with the terrace floor surface. Avoid tripping hazard. To ensure that the top winter plate (needed as a protective cover in winter when the upper anchor tube has been removed) is flush, the bottom component of SZ208 must be set 3 mm below the terrace surface.
Page 5  Remove the base clamp on the upper anchor tube.  Use a spirit level to align the DMZ208 / DMZ008. (cf. Illustration). apply the spirit level on two sides 90°...
Page 6 concrete slab Storage/Dismounting 1. Lift the parasol out of the anchor tube. 2. Remove the upper anchor tube completely by screwing it off. 3. Screw the top plate onto the lower anchor tube. (cf. illus.) The thread can get damaged. When the top plate is not on the lower anchor tube, sand may get washed into the flanks of the thread.
Page 7: Project Management
4. If you have two or more parasols, it is advisable to mark them and their accessories (e.g. with metal-stamped numerals or using a waterproof marker) as soon as they have been dismounted (e.g. for winter storage). Marking saves a lot of time and helps to keep things in order. If clearly marked, each parasol can easily be assigned to its proper location and re- erected parallel to the wall of the house or next to the others.
Page 8 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 40x40x5 cm. Art. no. DMZ208: 2 pieces, screw-off upper part, fits for pole ø 55 mm upper part, standard length 25 cm art.
Page 9 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of DMZ208 (200390) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate (due to space constraints, the illustration is cut).
Page 10 Full frame pedestal without placement hinge DMZ008 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 40x40x5 cm. Art. no. DMZ008: 2 pieces, screw-off upper part, fits for pole ø 55 mm upper part, standard length 25 cm art.
Page 11 90 mm max. 170 mm In case the „height of the lower part“ needs to be larger than 170 mm, option DMZ208 must be used. Customized versions with adjustable feet increase the height about approximately 25 mm.

This manual is also suitable for:

Dmz008
