Mounting instructions SZ208 / SZ008

Full-frame pedestal with screw-on tube, for type SCHATTELLO

The following instructions include all information necessary for the assembly and operation of this

frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully

and then keep them for later reference.

Non- observation of mounting instructions can result in personal injuries

or damage to property.

Please note that if these instructions are not observed, the manufacturer cannot

Caution

assume any liability or guarantee.

 Always follow the safety regulations.

 Should you not understand any part of these mounting instructions, please

contact your MAY dealer.

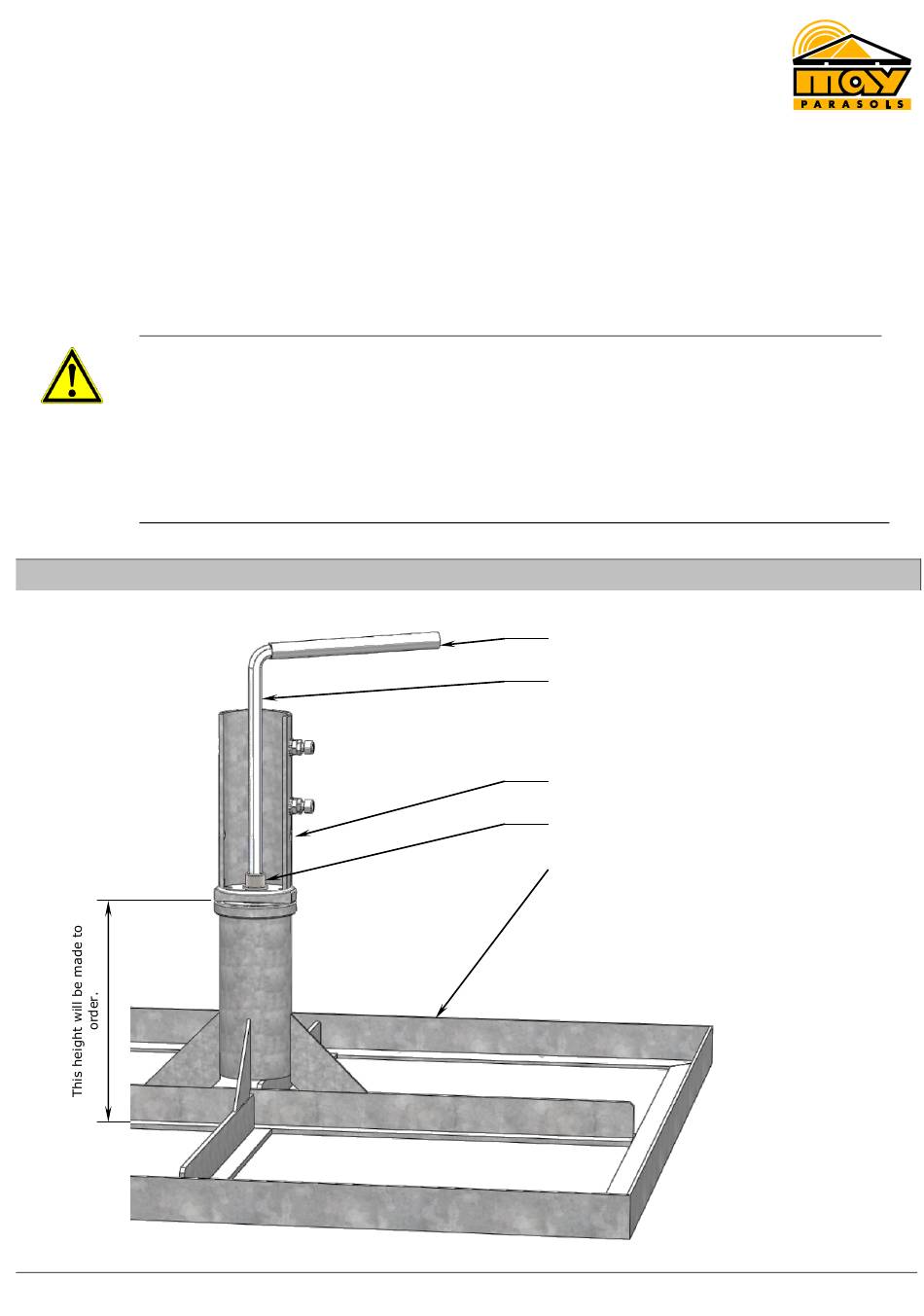

Diagram showing mounting materials and tools

Stand 36-2244

extension for 14 mm hex key

14 mm hex key

bore hole for theft and anti-twisting lock

hex socket head screw M16 x 35 mm + 16 mm

serrated lock washer

frame pedestal

English

page 1 of 7

Need help?

Do you have a question about the SZ208 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAY Parasols SZ208

Page 1 Mounting instructions SZ208 / SZ008 Full-frame pedestal with screw-on tube, for type SCHATTELLO The following instructions include all information necessary for the assembly and operation of this frame pedestal. To avoid any misunderstanding we advise you to read these instructions carefully and then keep them for later reference.
Page 2 wooden planking concrete foundation Stand 36-2244 English page 2 of 7...
Page 3 Screw on upper part 1. Screw the upper anchor tube onto the lower tube (cf. illus.). Slip the 16mm washer on the M16x30mm socket head screw and tighten, using the enclosed 14mm hex key. socket head screw washer extension 14mm hex key Screws that are not tightened correctly will work loose.
Page 4 10 cm gradation. These can be adjusted in height on location with the help of inside spacers. 4. When setting the SZ208 / SZ008, make sure that the frame pedestal of the bottom component is (almost) flush (-3 mm) with the terrace floor surface.
Page 5  Use a spirit level to align the SZ208 / SZ008. (cf. Illustration). apply the spirit level on two sides 90°...
Page 6 concrete slab Storage/Dismounting 1. Lift the parasol out of the anchor tube. 2. Remove the upper anchor tube completely by screwing it off. 3. Screw the top plate onto the lower anchor tube. (cf. illus.) The thread can get damaged. When the top plate is not on the lower anchor tube, sand may get washed into the flanks of the thread.
Page 7: Project Management
4. If you have two or more parasols, it is advisable to mark them and their accessories (e.g. with metal-stamped numerals or using a waterproof marker) as soon as they have been dismounted (e.g. for winter storage). Marking saves a lot of time and helps to keep things in order. If clearly marked, each parasol can easily be assigned to its proper location and re- erected parallel to the wall of the house or next to the others.
Page 8 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 50 x 50 x 5 cm. art. no. SZ208: 2 pieces, screw-off upper part, fits for pole ø 76 mm upper part art.
Page 9 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of SZ208 (200386) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate.
Page 10 Full frame pedestal without placement hinge SZ008 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 50 x 50 x 5 cm. art. no. SZ008: 2 pieces, screw-off upper part, fits for pole ø 76 mm upper part art.
Page 11 160 mm required height lower part:______mm In case the „height of the lower part“ needs to be larger than 160 mm, option SZ208 must be used. Customized versions with adjustable feet increase the height about approximately 25 mm. When ordering, please fill in the fields below:...
Page 12 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 50 x 50 x 5 cm. art. no. SZ208: 2 pieces, screw-off upper part, fits for pole ø 76 mm upper part art.
Page 13 This order sheet must be filled out completely and supplied to the MAY company before production. Lower part of SZ208 (200386) with top plate for winter protection. All bases are custom-made. When ordering, please state the total height required, including winter top plate.
Page 14 Full frame pedestal without placement hinge SZ008 This order sheet must be filled out completely and supplied to the MAY company before production. For 1 set of standard concrete slabs 50 x 50 x 5 cm. art. no. SZ008: 2 pieces, screw-off upper part, fits for pole ø 76 mm upper part art.
Page 15 200 mm required height lower part:______mm In case the „height of the lower part“ needs to be larger than 160 mm, option SZ208 must be used for stability reasons. Customized versions with adjustable feet increase the height about approximately 25 mm.
