INSTALLATION INSTRUCTIONS:
HARLEY-DAVIDSON 24+ TOURING
VO2 X AIR INTAKE
PART# 41100, 41101, 71100
Congratulations, you have purchased the finest air intake available for your motorcycle. Your Vance & Hines air intake is de-
signed and crafted for performance, quality and style. Please follow the instructions below, check air intake kit for missing or
damaged parts and if you need any assistance please contact our technical support line (562) 921-7461.

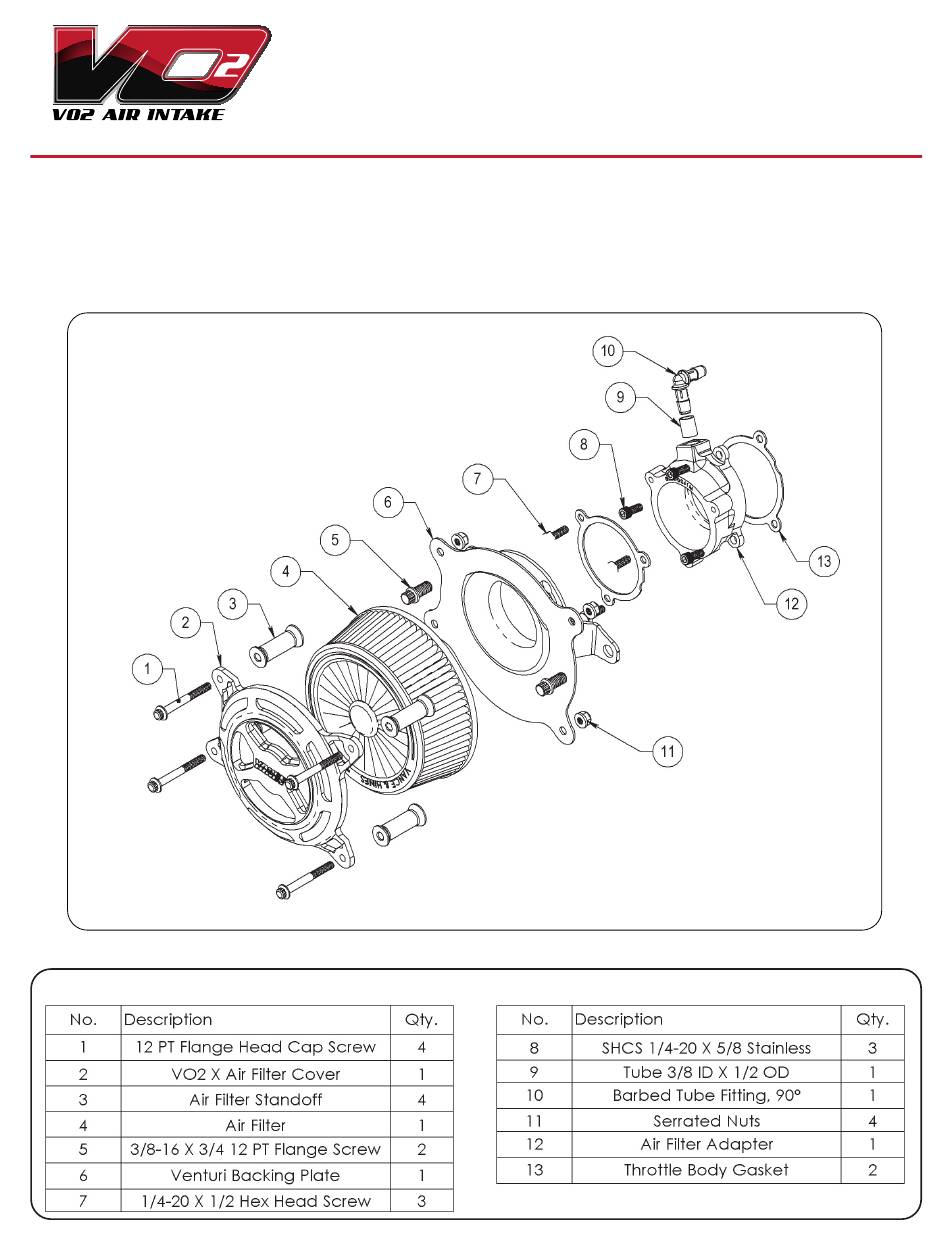

PARTS LIST
Rev A
Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the 41100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vance and hines 41100

  • Page 1 HARLEY-DAVIDSON 24+ TOURING VO2 X AIR INTAKE PART# 41100, 41101, 71100 Congratulations, you have purchased the finest air intake available for your motorcycle. Your Vance & Hines air intake is de- signed and crafted for performance, quality and style. Please follow the instructions below, check air intake kit for missing or damaged parts and if you need any assistance please contact our technical support line (562) 921-7461.
  • Page 2 TOOLS REQUIRED 1/4” or 3/8” Drive Ratchet 3/16” Allen 7/16” Hex Socket 5/16” 12 Point Socket Inch-Pound Torque Combination Wrench Wrench 5/16”, 7/16” Loctite 243 (blue) Page 2 of 4 D538IN Rev D...
  • Page 3 OEM SYSTEM REMOVAL Begin by removing the OE air filter cover. On some models the cap screw may be covered by a vanity cover. Carefully pull this cover off carefully as it is held on by Velcro. This will expose the filter element, which is then removed by twisting the filter and pulling rearward to remove filter from intake tube.
  • Page 4 Emissions Notice: In California, in order to meet Air Resources Board emissions requirements, certain aftermarket part applications have been identified as replacements, and others have received ARB Executive Orders. All other emissions related aftermarket parts are for competition use only. A list of replacement parts and EO parts, and corresponding fitment is provided at vanceandhines.com/california.

This manual is also suitable for:

4110171100
