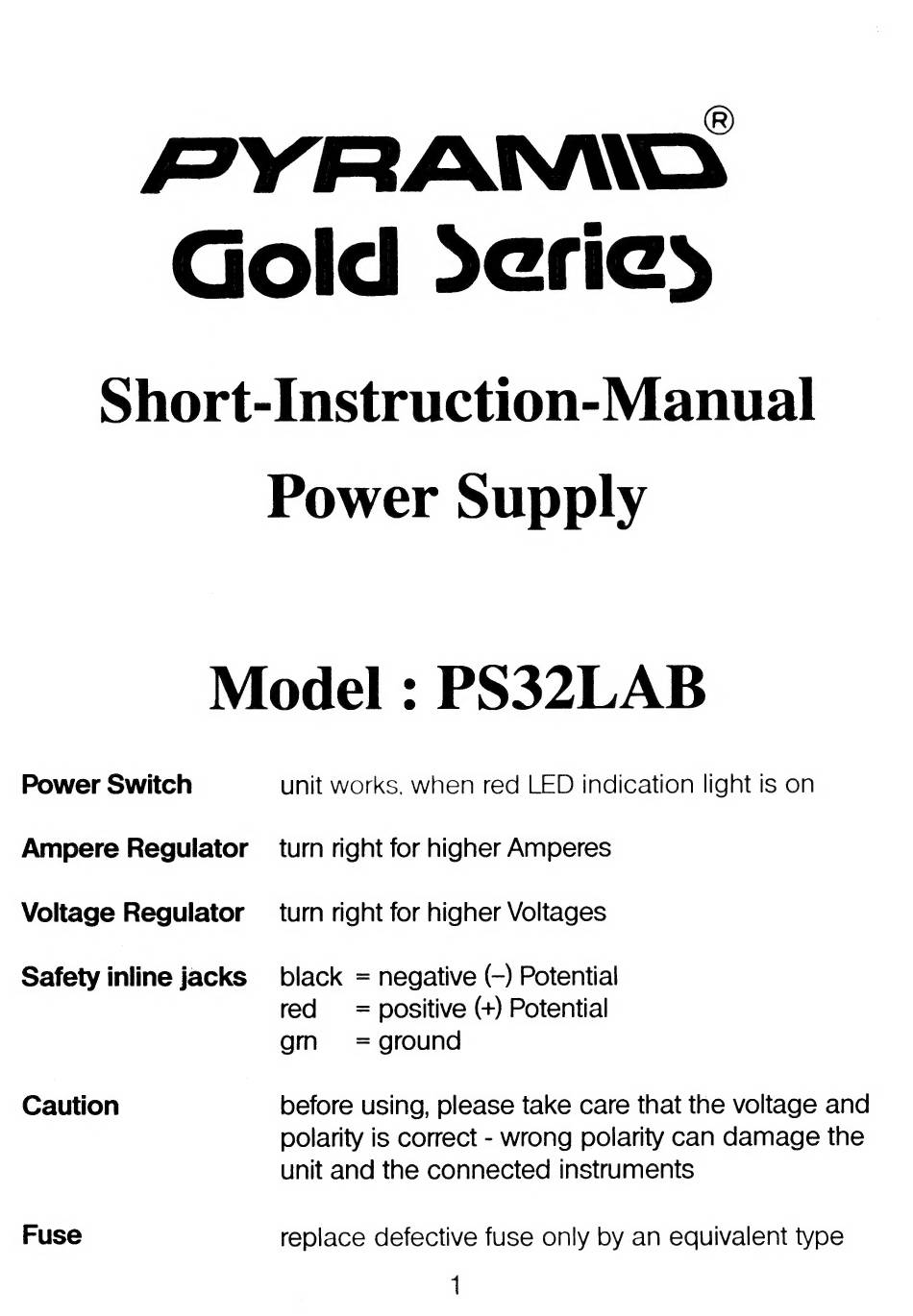

PYRANWO
Gold Series
Short-Instruction-Manual
Power Supply

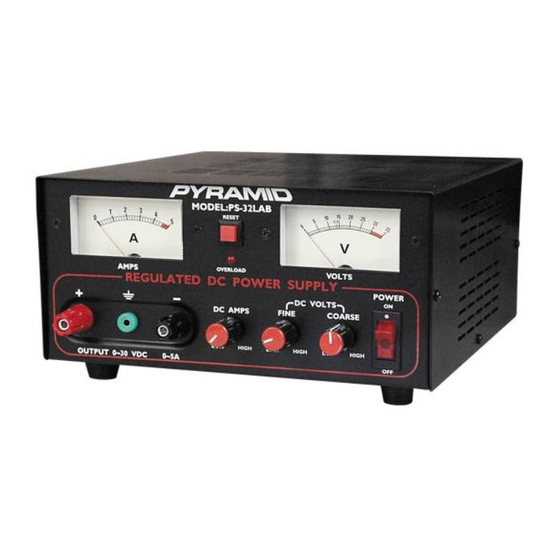

Model : PS32LAB
Power Switch
Ampere Regulator
Voltage Regulator
Safety inline jacks
Caution
Fuse
unit works. when red LED indication light is on
turn right for higher Amperes
turn right for higher Voltages
black = negative (-) Potential
red
= positive (+) Potential
gm
= ground
before using, please take care that the voltage and
polarity is correct - wrong polarity can damage the
unit and the connected instruments
replace defective fuse only by an equivalent type
1
