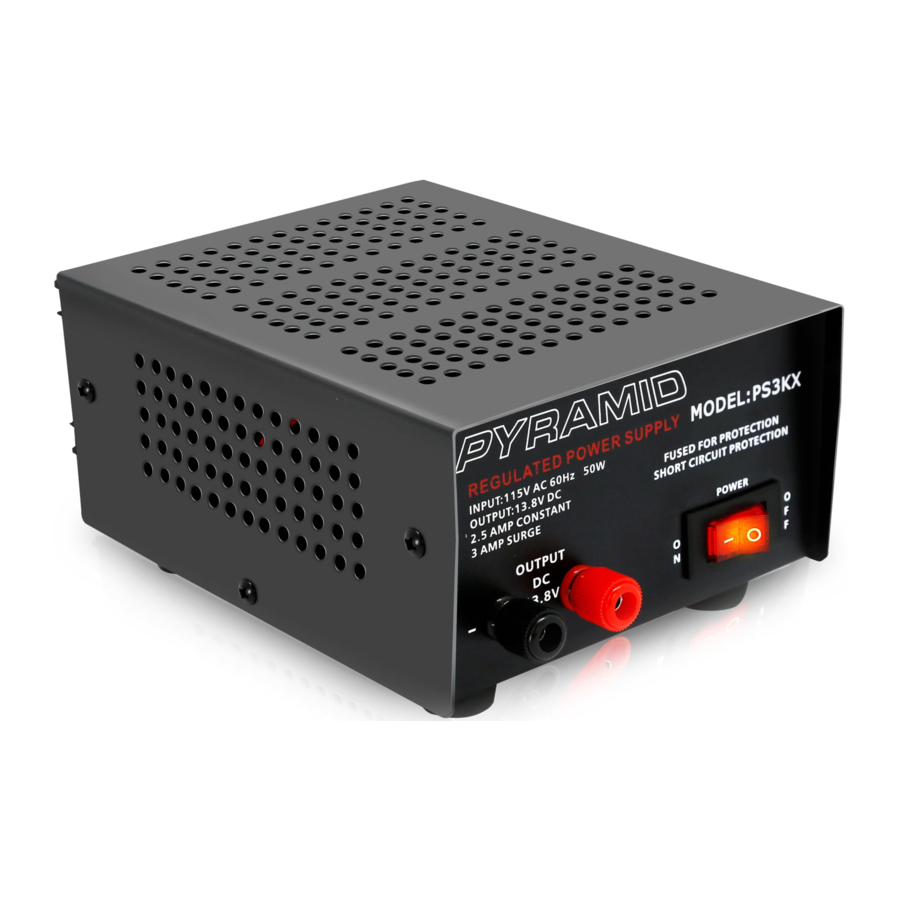

Pyramid Gold Series, PS-3KX, PS-4KX, PS-7KX, PS-8KX Manual

Also See for Gold Series:

Table of Contents

GENERAL SPECIFICATIONS

ELECTRICAL:
GENERAL SPECIFICATIONS - ELECTRICAL

(A-6) DESIGN LINEAR TYPE.

(A-7) OPERATING TEMPERATURE 0 TO +40 DEG C.

(A-8) STORAGE TEMPERATURE: - 2S TO +70 DEG C.

information NOTE·: INPUT AT 115VAC AND OUTPUT AT CONT. CURRENT

MECHANICAL:
GENERAL SPECIFICATIONS - MECHANICAL

CIRCUIT DIAGRAM

CIRCUIT ARE SUBJECT TO CHANGE WITHOUT NOTICE

INSERT AC POWER PLUG INTO A 110V VOLT AC OUTLET.
CONNECT THE POWER CORD OF YOUR EQUIPMENT (13.5V - 14 1VDC) TO THE OUTPUT BINDING POST TERMINALS ON THE FRONT OF THE UNIT BE SURE THAT POLARITY IS CORRECT. THE RED POSITIVE (+) TERMINAL AND BLACK NEGATIVE (-) TERMINAL ARE MARKED. REVERSAL OF POLARITY. MAY DAMAGE YOUR EQUIPMENT.
TURN SWITCH TO "ON". RED LIGHT IN SWITCH WILL ILLUMINATE
THE INPUT POWER IS PROTECTED BY THE FUSE WHICH IS LOCATED AT THE REAR OF THE UNIT AND CAN BE REPLACED BY UNSCREWING THE FUSE HOLDER IF THE FUSE IS BURNT OUT. DO NOT USE A FUSE LARGER THAN.. AMPS USE OF HEAVIER FUSE MAY RESULT IN DAMAGING TO THIS UNIT (.. SEE NOTE)
THIS UNIT HAS ELECTRONIC OVERLOAD PROTECTION WITH INSTANT AUTOMATIC RESET FUNCTION IF OUTPUT IS OVERLOADED. THE OUTPUT POWER WILL AUTOMATICALLY SHUT OFF. RELEASE POWER CORD Of YOUR EQUIPMENT FROM THE OUTPUT TERMINALS AND CHECK THE ACTUAL POWER RATING OF YOUR EQUIPMENT. THIS UNIT WILL AUTOMATICALLY RESET INSTANTLY
OVER TEMPERATURE PROTECTION CIRCUITRY IS USED IN PS-7KX/BKX TO PREVENT OVERHEAT DAMAGE UNIT WI LL BE SHUT DOWN MINUTES AFTER 15 MINUTES( M IN. ) AT 100% RATED LOAD.

25 MINUTES( MIN.) AT 00% RATED LOAD.

NOTE
PS-3KX: 1. 5 AMP
PS-4KX: 1. 0 AMP
PS-7KX: 1.5 AMP
PS-SKX: 1.5 AMP

DO NOT USE WITH EQUIPMENT REQUIRING MORE THAN RATING AMPS
DO NOT USE OUTDOORS. DO NOT EXPOSE UNIT TO RAIN. MOISTURE. WATER OR ANY OTHER LIQUIDS
DO NOT REMOVE COVER IN ANY CASE. RETURN TO DEALER FOR REPAIR IF DAMAGED.
THIS UNIT HAS A SPECIAL BUILT-IN FEATURE THAT WILL SHUT THE UNIT DOWN IF MARKED AMPERAGE IS EXCEEDED. THIS WILL AVOID BURN-OUT OF YOUR EQUIPMENT AND OF UNIT. IF UNIT DOES CONSISTENTLY SHUTDOWN. THIS MEANS YOU ARE DRAWING TOO MUCH AMPERAGE. RETURN UNIT TO PLACE OF PURCHASE AND UPGRADE TO NEXT AVAILABLE UNIT OFFERING HIGHER AMPERAGE. PLEASE DO NOT BYPASS OR ALTER THIS CIRCUIT AS IT IS THERE TO PROTECT YOU. ANY ALTERATION OR MISUSE WILL VOID YOUR WARRANTY.
