- Page 1 E-SCOOTER USER MANUAL RS 900 / RS 1000...
-
Page 2: Table Of Contents
Content 1 Introduction................................4 2 Components and operating elements ........................5 2.1 Vehicle............................5 2.2 Handlebars & display........................5 3 Safety instructions..............................6 3.1 Symbols used for safety instructions..................6 3.2 Basic safety instructions for the driver..................7 3.3 Safe driving..........................8 3.4 Safe steering..........................8 3.5 Safe braking. - Page 3 Content 11 Ride an e-scooter..............................18 11.1 Switching the electrical system on/off..................19 11.2 Start up............................19 11.3 Brakes............................19 11.4 Selecting the speed level......................19 11.5 Display change of direction....................20 11.6 Operate the throttle lever.......................20 11.7 Give warning signs........................20 11.8 Parking............................20 11.9 Switch on the light........................20 12 Wear and tear...............................21 13 Transportation ..............................21...
-
Page 4: Introduction
1. Introduction Dear customer, Thank you for choosing a Red Bull Racing e-scooter. To begin with, we would like to give you some important information about your new e-scooter. This will help you to make better use of the technology and avoid risks. -
Page 5: Components And Operating Elements

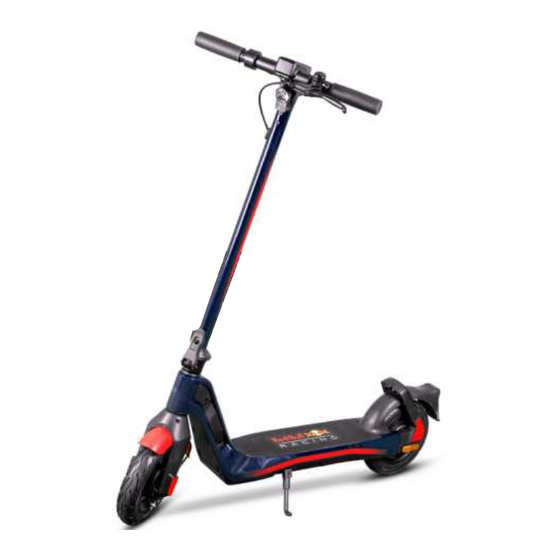

2. Components and operating elements 2.1 Vehicle Handlebar column Quick release Front mudguard Front fork Drum brake Front wheel Charging socket Footboard Side stand Side cladding Rear mudguard Reflector Rear wheel motor Rear wheel 2.2 Handlebar & Display 1 brake lever for Combi brake Bell Handle... -
Page 6: Safety Instructions
3. Safety instructions Read all warnings and instructions in this user manual carefully before operating the e-scooter. Always keep the operating instructions close to your e-scooter so that they are available at all times. If you pass your e-scooter on to third parties, hand over these operating instructions with it. 3.1 Symbols used for Safety instructions In this guide you will find five different types of notes. -
Page 7: Basic Safety Instructions For The Driver
3.2 Basic safety instructions for the driver Always observe and follow the following instructions. Failure to do so may result in serious injury in each individual case. ▶ First familiarize yourself with the operation and special handling of the e-scooter away from road traffic in an area where there are no other road users, pedestrians or possible obstacles. -
Page 8: Safe Driving
▶ Adapt your driving style to the requirements on wet or slippery roads. Drive more slowly and brake carefully and early, as the braking distance is significantly longer. ▶ Adapt your speed to your riding ability. ▶ Please note that you are exposed to particular dangers as a road user with the e-scooter. ▶... -
Page 9: Safe Braking
3.5 Safe Braking Avoid sudden and very hard braking. If wheels lock, this could lead to falls and accidents. Modern braking systems can have a significantly stronger and different braking effect than usual! Practice using the brakes in a safe, untraveled area before you set off! Bear in mind that the effect of Braking in the wet and on slippery surfaces can be dangerously different from what you are used to. -
Page 10: Legal Regulations And Intended Use
4. Legal provisions and intended use The information on the legal provisions is based on German law. If you wish to use the e-scooter in other countries,inform yourself in advance about the legal practice that applies to you there and act accordingly. Before you take part in road traffic, find out about the national regulations that apply to you. -
Page 11: Intended Use
4.5 Intended use The maximum permissible total weight is 115 kg. This is made up of the weight of the vehicle, the driver and the luggage. Intended use also includes compliance with the operating, maintenance and servicing conditions. These can be found in the respective chapters below. -
Page 12: Scope Of Delivery
6. Scope of delivery ▶ E-scooter ▶ Charger with charging cable ▶ Operating instructions ▶ Document of the general operating license 7. Commissioning Your e-scooter has been carefully pre-assembled at the factory. To make transportation easier, the handlebars have been removed and placed in a transport position. To make the e-scooter ready and safe to use, the handlebars must be removed after the transport. -
Page 13: Mount The Handlebars
7.2 Mount handlebars The handlebar unit has been dismantled and enclosed for transportation reasons. Assemble it as follows: Remove the fastening and packaging material with which the handlebar is packed ▶ Place the complete handlebar unit in the correct position on the oval steering column - see illustration: ▶... -
Page 14: Charge The Battery For Initial Commissioning
1. Unlock the safety hook on the rear part of the e-scooter 2. Fold the handlebar column upwards 3. Push the black quick-release lever towards the steering column until the red safety slide visibly moves downwards. Before each ride, the quick release on the handlebar column must be correctly engaged Do not pinch any cables. -
Page 15: Before The First Journey
4. Lock the handlebars with the safety hook at the rear of the e-scooter. This is what the folded e-scooter looks like: Check that all locking levers are properly engaged To move the e-scooter when it is folded, you can lift the e-scooter by the handlebars and roll it over the front wheel. -
Page 16: Before Each Journey
▶ Lift your e-scooter first at the front, then slightly at the back and let it drop it back onto the floor from a height of about 10 cm. If you hear rattling or other unusual noises, have a specialist dealer determine the cause and rectify it before you set off. -
Page 17: Safety Instructions For The Battery
Keep the e-scooter away from heat, e.g. from strong sunlight and fire. There is a risk ▶ of explosion. In particular, do not leave the vehicle in a car parked in direct sunlight for long periods of time. This can result in very high temperatures! Do not clean the e-scooter with a high-pressure cleaner. -
Page 18: The Charging Process Itself
A defective battery must neither be charged nor continue to be used. Please note that a sudden change in temperature from cold to warm can cause condensation to form on the battery contacts. Avoid this by storing the e-scooter where you charge it. -
Page 19: Switching The Electrical System On/Off
11.1 Switching the electrical system on/off To switch on, press and hold button 8 on the display for about 2 seconds. Do not ride downhill faster than 20 km/h! This speed is reached when the motor assistance stops. Riding faster than this can lead to accidents and serious falls and injuries. To switch off, press button 8 again for approx. -
Page 20: Display Change Of Direction
11.5 Change of direction show You must indicate your intention to change direction with your hand - just like when riding a bicycle. ▶ Please note that if you take one hand off the handlebars while standing up, this will significantly impair your riding safety! Only do this if you feel confident enough to control the e-scooter. -
Page 21: Wear And Tear
12. Wear and Tear The frame, handlebar column, suspension, footboard and other safety-relevant parts such as brakes, wheels and the folding mechanism are subject to wear, which can im- pair the operational safety of these parts. If you discover bent or broken components, replace them immediately. -
Page 22: Adjust The Play In The Folding Joint Of The Steering Column
Defective or worn components on your e-scooter can lead to injuries, property damage and serious falls and injuries. Only have safety-relevant parts that are defective or worn replaced with original spare parts or parts that have been approved by the manufacturer. In some cases, this is prescribed; for other components, the manufacturer‘s warranty and guarantee usually expire if nonapproved spare parts are used ▶... -
Page 23: Lubrication
The following applies for permanently safe function and preservation of warranty claims: ▶ Check the e-scooter for damage. ▶ Have inspections carried out by a specialist dealer. ▶ Have paint damage repaired. ▶ Have defective and worn parts replaced. 14.5 Lubrication Work on the e-scooter requires specialist knowledge, special tools and experience! This also applies to apparently simple work such as lubrication. -
Page 24: Technical Data
16. Technical data RS 900 Top Speed..........20 km/h GER, 25 km/h Motor............350 watt rear wheel motor Battery type...........Li-Ion Battery capacity ........270 Wh battery Charging time ........4-5 hours tires..……..........9“ solid rubber tires GER, 9“ air tires weight..…..........14,7 kg Permissible total mass max.....…..max. 100 kg Range.............25-35 km Brakes............ -
Page 25: General Care And Cleaning Products
17.2 General care and Cleaning agents When caring for and cleaning your e-scooter, take care to protect the environment. Therefore, use biodegradable cleaning agents for care and cleaning wherever possible. Make sure that no cleaning agents enter the sewage system. 17.3 Dispose of packaging material Dispose of the packaging material of the e-scooter in the waste paper container or in the appropriate recycling garbage cans. -
Page 26: Scooter Identification
18. E-scooter identification Model: Red Bull Racing E-Scooter RS 900 / RS 1000 Enter your frame number here so that you have it to hand in the event of theft or warranty damage: Frame number: _______________________ 19. Hotline for technical questions and service contact Red Bull Racing E-Scooter customer hotline: (+49)781 - 970 570 44 Red Bull Racing E-Scooter technical hotline: (+49)781 - 970 570 45 Contact hours: Monday to Friday 9 a.m to 6 p.m. - Page 28 Elektro Mobile Deutschland GmbH Robert-Bosch-Straße 16 77656 Offenburg, Germany www.race-scooter.de Version 1 01.05.2023 These products have been designed and produced by Asia Kingston (HK) Ltd, official Red Bull Racing Licensee.
