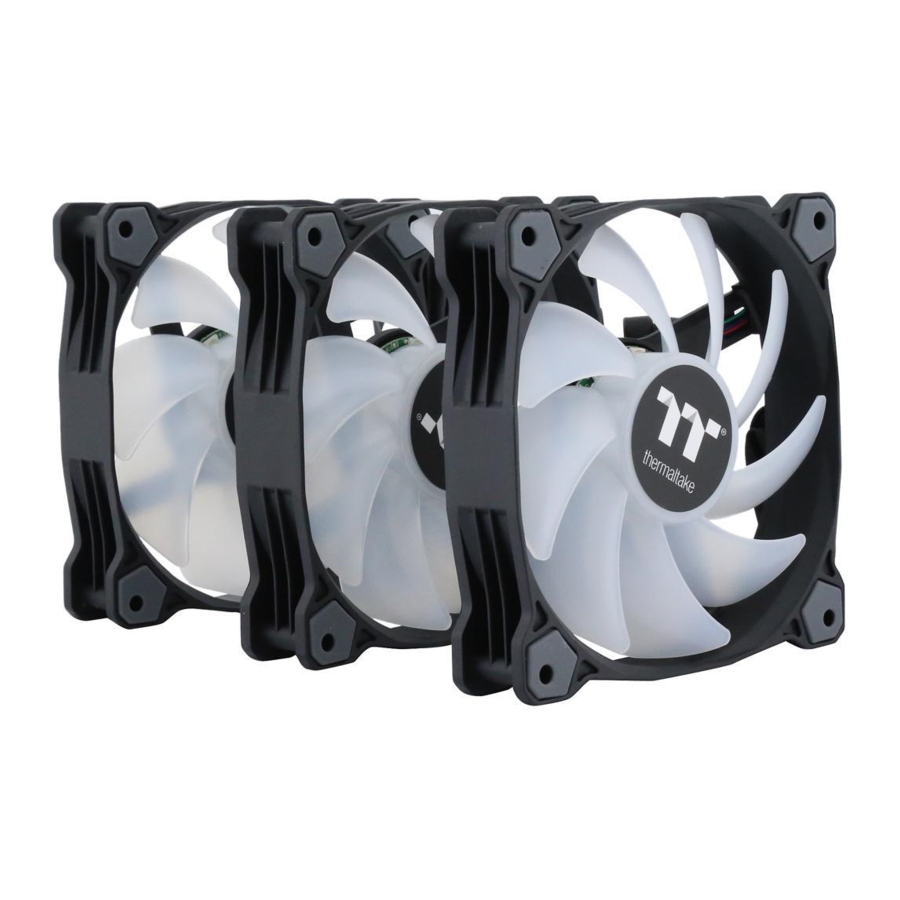

Thermaltake Pure 12 ARGB Sync Installation Manual

Parts List

Installation Guide

Install the fans properly onto the radiator

Connect the Fans in series

Connect the fan power cable to PWM cable

ARGB Controller Installation Guide

Connect the ARGB controller to the Fans.

Connect the ARGB controller to the SATA connector.

Mainboard SYNC installation Guide

Please power off the PC and check the Positive and Negative ends on the connector before connecting the cable to mainboard. Connecting the wrong end can damage the fans.

Connect the Mainboard Signal Bridge Cable to fan led cable

ASUS
Aura Addressable Strip Header(s)

MSI
JRGB-strip Header(S)

GIGABYTE
AOURS RGB Fusion with Digital LEDs

ARGB Controller

1. Light Mode:
   Switch over between 7 LED modes.
   Rainbow → Full light → RGB Spectrum → Off → Flow → Ripple → Pulse → Blink
2. Color Mode:
   When light mode is in Full Lighted, Pulse and Blink:
   Switch over 8 LED colors.
   Red → Yellow → Green → Teal → Blue → White → Purple → Rainbow
   When light mode is in Ripple:
   Switch over 7 LED colors.
   Red → Yellow → Green → Teal → Blue → White → Purple
   When light mode is in RGB Spectrum:
   Click to memorize and lock the color you want, click again to unlock the 256 colors auto rotation.
   When light mode is in Wave and Flow:
   LED color can not be adjusted.
3. Light Speed:
   Switch over between 4 light modes.
   Slow → Normal → Fast → Extreme
