Thermaltake Riing Trio 20 Installation Manual

A x 1
Fan Controller
1. It is recommended to connect up to 1 controller and 2 Riing Trio 20 fans on one peripheral cable (Molex) only.
CAUTION
2. DO NOT connect Riing Trio 20 fans to other TT RGB PLUS controllers.
1
A
Install the fans properly onto the radiator.
3
Set the DIP switch on the back side of the
controller to assign the number of the controller
4
C
Connect the controller cable onto the mainboard
(USB 2.0 9 pin) and controller.
5
E
Connect the power cable to the 4pin Molex
connecter and controller.
Parts List
B x 1 C x 1
Controller Cable
Installation Guide
C
E

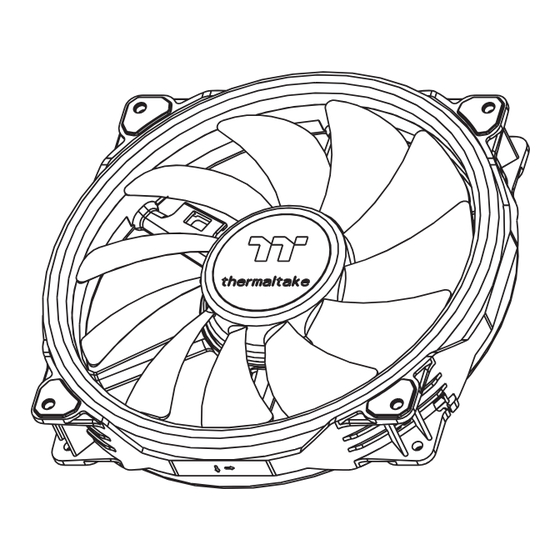

Riing Trio 20
C a s e F a n T T P r e m i u m E d i t i o n
D x 1 E x 1
Bridge Cable Power Cable
2
B
3 2 1
A
NO.1 NO.2
ON ON
1 2 3 4 1
NO.5 NO.6
ON ON
1 2 3 4 1
NO.9 NO.10
ON ON
1 2 3 4 1
NO.13 NO.14
ON ON
1 2 3 4 1
6
D
If you want to connect two or more controllers,
you can use the bridge cable to connect the controllers.
F x 4 G x 4
Short Screw Long Screw
B
5
Install LED Connector to desired port number.
Select corresponding port number within
TT RGB PLUS Software for Fan control.
CAUTION: Making sure to connect both
connectors before using the product.
NO.3 NO.4
ON ON
2 3 4 1 2 3 4 1
NO.7 NO.8
ON ON
2 3 4 1 2 3 4 1
NO.11 NO.12
ON ON
2 3 4 1 2 3 4 1
NO.15 NO.16
ON ON
2 3 4 1 2 3 4 1
D
Patented
16.8
Million Color
H x 1
Velcro
4
2 3 4
2 3 4
2 3 4
2 3 4
