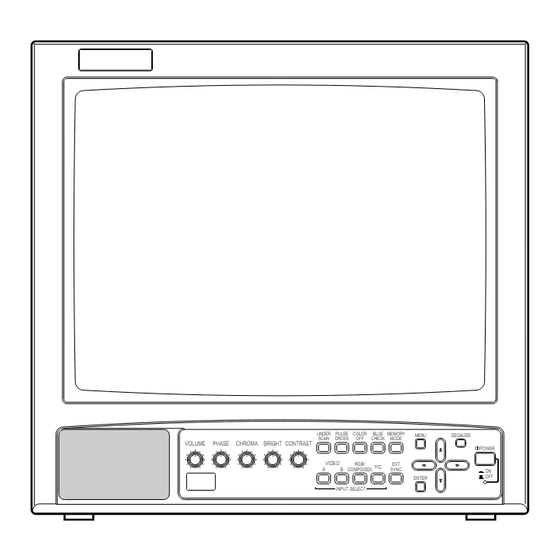

COLOR VIDEO MONITOR
BM-H1900SU
BM-H1300SU
For Customer Use:
Enter below the Model No. and
Serial No. which is located on the
rear of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
INSTRUCTIONS
UNDER
PULSE
COLOR
BLUE
MEMORY
MENU
SCAN
CROSS
OFF
CHECK
MODE
VOLUME
PHASE
CHROMA BRIGHT CONTRAST
VIDEO
RGB/
EXT
Y/C
A
B
COMPO(SDI)
SYNC
ENTER
INPUT SELECT
DEGAUSS
POWER
ON
OFF

Advertisement

   Also See for JVC BM-H1900SU - Color Production Monitor

   Related Manuals for JVC BM-H1900SU - Color Production Monitor

   Summary of Contents for JVC BM-H1900SU - Color Production Monitor

  • Page 1

    COLOR VIDEO MONITOR INSTRUCTIONS BM-H1900SU BM-H1300SU For Customer Use: Enter below the Model No. and Serial No. which is located on the rear of the cabinet. Retain this information for future reference. UNDER PULSE COLOR BLUE MEMORY MENU DEGAUSS SCAN CROSS CHECK MODE...

  • Page 2: Safety Precautions

    WARNING: INFORMATION CAUTION: Changes or modification not approved by TO PREVENT FIRE OR SHOCK HAZARDS, DO JVC could void the user's authority to operate the NOT EXPOSE THIS APPLIANCE TO RAIN OR equipment. MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Thank you for purchasing this JVC color video monitor.Before using it, read and follow all instructions carefully to take fullest advantage of the monitor's performance. CONTENTS SAFETY PRECAUTIONS ----------------------------------- 2 MEMORY MODE --------------------------------------------- 12 FEATURES ------------------------------------------------------ 3 Recall/release of memory mode ------------------------ 12...

  • Page 4: Controls And Features (front)

    CONTROLS AND FEATURES (FRONT) [ BM-H1900SU ] (Front) p q w e PULSE COLOR BLUE MEMORY UNDER MENU DEGAUSS CHECK MODE SCAN CROSS CONTRAST PHASE CHROMA BRIGHT POWER VOLUME VIDEO RGB/ COMPO(SDI) SYNC ENTER INPUT SELECT [ BM-H1300SU ] p q w e UNDER PULSE COLOR...

  • Page 5: Terminals And Features (rear)

    TERMINALS AND FEATURES (REAR) (Rear) AUDIO VIDEO A Y / C OPEN ¶ OPEN ¶ VIDEO B RGB/COMPO(SDI) G / Y OPEN ¶ OPEN ¶ SYNC B / B-Y OPEN ¶ OPEN ¶ TALLY/ REMOTE R / R-Y FOCUS OPEN ¶...

  • Page 6: Connection Example

    CONNECTION EXAMPLE Be sure to turn off each component’s power before connection. NOTE The connection shown below is only an example. Terminals and their functions differ in accordance with a component to be connected. Also read and follow the instructions for the component. For audio signal input from the Component that outputs a Component that outputs a...

  • Page 7: Basic Operation

    BASIC OPERATION 1. To turn the power on: VIDEO A + Input mode Push the POWER switch. NTSC + Color system The POWER indicator glows green. The mode and color system of an input signal are automatically discerned and displayed on screen for about 3 seconds.

  • Page 8: Picture Adjustments

    PICTURE ADJUSTMENTS Turn a separate front panel control to adjust picture contrast, picture brightness, picture color density, and picture hue respectively: CONTRAST (picture contrast) CONTRAST Softer Clearer BRIGHT (picture brightness) BRIGHT NOTE Darker Brighter To adjust the CHROMA and PHASE controls more precisely, input the color bar signal and operate the BLUE CHECK function as follows:...

  • Page 9: Video Signal Controls

    VIDEO SIGNAL CONTROLS Push each switch to ON or OFF for video signal control. UNDER SCAN Push the UNDER SCAN switch to reduce the dimensions of display area so the whole picture is displayed on screen. Use to check the picture frame.

  • Page 10: On-screen Menu Controls

    ON-SCREEN MENU CONTROLS By calling up the menu display on screen, various functions can be selected and set as needed. NOTE Calling up the menu display, selecting an item When the menu display 1 1 1 1 1 (shown at Press the MENU button to call up the menu display on screen (see 1 1 1 1 1 left below) is on screen, press the ENTER button.

  • Page 11: Peaking Freq./peaking Level (picture Quality Improvement)

    ON-SCREEN MENU CONTROLS (continued) PEAKING FREQ./PEAKING LEVEL (picture quality improvement) NOTE Corrects the luminance signal to improve picture quality by changing When analog RGB signals are input peak frequency and/or peak level depending on the video signal input to to the monitor, the indications do not the monitor.

  • Page 12: Memory Mode

    MEMORY MODE A set of picture settings can be programmed in memory for quick recall when necessary. Recall/release of memory mode NOTE Press the MEMORY MODE switch to recall a set of picture settings If you attempt to operate a locked programmed in memory.

  • Page 13

    MEMORY MODE (continued) Press the button to select a function to be revised. MEMORY MODE REV I SE CONTRAST BR I GHT Press the ENTER button after selecting PICTURE ADJUSTMENT to call up CHROMA PHASE display 2 2 2 2 2 . ENTER After making all settings on screen, press the MENU button to make display 1 1 1 1 1 appear.

  • Page 14: Set-up For Monitor Installation

    SET-UP FOR MONITOR INSTALLATION When installing the monitor, make set-up adjustments required for the picture set- tings to match conditions where the monitor is to be used. To call up SET-UP MENU and select a function: SET-UP MENU To make 1 1 1 1 1 (SET-UP MENU) appear, with the ENTER button pressed, S I Z E / CENTER I NG WH I TE BALANCE AD JUST press the MENU button.

  • Page 15: White Balance Adjust (white Balance Adjustments)

    SET-UP FOR MONITOR INSTALLATION (continued) WHITE BALANCE ADJUST (white balance adjustments) NOTE Before making these adjustments, select the color By making white balance temperature 9300K or 6500K on MENU. adjustments on SET-UP MENU, appears to the right of the COLOR Adjustment (level) Function TEMP.

  • Page 16: Status Display (setting The Status Display To On/off)

    SET-UP FOR MONITOR INSTALLATION (continued) STATUS DISPLAY (setting the status display to on/off) When the power is turned on or the input mode is switched, the status display (color system and input mode) appears on screen. The display can be set to on or off. Setting Function Status display appears.

  • Page 17: Picture Setting Initialization

    PICTURE SETTING INITIALIZATION The MENU and/or SET-UP MENU settings, including changes added later by the user, can be reset (initialized) to their initial (default) settings. To initialize MENU settings only NOTE MENU settings (except MEMORY MODE and RGB/COMPO(SDI)) can For initial (default) MENU settings, be exclusively reset: see page 21.

  • Page 18: Remote Controls

    REMOTE CONTROLS The optional wireless remote control unit (RM-C550W) operates the following: On-screen menu functions (MENU, SET-UP MENU, etc.) Picture adjustments (CONTRAST, BRIGHT, CHROMA, PHASE) Sound adjustments (VOLUME, MUTE) On-screen menu remote operation Remote keys and front controls with the same designation share the common functions.

  • Page 19: Each Remote Control Of Plural Monitors

    EACH REMOTE CONTROL OF PLURAL MONITORS To operate or adjust plural units of monitors, by programming and assigning an ID number (00 to 99) for each monitor, a specified monitor can be remote-controlled. To program an ID number (use front controls): I N I T I ALIZE MENU I D NUMBER SE T Press the POWER switch to turn the power off.

  • Page 20: Before Calling For Service

    BEFORE CALLING FOR SERVICE Before concluding a problem has occurred, check the following points. If the problem persists after carrying out the checks, disconnect the power cord from the AC outlet and consult the dealer from whom you purchased the monitor. Problems Points to be checked Measures...

  • Page 21: Menu Display Chart

    MENU DISPLAY CHART The initial (default) adjustments/settings are shown in the menus below. When the monitor was shipped from the factory, the NTSC SETUP had been set to 7.5 and the COMPO. LEVEL to BETA 75. For PICTURE ADJUST MENU via remote control, see page 18. MENU Menu functions Memory-Mode programming...

  • Page 22: Specifications

    SPECIFICATIONS Type : Color video monitor : Y, R-Y, B-Y component Color systems : NTSC 3.58 MHz, NTSC RGB/COMPO(SDI) 4.43MHz,PAL (1 line: common with analog RGB) Picture tube : [BM-H1900SU] Y: 1.0 V p-p, 75 , negative sync 19" (47.5 cm) diagonally measured, R-Y, B-Y: 0.7 V p-p, 75 90°...

  • Page 23

    DIMENSIONS BM-H1300SU The faceplate dimensions shown are larger than the visible portion of screen (Screen size). 13-5/8" (346mm) 16-1/4" (410mm) 11-3/8"(287mm) UNDER PULSE COLOR BLUE MEMORY MENU DEGAUSS SCAN CROSS CHECK MODE VOLUME PHASE CHROMA BRIGHT CONTRAST POWER VIDEO RGB/ COMPO(SDI) SYNC ENTER...

  • Page 24

    JVC PROFESSIONAL PRODUCTS COMPANY DIVISION OF US JVC CORP. 1700 Vallery Road Wayne, NJ07470 JVC CANADA INC. 21 Finchdene Square, Scarborough Ontario M1X 1A7 Printed in Japan LCT0467-001A C C C C C 1999 VICTOR COMPANY OF JAPAN, LIMITED 0299-Tu-V-VP...
