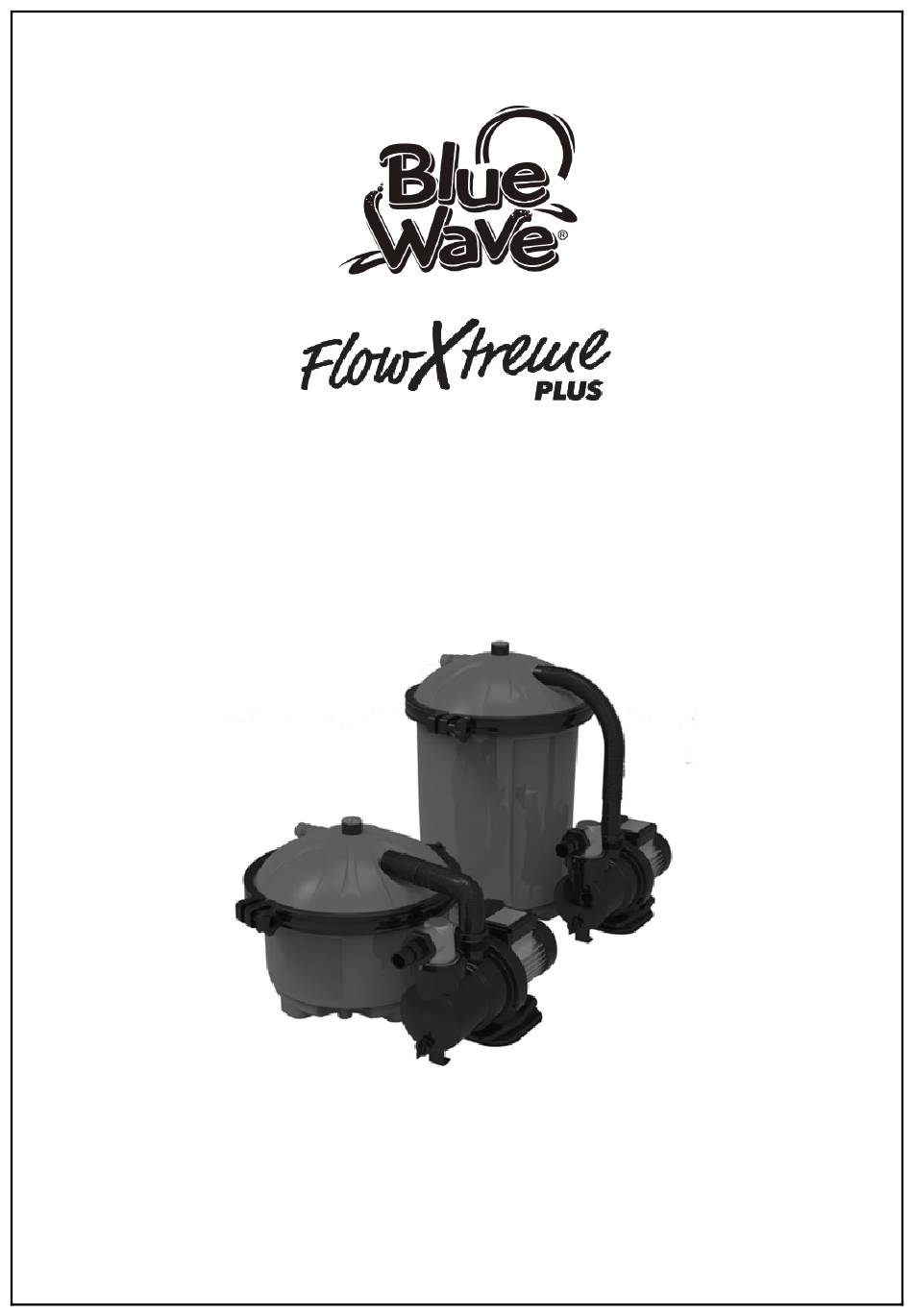

- Page 1 Cotton Tails FX PLUS C/T 16” AG SYSTEM W/ 1/2HP PUMP FX PLUS C/T 16” AG SYSTEM W/ 3/4HP PUMP VER. 0120 NE4505 & NE4506...
- Page 2 CONGRATULATIONS! YOU HAVE PURCHASED A HIGH QUALITY FlowXtreme Plus FILTRATION SYSTEM FOR YOUR ABOVE GROUND POOL. YOUR NEW FILTER SYSTEM HAS BEEN MANUFACTURED AND TESTED TO OFFER MANY YEARS OF TROUBLE FREE SERVICE. IMPORTANT – READ THIS MANUAL CAREFULLY A. Safety Warnings Read all Warnings and Cautions noted below.
- Page 3 B. General Information This manual provides information relating to the installation, utilization and maintenance of our filtration system. We recommend that you read this manual in its entirety and keep it for future reference, The pump included with the filtration system is a horizontal, self-priming centrifugal pump. For the pump to function correctly, the water temperature must not exceed 35℃/95℉.
- Page 4 Ø Only original replacement parts are used for repairs or replacements (consumable & expendable parts do no fall under the warranty). Expendable parts that do not fall under the warranty include: Ø All O-rings Ø Pressure gauge Ø Mechanical seal, complete Ø...
- Page 5 Ø We recommend putting the filter system on a concrete slab or similar. Be sure the installation is level. Ø Additional installation accessories such as hoses, hoses clamps are available from your pool dealer. K. Filter-Pump assembly 1. Water pump & Base Plate assembly a）Secure water pump to base plate with the provided pump mounting hardware.
- Page 6 In addition, possible damage to the filtration tank or its internal components may occur. Blue Wave will not be responsible for damage caused to the Cotton Tails, the filtration tank or any of the internal components of the filtration tank where a clarifier or other chemical additives that bond to particulate matter have been used in the pool.
- Page 7 filter system and the size of the swimming pool. However, we recommend a minimum running time of 10 to 12 hours per day. M. Manual Vacuuming the Pool For Above Ground Pools Vacuuming is done in normal filter mode. The pool vacuum is connected by use of a pool vacuum hose and vacuum plate directly into the skimmer.
- Page 8 R. FlowXtreme PLUS COTTON TAILS SYSTEM NE4505 NE4506 PARTS BREAKDOWN...
- Page 9 Part Name Mfg. No. B.W. No. For Model# PRESSURE GAUGE 17001 NEP4080 NE4505 & NE4506 O-RING 17002 NEP4081 NE4505 & NE4506 FILTER COVER 17003 NEP4082 NE4505 & NE4506 O-RING 17004 NEP4083 NE4505 & NE4506 LEFT CLAMP RING L00169 NEP4237 NE4505 & NE4506 RIGHT CLAMP RING L00170 NEP4238...
- Page 10 S. TECHNICAL DATA for FlowXtreme Prime Single Speed Pumps Model #s; NE4523, NEP4268, NEP4269 Technical Data Model Voltage Hertz Amps Flow Rate GPM NE4523 0.75 38GPM NEP4268 0.33 24GPM NEP4269 0.50 35GPM FlowXtreme PRIME, SPS1 Pumps Parts Breakdown & Diagram Part Name Mnfg.
- Page 11 Transparent Hair & Lint Strainer P00131 NEP4245 NEP4268/NEP4269/NE4523 Cover 1 1/4"- 1 1/2" Hose Connector P00132 NEP4246 NEP4268/NEP4269/NE4523 O-ring "A"- 2 1/4" P00182 NEP4265 NEP4268/NEP4269/NE4523 O-ring "B"- 3" P00183 NEP4266 NEP4268/NEP4269/NE4523 O-ring "C"- 1.5" P00184 NEP4267 NEP4268/NEP4269/NE4523 Strainer Collar P00133 NEP4247 NEP4268/NEP4269/NE4523 Strainer Basket...
- Page 12 2. Manually check rotation of motor shaft for free movement and lack of obstruction. 3. If you have a timer, be certain it is working properly. Bypass it if necessary. Motor Shuts OFF – Check For: 1. Low voltage at motor or power drop (frequently caused by undersized wiring or extension cord use). Solution: Contact qualified professional to check that the wiring gauge is heavy enough.
- Page 13 ATTENTION DO NOT RETURN THIS PRODUCT TO YOUR RETAILER. IF YOU ENCOUNTER ANY DIFFICULTIES WITH YOUR NEW SWIMMING POOL PUMP CONTACT BLUE WAVE CUSTOMER SERVICE FOR ASSISTANCE. 1-800-759-0977...
- Page 14 The model number and part numbers found within the assembly instructions will be required when submitting any parts requests or warranty claims. For further warranty information or inquiries, please call 1 (800) 759-0977 Or email warranty@splashnetxpress.com Blue Wave Products, Inc. 1745 Wallace Ave, Suite B Saint Charles, IL 60174...
- Page 15 Pour plus d’information ou pour toute question, veuillez téléphoner au 1 (800) 759-0977 ou email warranty@splashnetxpress.com Blue Wave Products, Inc. 1745 Wallace Ave, Suite B Saint Charles, IL 60174...
