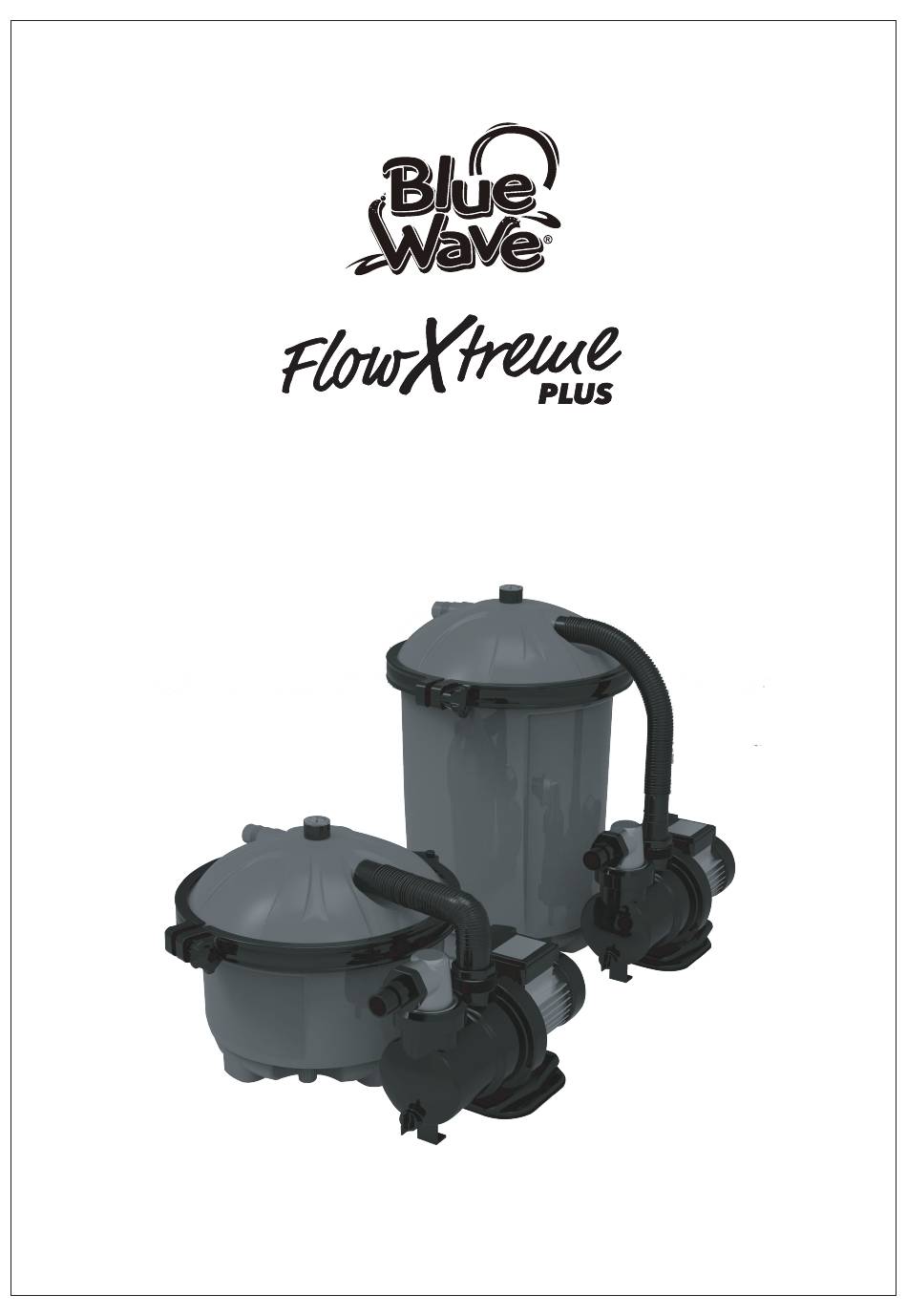

- Page 1 FX PLUS C/T 16" AG SYSTEM W/ 1/2HP PUMP FX PLUS C/T 16" AG SYSTEM W/ 3/4HP PUMP NE4505 VER.0418 NE4506...
- Page 2 A. Safety Warnings Read all Warnings and Cautions noted below. Failure to do so could result in serious or fatal injury. Prior to installation of this unit, carefully read and adhere to all CAUTION, ATTENTION, and ADVICE notices located throughout this manual. Failure to comply with these instructions can cause serious injury, death, or damage to the unit.
- Page 3 specifications for the pH- and chlorine value). It is equipped with a tank drainage system. The filter tank comes ready to attach with an approved filter pump with hair and lint basket, and a plastic base for ready on- site mounting. Read this manual carefully before installation.
- Page 4 F. Resultant Damages We cannot be responsible for damages to the product if the product is not used in accordance with the instructions provided. G. Technical Data and Specifications The recommended filter run time is twice a day for 4 to 5 hours with floor vacuum cleaning ...
- Page 5 K. Filter-Pump assembly 1. Water pump & Base Plate assembly a）Secure water pump to the base plate with the provided pump mounting hardware. Orient as shown. （Figure 5） 2. Pump Fittings Assembly (Figure 6) a) Screw the 1¼”-1½“ hose connector into the center port of the water pump. Ensure that the O-ring “A”...
- Page 6 In addition, possible damage to the filtration tank or its internal components may occur. Blue Wave will not be responsible for damage caused to the Cotton Tails, the filtration tank or any of the internal components of the filtration tank where a clarifier or other chemical additives that bond to particulate matter have been used in the pool.
- Page 7 M. Manual Vacuuming the Pool For Above Ground Pools Vacuuming is done in normal filter mode. The pool vacuum is connected by use of a pool vacuum hose and vacuum plate directly into the skimmer. Do not turn on the pump until the pool vacuum is connected and ready for operation.
- Page 8 Q. FLOW XTREME PLUS COTTON TAILS SYSTEM NE4505 NE4506 INSTALLATION FIGURES Page 8...
-
Page 9: Base Plate
改 R. FLOW XTREME PLUS COTTON TAILS SYSTEM NE4505 NE4506 PARTS BREAKDOWN Part Name Qty Manf. No. B.W. No. For Model# PRESSURE GAUGE 17001 NEP4080 AF1725 & AF1750 FILTER COVER 17003 NEP4082 AF1725 & AF1750 O-RING 17004 NEP4083 AF1725 & AF1750 LEFT CLAMP RING L00169 NEP4237...
