Dell Pro Premium Compact Mouse

MS7421W

User's Guide

Regulatory model: MS7421Wc/RG-1216

Need help?

Do you have a question about the Pro Premium Compact MS7421W and is the answer not in the manual?

Questions and answers

Summary of Contents for Dell Pro Premium Compact MS7421W

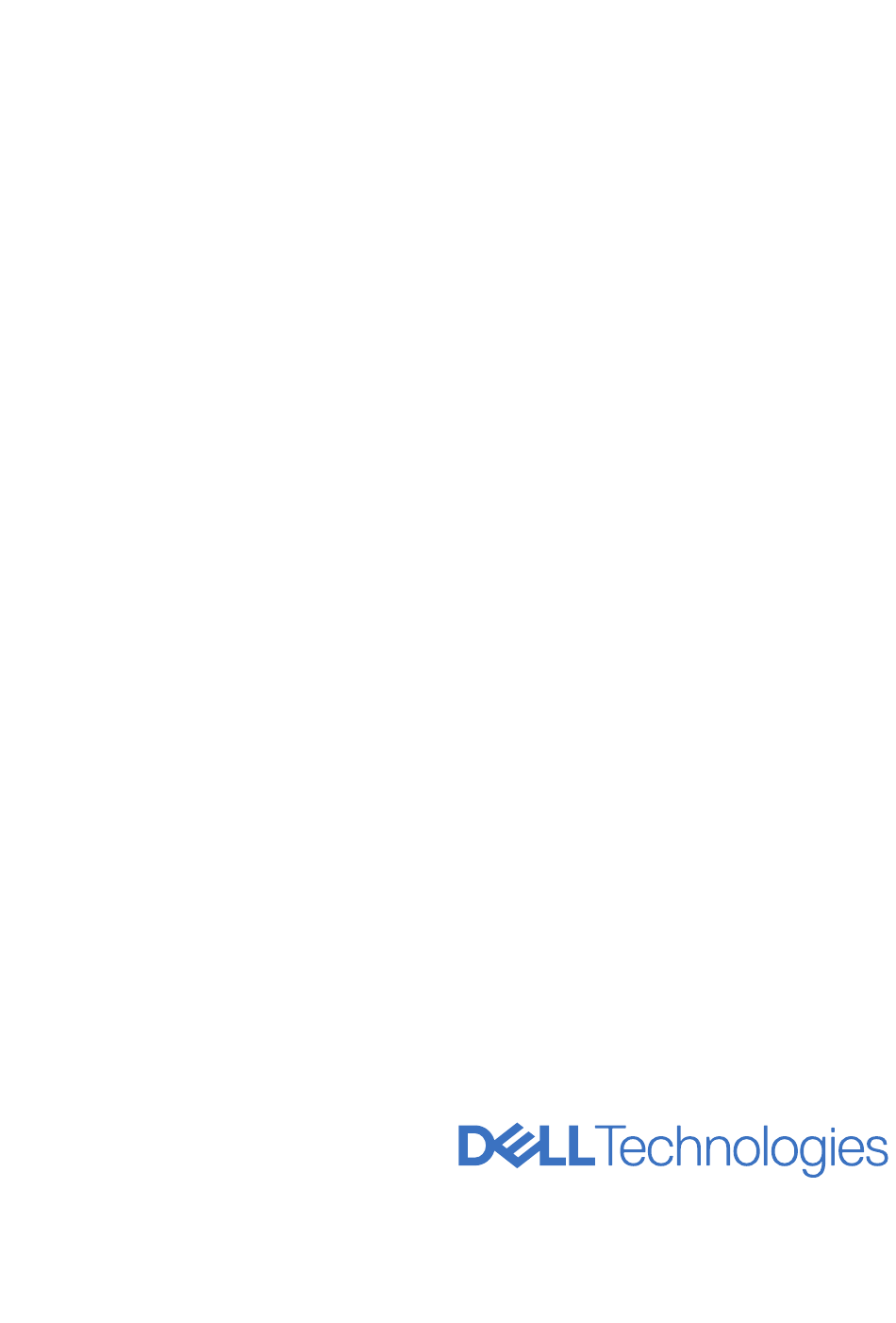

Page 1 Dell Pro Premium Compact Mouse MS7421W User’s Guide Regulatory model: MS7421Wc/RG-1216...
Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2020-2025 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
Page 3 Shortcut gestures ......7 Dell Display and Peripheral Manager ... . . 8 Setting up your wireless mouse .
Page 4 What’s in the box Wireless mouse Dell Universal Dongle 2 Documents USB-C cable for recharging │ What’s in the box...

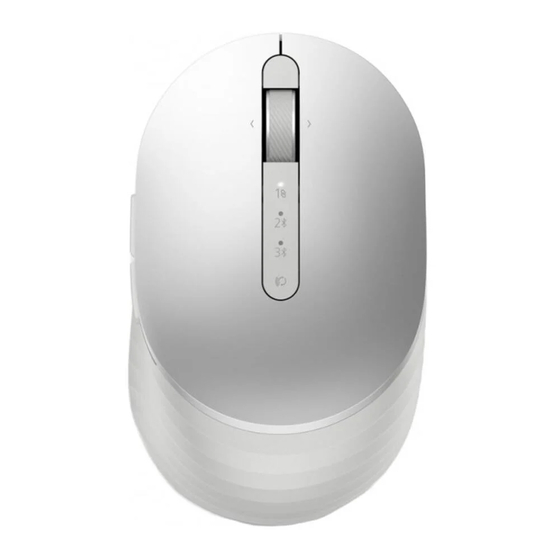

Page 5 Features Top view Connection-mode lights Left button • White LED blinking: device is not connected to computer Right button • LED lighting solid white: device is connected to computer Scroll wheel Forward button Connection-mode button Backward button Charging/low battery lights •...
Page 6 Features Bottom view Optical sensor Power switch │ Features...
Page 7 Shortcut gestures Scroll and Tilt 4-way scroll Forward function Press the front button on the side. Backward function Press the rear button on the side. │ Shortcut gestures...
Page 8 Dell Display and Peripheral Manager Dell Display and Peripheral Manager is an app that helps you set up and configure your Dell monitors and peripherals. With this app you can: • Assign shortcuts to programmable buttons of your mouse through the Button Customization tab.
Page 9 Setting up your wireless mouse 1. Locate the slot on the side of the mouse cover. Using your fingertip, pry open the cover. 2. Remove the Dell Universal Dongle from its compartment. 3. Replace the mouse cover. │ Setting up your wireless mouse...
Page 10 Setting up your wireless mouse 4. Slide the power switch down to turn on the wireless mouse. NOTE: Ensure that the distance between your computer and mouse is within ten meters. │ Setting up your wireless mouse...
Page 11 Pairing your wireless mouse Your Dell wireless mouse can be paired via the Dell Universal Dongle or direct Bluetooth connection. You can pair and switch between a laptop, desktop, and a compatible mobile device. Pairing with the Dell Universal Dongle NOTE: You can connect a device to your wireless mouse using the Dell Peripheral Manager.
Page 12 Bluetooth driver to the latest version on your computer. For more information, see Drivers & Downloads at https://www.dell.com/support 1. Press the connection-mode button twice on your wireless mouse (within 3 seconds)
Page 13 Ensure that the Bluetooth is turned on. e. Place your wireless mouse near your computer. The New Dell Mouse found window appears. f. Click Connect and confirm the pairing process on both wireless mouse and your computer. 1. Pair your wireless mouse with your Bluetooth-enabled computer.
Page 14 Bluetooth driver to the latest version on your computer. For more information, see Drivers & Downloads at https://www.dell.com/support 1. Press the connection-mode button twice on your wireless mouse (within 3 seconds) until...
Page 15 Place your wireless mouse near your computer. The New Dell Mouse found window appears. f. Click Connect and confirm the pairing process on both wireless mouse and your computer. 1. Pair your wireless mouse with your Bluetooth-enabled computer. Add Device: In Windows Search, type Bluetooth.
Page 16 Charging your wireless mouse European Union (EU) has a common charger requirement for wireless products that have embedded rechargeable battery. For more information about the EU charging power requirements, see Charging power requirement. 1. When the amber LED of mouse blinks, you need to charge your wireless mouse. 2.
Page 17 Specifications General Mouse model number MS7421W Connection type 2.4 GHz Wireless & Bluetooth dual mode technology Supported operating systems • Windows 10/8/7/XP (2.4 GHz) • Server 2008/Server 2012 • Linux 6.x, Ubuntu, Free DOS, • Chrome and Android • MAC OS Supported operating systems •...
Page 18 If the battery is fully depleted, the battery- status light will not turn on. 3. Ensure that the Dell Universal Dongle is directly connected to your computer. Avoid using the port replicators, USB hubs, and so on.
Page 19 Problems Possible causes Possible solutions Unable to pair the The Bluetooth icon on 1. Check the battery level. wireless mouse the computer does not This wireless mouse uses a to the computer light up when connecting rechargeable battery, please using Bluetooth the wireless mouse to the ensure that the battery is fully computer.
Page 20 Problems Possible causes Possible solutions Mouse pointer The wireless mouse 1. Check the battery level does not move pointer is not responding This wireless mouse uses a rechargeable battery, please ensure that the battery is fully Left/right buttons No response when the charged.
Page 21 3. Restart your computer. Wireless Previously paired mouse 1. Ensure that the Dell Universal connection is lost no longer works on the Dongle is connected directly computer to your computer.
Page 22 Charging power requirement NOTE: The information in this section is applicable only to the European Union (EU) countries. Charging power requirement The power delivered by the charger must be between minimum 0.7 W required by the radio equipment, and maximum 0.7 W in order to achieve the maximum charging speed.
Page 23 Charging power requirement Laadimisvõimsuse nõue: maksimaalse laadimiskiiruse saavutamiseks peab laadija tarnitav võimsus jääma raadioseadmete nõutava minimaalse võimsuse 0.7 W ja maksimaalse võimsuse 0.7 W vahele. Lataustehovaatimus: Laturin tuottaman tehon on oltava radiolaitteen vaatiman minimin 0.7 W ja maksimin 0.7 W välillä maksimilatausnopeuden saavuttamiseksi. Puissance requise pour le chargement : L’alimentation fournie par le chargeur doit être comprise entre la puissance minimale requise par l’équipement radio (0.7 W) et la puissance maximale autorisée...
Page 24 Charging power requirement Uzlādes jaudas prasība. Lādētāja nodrošinātajai jaudai jābūt no min. 0.7 W, kas nepieciešama radio aprīkojumam, un maks. 0.7 W, lai sasniegtu maksimālo uzlādes ātrumu. Įkrovimo galios reikalavimai. Kad būtų pasiektas didžiausias įkrovimo greitis, įkroviklio galia pagal radijo įrangos reikalavimus turi būti ne mažesnė...
Page 25 Charging power requirement Cerință de alimentare pentru încărcare: Alimentarea furnizată de încărcător trebuie să fie între minimum 0.7 W, valoare impusă de echipamentul radio, și maximum 0.7 W pentru a obține viteza maximă de încărcare. Požiadavky na napájanie: Na dosiahnutie maximálnej rýchlosti nabíjania musí byť výkon dodávaný nabíjačkou medzi minimom 0.7 W požadovaným rádiovým zariadením a maximom 0.7 W.
Page 26 Oman regulatory information Regulatory Model: MS7421Wc, RG-1216 │ Oman regulatory information...
Page 27 Dell system, it will follow the system warranty. For U.S. customers: This purchase and your use of this product are subject to Dell’s end user agreement, which you can find at Dell.com/terms. This document contains a binding arbitration clause.
