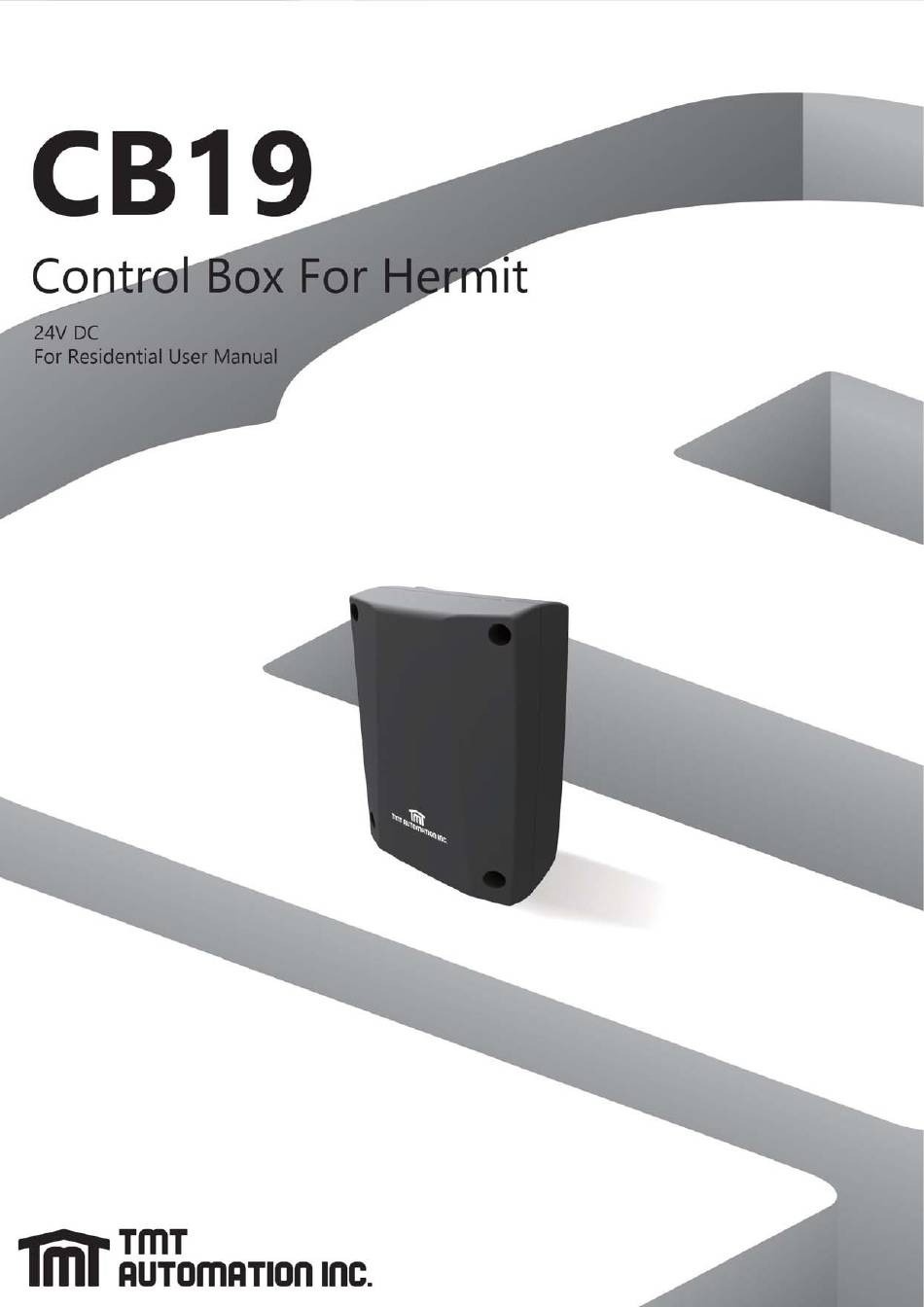

TMT Automation CB19 User Manual

Control box for hermit 24v dc
Hide thumbs Also See for CB19:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB19 and is the answer not in the manual?

Questions and answers

Related Manuals for TMT Automation CB19

Summary of Contents for TMT Automation CB19

  • Page 2: Table Of Contents

    Contents Installation 1. Control Box Installation…………………………………… 2. Wiring Connection …………………………………………… II. Motor Connection a. Motor Only …………………………………………………… b. Motor With Limit Switch + LED indicator … c. Motor With Hall Sensor ……………………………… 1. Wifi Device ……………………………………………………… 2. Back-up Batteries …………………………………………… 3.

  • Page 3: Control Box Installation

    I. Installation 1. Control Box Installation 1. Decide the installation position of control box first, it is suggested to be installed near the gate and should be protected from possible damage. Be aware of the motor cable length before deciding the installation position. 2.

  • Page 4: Motor Connection

    II. Motor Connection a. Motor Only Figure 1(1) b. Motor With Limit Switch + LED indicator Figure 1(2) c. Motor With Hall Sensor Figure 1(3)

  • Page 5: Wifi Device

    1. Wifi Device Functions of Buttons and Terminals LED Display P button: Wi-Fi Paring: Press 1 sec Default Setting: Press 3 sec R button: Terminals Press to restart • LED description: Blue: LED will be flashing during WIFI pairing, and be ON when completed. Green: LED will be flashing if WB-001 receives signal from APP.

  • Page 6: Accessories

    3. Accessories a. Photocells The safety photocells are security devices for control automatic gates. Consist of one transmitter and one receiver based in waterproof covers; it is triggered while breaking the path of the beams. Specification: Detection Method Through Beam Sensing Range MAX~15m Input Voltage...

  • Page 7: Get Started

    III. Get Started Note: A. Transmitter memorizing must be done first before system learning. B. CHECKING THE Gate MOVEMENTS • Release the gearmotor with the release key and move the gate to the middle so that it is free to move in both opening and closing directions; then lock the gearmotor. •...

  • Page 8: Remote Learning Without Control Board

    b. Remote learning without Control board 1. Press the button on the NEW radio transmitter and hold it down for at least 5s, then release it. 2. Press the button on the OLD radio transmitter 3 times. (Tip: Don't press too fast; make sure you see the blue flash when pressing the button each time.) 3.

  • Page 9: Step 2: System Learning

    2. Step 2: System Learning Step1: Press and Hold the Press SET button for 3s, When LED shows "LEA" then release SET, then the motor runs the system learning procedure automatically, once learning completed shows "D-G" or "S-G" (No remote required) Note: Please check the parameter setting of "FI"(Dual/Single) before going into system learning.

  • Page 10: Gate Operation Logic

    IV. Gate Operation Logic A. In gate-opening phase: The gates stop if the transmitter/push button/key selector is activated, and close when the transmitter/push button/key selector is reactivated. B. In gate-closing phase: The gates stop if the transmitter/push button/key selector is activated, and open when the transmitter/push button/key selector is reactivated.

  • Page 11: Parameter Modification

    VII. Parameter Modification 1. Parameter Learning Press “UP+SET” for 3 seconds to get into Press “UP” or “DOWN” to change Press “SET” button again to get into the program setting display from F1. setting item from F1 to FJ . the sub-settings.
  • Page 12 Setting Definition Paramters Table Description F8-0 0 sec F8-1 2 sec F8-2 5 sec F8-3 10 sec Time Gap b/w Two Gates F8-4 15 sec 1. The factory setting is "F8-1". (Closing) F8-5 20 sec F8-6 25 sec F8-7 35 sec F8-8 45 sec F8-9...

  • Page 13: Photocell Logic

    The value can be adjusted by pressing button UP and DOWN. The maximum value is 50(5.0A) and the minimum value is 05(0.5A). LED display example: Indicate 1.0 ampere: all of the Indicate 2.8 ampere: all of recorded values will increase the recorded values will 1 ampere as over current increase 2.8 ampere as over...

  • Page 14: Trouble Shooting

    VIII. Trouble Shooting Issue: Solution: Parts to look at: • Power to the transformer is on and the connector block from • Fuse the AC power lead to the transformer and to the control board is wired correctly. • At the control board check the transformer white connector •...

  • Page 15: Technical Specification

    • Ensure there is nothing obstructing the gate or the arms. • If the gate is a bigger or heavier gate change the power settings Gates not fully using the F2 for open and F3 for close direction. You should not opening or closing have to use the maximum power setting.

  • Page 16: Fcc Warning

    X. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
