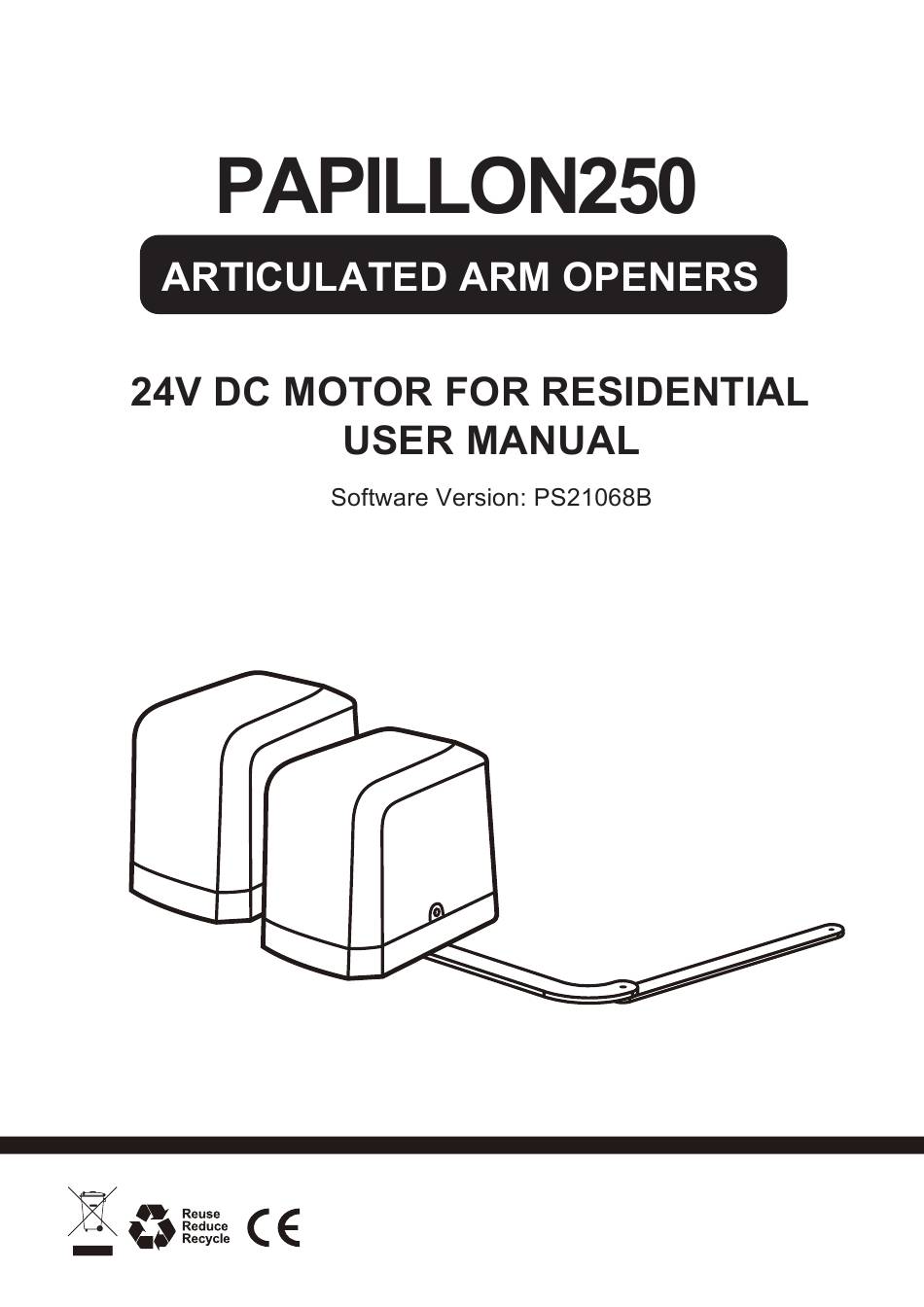

Summary of Contents for TMT Automation PAPILLON250
Page 2
INDEX (1) All installations, electrical connections, adjustments and testing must be performed only after reading and understanding of all instructions carefully. (2) Before carrying out any installation or maintenance operation, disconnect the electrical power supply by turning off the magneto thermic switch connected upstream and apply the hazard area notice required by applicable regulations.
Page 3
2x1.5 mm 4x0.5 mm RX - 4x0.5 mm TX - 4x0.5 mm 2x1.5 mm 2x1.5 mm 1. 24V DC blinker with integrated antenna 2. Push Button 3. Photocells 4. 24V DC articulated arm opener 5. TM3 Transmitter Please comply with the measures shown on the chart for Inward Opening proper installation.
Page 8
2.1.1 Master Motor is installed at right side Figure 2(2) Motor1 Power Motor2 Power PhVcc PhVcc SKey DKey Lmt4 Lmt3 Lmt2 Lmt1 Lat- Lat+ Lit- Lit+ Motor with Limit switch Figure 2(3) Limit Switch Limit Switch Motor1 Power Motor2 Power Limit1 Limit2 Limit4...
3. Gate-moving Logic 3. Checking the Gate Movement 3 3 . LED Indicat LED2 ED2 D Key/S Ke Key selector, or the push button is activated, LED2 will be on. LED4 ED4 Ph LED4 will be on when Ph1 are triggered. LED3 ED3 Ph LED3 will be on when Ph2 are triggered.
