Product manual

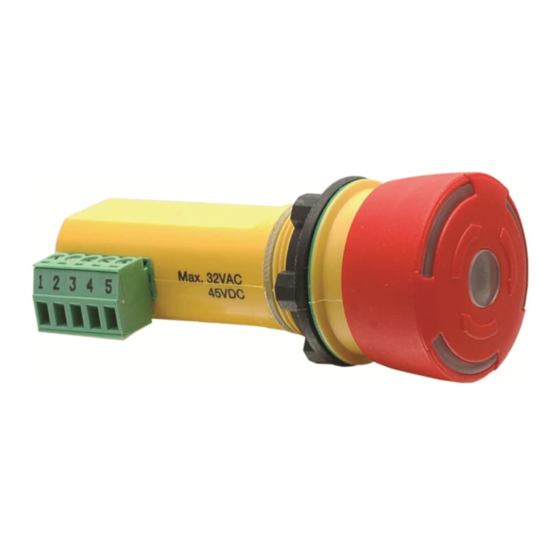

INCA-1
Emergency stop for enclosure installation
INCA-1S
Safety stop for enclosure installation
2TLC172175M0201, rev.E
PRODUCT MANUAL
new.abb.com/low-voltage/products/safety-products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INCA-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ABB INCA-1

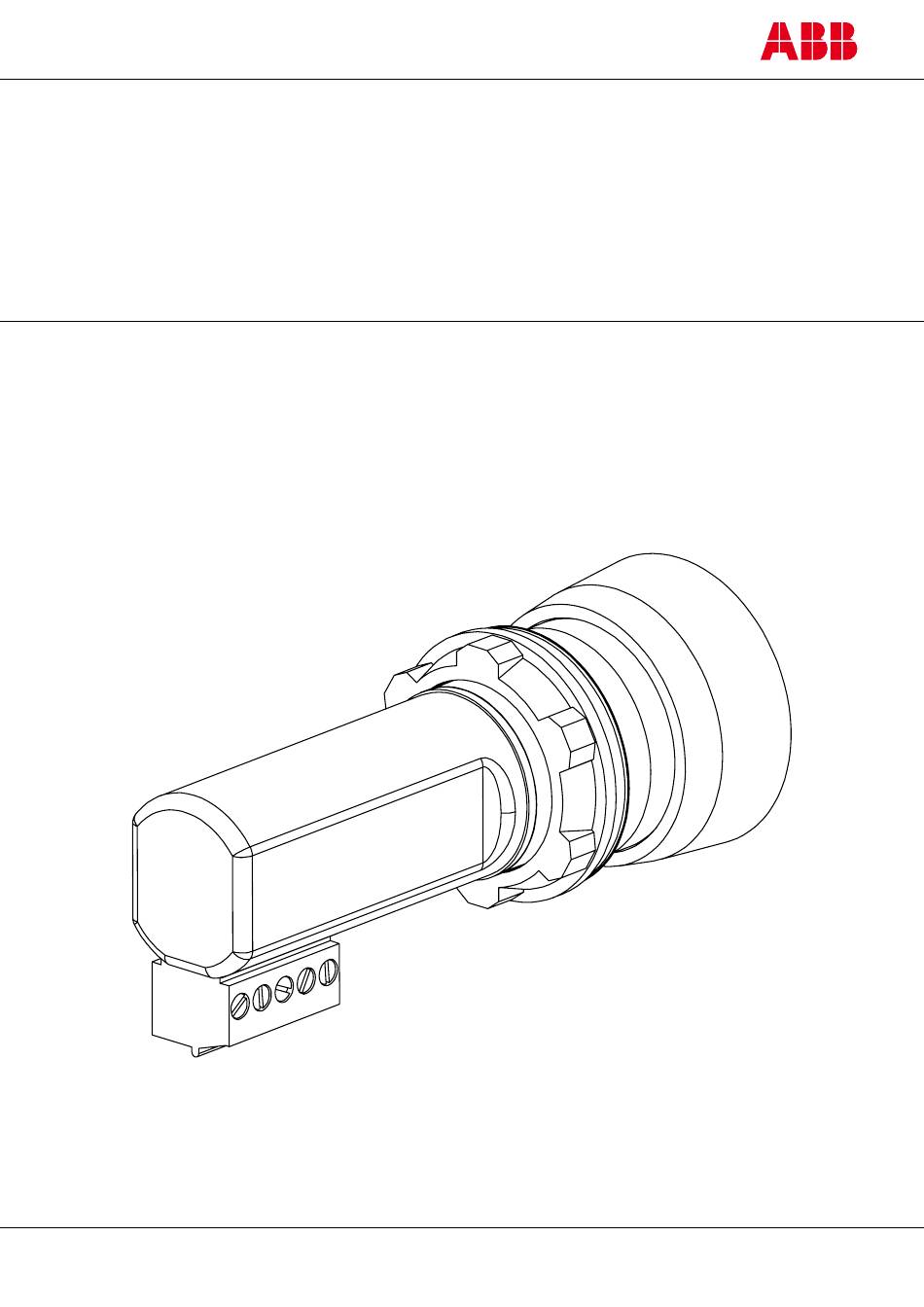

  • Page 1 Product manual INCA-1 Emergency stop for enclosure installation INCA-1S Safety stop for enclosure installation 2TLC172175M0201, rev.E PRODUCT MANUAL new.abb.com/low-voltage/products/safety-products...
  • Page 2: Read And Understand This Document

    Read and understand this document Please read and understand this document before using the products. Please contact ABB for any questions or comments. Suitability for use ABB Electrification Sweden AB shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product.
  • Page 3: Table Of Contents

    Table of Contents Introduction ............................. 4 Scope ..................................4 Audience ................................... 4 Prerequisites ................................4 Special notes ................................4 Overview ............................5 General description ..............................5 Safety regulations ..............................5 Connections ............................ 6 Installation and maintenance ......................7 Installation precautions ............................. 7 Maintenance ................................
  • Page 4: Introduction

    This document is intended for authorized personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB Safety products. Knowledge of machine safety. • Special notes Pay attention to the following special notes in the document:...
  • Page 5: Overview

    Warning! The emergency stop INCA normally needs to be complemented with other safety functions such as interlocking guards etc. Refer to risk analysis. NB: The emergency stop (INCA-1) should not be used as normal stop of the machine, only in case of emergency. Safety regulations Warning! Carefully read through this entire manual before using the device.
  • Page 6: Connections

    Caution! When connected to an ABB safety relay (such as SENTRY SSR10) and voltage (+) is supplied from the output T1 or T2, a maximum of three INCA units may be connected in series. This must be done with caution (especially in warm environments) as this affects the heat generation within the safety relay.
  • Page 7: Installation And Maintenance

    In case of breakdown or damage to the product, contact ABB. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel.
  • Page 8: Operation

    Operation LED indication Indication Description Green Safety device OK. Safety circuit closed. Safety circuit interrupted (when an emergency stop actuator is pressed down, all following LED on button units in the safety circuit lose the LED function). Safety device actuator pressed down. Safety circuit interrupted. 2TLC172175M0201, rev.E...
  • Page 9: Model Overview

    Model overview Type Article number Description INCA 1 2TLA030054R0100 Emergency stop, red button, 5-pin connection block INCA 1S 2TLA030054R0300 Safety stop, black button, 5-pin connection block Accessories Type Article number Description Yellow surround 2TLA030054R0400 Yellow surround for emergency stop button. Emergency stop sign 2TLA030054R0500 Ø22.5 mm, Swedish, Danish, Finnish...
  • Page 10: Technical Data

    Technical data Manufacturer Address ABB Electrification Sweden AB SE-721 61 Västerås Sweden Power supply Operating voltage (LED) 24 VDC ±10% Current consumption (LED) 35 mA Minimum current (switches) 10 mA 10 VDC/10 VAC Maximum current (switches) 2 A 24 VDC...
  • Page 11: Dimensions

    Safety / Harmonized Standards Conformity European Machinery Directive 2006/42/EC EN ISO 12100:2010, EN ISO 13849-1:2023, EN 60204-1:2018, EN ISO 13850:2015 EN ISO 13849-1 Performance level: Up to PL e, category 4 B10d: 100 000 Certificates KIWA Inspecta AB NB: A safety function with an emergency stop INCA 1 can achieve Cat. 4/PL e according to EN ISO 13849-1 only when a single INCA unit is connected to the control unit (safety-PLC or safety relay) in a dual channel configuration.
  • Page 12: Declarations Of Conformity

    Declarations of conformity 2TLC172175M0201, rev.E...
  • Page 13 2TLC172175M0201, rev.E...
  • Page 14 2TLC172175M0201, rev.E...
  • Page 15 2TLC172175M0201, rev.E...
