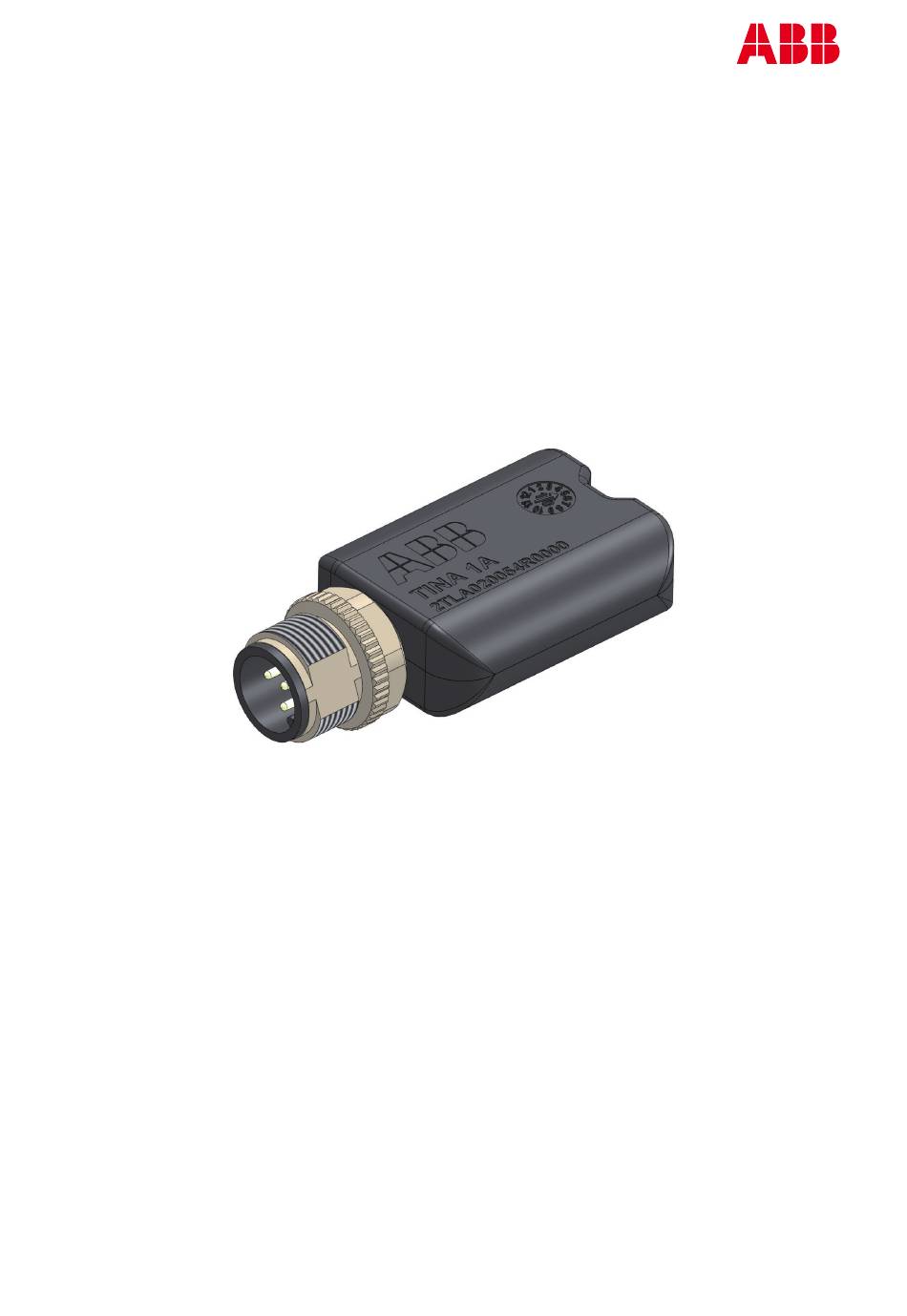

- Page 1 — SA F E T Y PR OD U CTS Tina 1A Blanking plug Product Manual 2TLC172117M0201 Rev.E ORIGINAL INSTRUCTIONS new.abb.com/low-voltage/products/safety-products...
- Page 2 Suitability for use ABB shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product. Third party certificates for the products are available at https://new.abb.com/low- voltage/products/safety-products.
-
Page 3: Table Of Contents
Table of Contents 1 Introduction ..........................4 Purpose of document ........................ 4 Intended audience ........................4 Reading prerequisites ........................ 4 Special notes ..........................4 2 Safety ............................5 Safety precautions ........................5 3 Product description........................6 4 Installation........................... 7 Installation precautions ......................7 Testing safety functions ...................... -
Page 4: Introduction
This document is intended for authorized personnel. Reading prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB safety products • Knowledge of machine safety Special notes Pay attention to special notes in the document:... -
Page 5: Safety
Safety Safety precautions The safety precautions must be followed during installation, operation, maintenance and troubleshooting. It is the responsibility of the user to ensure the correct overall functionality. Warning! Carefully read through the entire product manual before using the device. Warning! The devices shall be installed by authorized personnel following applicable Safety regulations, standards and the Machinery directive. -
Page 6: Product Description
Product description Tina 1A is a unit intended for use with connection blocks Tina 4A or Tina 8A, where Tina 1A is used as a blanking plug in unused M12 connections. The Tina 1A blanking plug is intended for use in safety circuits in accordance with EN 60204-1. -
Page 7: Installation
Installation • Attach Tina 1A to the connection block. • See max. tightening torque in chapter “Technical data”. Installation precautions Warning! All safety functions shall be tested before starting up the system. Testing safety functions After each step the status of the input can be read on the monitoring device. -
Page 8: Connections
Connections M12 5-pole male connector, A-coded +24 VDC DYNlink signal input 0 VDC DYNlink signal output Information output M12 5-pole male connector Connection examples Caution! All cable colors according to ABB standard cables. 2TLC172117M0201 Rev.E... -
Page 9: Functions
Functions LED indications LED indication Description DYNlink state Green DYNlink input signal Green/red flashing DYNlink input open or 0 VDC Interrupted before this unit Information output signal attributes Information output is toggling with a nominal frequency of 1 Hz and duty cycle of 50 %. If DYNlink input signal is +24 VDC the Information output is low. -
Page 10: Maintenance
(EN 62061:2005+A1:2013+A2:2015, EN ISO 13849-1:2015). Warning! In case of breakdown or damage to the product, contact ABB. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 11: Troubleshooting
Troubleshooting LED indications LED indication Probable cause Action +24 VDC connected to Check if there is +24 VDC on DYNlink signal input DYNlink signal input. If yes, check cable connections or the unit before. No LED light Loss of power supply Check +24 VDC / 0 VDC power supply. -
Page 12: Dimensions
Dimensions All dimensions are in mm. 2TLC172117M0201 Rev.E... -
Page 13: Technical Data
Address ABB Electrification Sweden AB SE-721 61 Västerås Sweden Order code/Ordering data 2TLA020054R0000: Tina 1A Blanking plug Power supply Required power supply type PELV/SELV, not intended to be connected to a DC distribution network. Note: A DC distribution network is defined in IEC 61326-3-1:2017 as “Local DC electricity supply... - Page 14 Weight ~ 20 g Color Black Directives / Harmonized standards Conformity European Machinery Directive 2006/42/EC EN ISO 12100:2010 EN 62061:2005+Cor.:2010+A1:2013+A2:2015 EN ISO 13849-1:2015 EN 60204-1:2018 IEC/EN 61508-1…7 SIL3, PFH = 4.50·10 EN 62061 SIL3 EN ISO 13849-1 PL e, category 4 Certificates TÜV Nord, cCSAus Information for use in USA/Canada...
-
Page 15: Declaration Of Conformity
Declaration of conformity EC Declaration of conformity 2TLC172117M0201 Rev.E... - Page 16 UK Declaration of conformity 2TLC172117M0201 Rev.E...
