Summary of Contents for Optoma HZ40

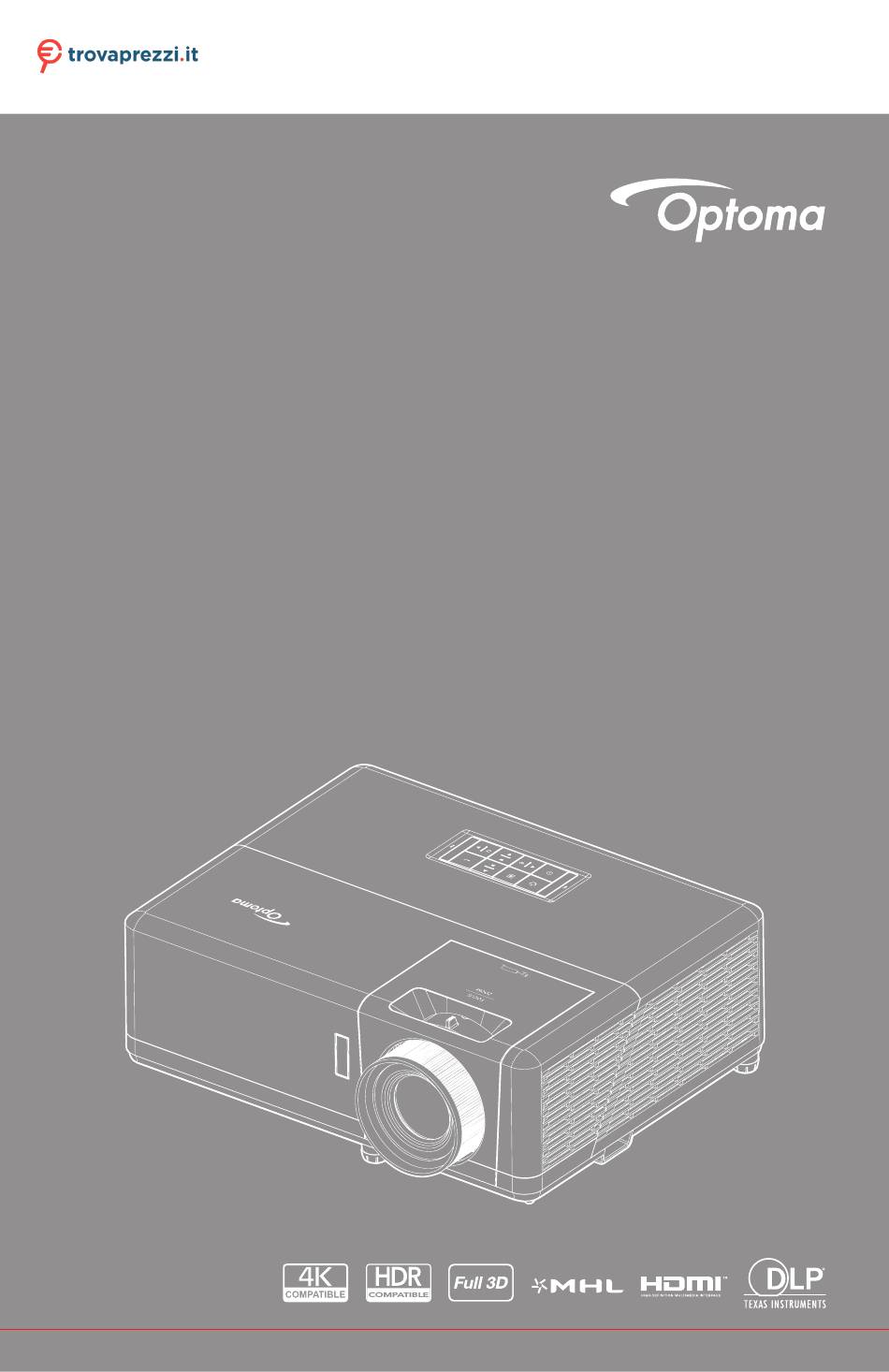

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Optoma HZ40 cerca il tuo prodotto tra le migliori offerte di Videoproiezione Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Laser Radiation Safety Information ................... 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................6 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION ..................
  • Page 3 Image size and projection distance ..................57 Projector dimensions and ceiling mount installation ..............59 IR remote control 1 codes ......................61 IR remote control 2 codes ......................63 Troubleshooting ........................65 Warning indicators ........................67 Specifications ........................... 68 Optoma global offices ....................... 69 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: Laser Radiation Safety Information

    ‡ The unit should only be repaired by authorized service personnel. ‡ Only use attachments/accessories specified by the manufacturer. ‡ Do not look into straight into the projector lens during operation. The bright light may harm your eyes. ‡ This projector will detect the life of the light source itself. ‡...

  • Page 6: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2019 Disclaimer The information in this document is subject to change without notice.

  • Page 7: Declaration Of Conformity For Eu Countries

    Operation Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003.

  • Page 8: Introduction

    Power lead Documentation Note: ‡ The remote control is shipped with the battery. ‡ *(1) For European warranty Information, please visit www.optoma.com. ‡ *(2) Available only for Asian region. Optional accessories VGA cable Note: Optional accessories vary depending on model, specification and region.

  • Page 9: Product Overview

    INTRODUCTION Product Overview 1080p model WXGA model Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item IR Receivers Kensington™...

  • Page 10: Connections

    INTRODUCTION Connections Item Item HDMI 2 Connector Kensington Lock Port Micro USB Connector Audio Out Connector HDMI 1 / MHL Connector RS-232 Connector USB Power Out (5V 1.5A) 10. RJ-45 Connector Connector VGA In Connector 11. Power Socket Audio In Connector English...

  • Page 11: Keypad

    INTRODUCTION Keypad Item Item Lamp LED Temp LED Power and Power LED Re-Sync Menu Four Directional Select Keys Keystone Correction Source Enter 10. Information English...

  • Page 12: Remote Control 1

    INTRODUCTION Remote control 1 Power Switch Freeze Enter Page- Laser Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Item Item Power On / Off 15. Brightness Mode Freeze 16. Mouse On / Off Display Blank / Audio Mute 17.

  • Page 13: Remote Control 2

    INTRODUCTION Remote control 2 User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On 15. User 3 (Assignable) User 2 (Assignable) 16. Contrast User 1 (Assignable) 17.

  • Page 14: Setup And Installation

    SETUP AND INSTALLATION Installing the projector Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
  • Page 15 SETUP AND INSTALLATION Projector installation notice Note: The fan will default to “High altitude mode” when the projector is installed within the range highlighted. 225°~315° ‡ Portrait mode Air outlet side 45° 45° 45° 45° 45° 45° ‡ Allow at least 30 cm clearance around the exhaust vent. Minimum 100mm Minimum 300mm Minimum 300mm...
  • Page 16 SETUP AND INSTALLATION Minimum 100mm Minimum 100mm (3.94 inches) (3.94 inches) ‡ Ensure that the intake vents do not recycle hot air from the exhaust vent. ‡ When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.

  • Page 17: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item HDMI Cable Audio In Cable MHL Cable Audio Out Cable HDMI Dongle 10. RS232 Cable USB Power Cable 11. USB Cable Audio In Cable 12. RJ-45 Cable VGA In Cable 13.

  • Page 18: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom and focus...

  • Page 19: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 20 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 60 degrees perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 21: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Power Switch Freeze Enter Page- Laser Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Powering on Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red.

  • Page 22: Selecting An Input Source

    Power Switch Freeze USING THE PROJECTOR Enter Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, Page- Laser Page+ etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the Keystone Volume...

  • Page 23: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press the button on the projector keypad or the Menu button on the remote control.

  • Page 24: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation Bright Cinema Display Mode Game sRGB DICOM SIM. User Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink Gray HDR/HLG...
  • Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Gamma Blackboard DICOM SIM. BrilliantColor 1 ~ 10 Warm Standard Color Temperature Cool Cold Red [Default] Green Blue Color Cyan Yellow Magenta Color Matching White(*) Hue / R(*) -50 ~ 50 [Default: 0]...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu -5 ~ 5 (depends on signal) Signal V. Position [Default: 0] DynamicBlack Eco. Image Settings Power Brightness Mode (Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%) Reset...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Front [Default] Rear Projection Ceiling-top Rear-top Screen Type 16:9 [Only for WXGA 16:10 [Default] model] Off [Default] Direct Power On Off [Default] Signal Power On Auto Power Off 0 ~ 180 (5 min increments) (min.)
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Test Pattern Brightness Contrast Sleep Timer [Default] Color Matching Color Temp Gamma Projection Test Pattern Brightness Contrast Remote Sleep Timer Settings Color Matching [Default] [depends on remote] Color Temp...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Русский Magyar Čeština ไทย Language Türkçe Tiếng Việt Bahasa Indonesia Română Slovenčina Closed Captioning Off [Default] Top left Top right Menu Location Center [Default] Bottom left Menu Settings...
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Default [Default] Logo Neutral User None Options Blue [Default] Background Color Setup Green Gray Logo Cancel [Default] Reset OSD Reset Cancel [Default] Reset to Default Network Status (read only) MAC Address...
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Regulatory Serial Number Source Resolution 00x00 Refresh Rate 0.00Hz Display Mode Remote Code 00~99 Remote 00~99 Code(Active) Power Mode Info (Standby) Light Source 0 hr Hours Network Status...

  • Page 32: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Presentation: This mode is suitable for showing in front of public in connection to the PC. ‡ Bright: Maximum brightness from PC input.
  • Page 33 USING THE PROJECTOR Brightness Adjust the brightness of the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Sharpness Adjust the sharpness of the image. Color Adjust a video image from black and white to fully saturated color. Tint Adjust the color balance of red and green.
  • Page 34 USING THE PROJECTOR RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an ‡ image. ± Reset: Return the factory default settings for RGB gain/bias. ± Exit: Exit the “RGB Gain/Bias” menu. ‡ Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: Auto, RGB, or YUV.

  • Page 35: Display 3D Menu

    USING THE PROJECTOR Display 3D menu Note: ‡ This projector is a 3D ready projector with DLP-Link 3D solution. ‡ Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. ‡ This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports. ‡...

  • Page 36: Display Aspect Ratio Menu

    USING THE PROJECTOR Display aspect ratio menu Aspect Ratio Select the aspect ratio of the displayed image between the following options: ‡ 4:3: This format is for 4:3 input sources. ‡ 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV. ‡...
  • Page 37 USING THE PROJECTOR 1080p auto mapping rule: Input resolution Auto/Scale Auto H-resolution V-resolution 1920 1080 1440 1080 1440 1080 1024 1440 1080 1280 1024 1440 1080 1400 1050 1440 1080 1600 1200 1440 1080 1280 1920 1080 Wide Laptop 1280 1800 1080 1280...
  • Page 38 USING THE PROJECTOR WXGA auto mapping rule (screen type 16x10): Input resolution Auto/Scale Auto H-resolution V-resolution 1280 1066 1066 1024 1066 1280 1024 1066 1400 1050 1066 1600 1200 1066 1280 1280 Wide Laptop 1280 1280 1280 1280 1280 SDTV 1280 1280 1280...

  • Page 39: Display Edge Mask Menu

    USING THE PROJECTOR WXGA auto mapping rule (screen type 16x9): Input resolution Auto/Scale Auto H-resolution V-resolution 1280 1024 1280 1024 1400 1050 1600 1200 1280 1280 Wide Laptop 1280 1200 1280 1152 1280 SDTV 1280 1280 1280 HDTV 1920 1080 1280 Display edge mask menu Edge Mask...

  • Page 40: Audio Mute Menu

    USING THE PROJECTOR Audio menu Audio mute menu Mute Use this option to temporarily turn off the sound. ‡ On: Choose “On” to turn mute on. ‡ Off: Choose “Off” to turn mute off. Note: “Mute” function affects both internal and external speaker volume. Audio volume menu Volume Adjust the volume level.

  • Page 41: Setup Security Menu

    USING THE PROJECTOR Sleep Timer (min.) Configure the sleep timer. ‡ Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

  • Page 42: Setup Hdmi Link Settings Menu

    USING THE PROJECTOR Setup HDMI link settings menu Note: ‡ When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector’s OSD.

  • Page 43: Setup Remote Settings Menu

    USING THE PROJECTOR Setup remote settings menu IR Function Set the IR function setting. ‡ On: Choose “On”, the projector can be operated by the remote control from the top and front IR receivers. ‡ Off: Choose “Off”, the projector can’t be operated by the remote control. By selecting “Off”, you will be able to use the Keypad keys.

  • Page 44: Setup Reset Osd Menu

    USING THE PROJECTOR High Altitude When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin. Display Mode Lock Choose “On” or “Off” to lock or unlock adjusting display mode settings. Keypad Lock When the keypad lock function is “On”, the Keypad will be locked.

  • Page 45: Network Lan Menu

    USING THE PROJECTOR Network menu Network LAN menu Network Status Display the network connection status (read-only). MAC Address Display the MAC address (read-only). DHCP Use this option to enable or disable the DHCP function. ‡ Off: To assign IP, subnet mask, gateway, and DNS configuration manually. ‡...

  • Page 46: Network Control Menu

    USING THE PROJECTOR Making a direct connection from your computer to the projector* Turn “Off” the DHCP option on the projector. Configure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”). Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector.

  • Page 47: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 48 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). On the PC (Laptop), select Start > Control Panel > Network Connections. Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
  • Page 49 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ±...
  • Page 50 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Information page Main page Tool page Contact IT helpdesk English...
  • Page 51 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 52: Info Menu

    USING THE PROJECTOR Info menu Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Remote Code ‡ Remote Code(Active) ‡ Power Mode (Standby) ‡ Light Source Hours ‡...

  • Page 53: Maintenance

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Note: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 54: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital B0 / Established B0 / Standard B0 / Detail Timing B1 / Video Mode B1 / Detail Timing) Timing Timing 720 x 400 @ 70Hz SVGA: Native timing: 640 x 480p @ 60Hz 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @...
  • Page 55 ADDITIONAL INFORMATION Analog B0 / Established Timing B0 / Standard Timing B0 / Detail Timing B1 / Detail Timing 720 x 400 @ 70Hz SVGA: Native timing: 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @ 60Hz 1280 x 800 @ 120Hz 640 x 480 @ 67Hz...
  • Page 56 If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode. ‡ Support NVIDIA 3DTV Play if there is no patent fee from Optoma. ‡ 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.

  • Page 57: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance 1080p model Diagonal Screen Size (W x H) Projection Distance ( D ) Offset (Hd) Length Size (inch) (feet) of (16:9) Width Height Width Height Wide Tele Wide Tele (inch) Screen 28.3 0.63 0.35 24.67 13.87...
  • Page 58 ADDITIONAL INFORMATION Top View Screen Screen (W) Projection Distance (D) Width Screen (H) Screen Side View Offset (Hd) Projection Distance (D) English...

  • Page 59: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...
  • Page 60 ADDITIONAL INFORMATION WXGA model Lens Unit: mm Note: Please note that damage resulting from incorrect installation will void the warranty. Warning: ‡ If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

  • Page 61: Ir Remote Control 1 Codes

    ADDITIONAL INFORMATION IR remote control 1 codes Power Switch Freeze Enter Page- Laser Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Printing-key Description code definition Power Power on/off Press to turn on / off the projector. Switch Switch Press to switch the USB mouse on / off.
  • Page 62 ADDITIONAL INFORMATION Printing-key Description code definition Page - Page- Press to page down. Laser Laser Use as laser pointer. Page + Page+ Press to page up. Keystone+ Press to adjust image distortion caused by tilting the Keystone projector. Keystone- Volume + Press to adjust to increase / decrease the volume.

  • Page 63: Ir Remote Control 2 Codes

    ADDITIONAL INFORMATION IR remote control 2 codes User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Data Printing- Custom code code Description definition Byte 1 Byte 2 Byte 3 Power on Press to turn on the projector.
  • Page 64 ADDITIONAL INFORMATION Data Printing- Custom code code Description definition Byte 1 Byte 2 Byte 3 Manually select a 3D mode that matches your 3D content. Volume + Volume + Adjust to increase volume. ▲ ◄ ▲, ◄, ►, or ▼ to select items or Four direction keys make adjustments to your selection.

  • Page 65: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 66 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...

  • Page 67: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ “Lamp” LED indicator is lit red and if “Power” indicator flashes red. ‡ “Temp” LED indicator is lit red and if “Power” indicator flashes red. This indicates the projector has overheated.

  • Page 68: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Maximum resolution 1080p ‡ 1080p Native resolution ‡ WXGA Lens Manual zoom and manual focus ‡ 1080p : 28.3” ~ 374” (optimized @82”) Image size (diagonal) ‡ WXGA: 30.1’’ ~ 301’’ (optimized @60”) ‡ 1080p: 1.0m ~ 10m (optimized @2.14m) Projection distance ‡...

  • Page 69: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタク トセンター: Canada Taiwan 47697 Westinghouse Drive, 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 70 www.optoma.com...
