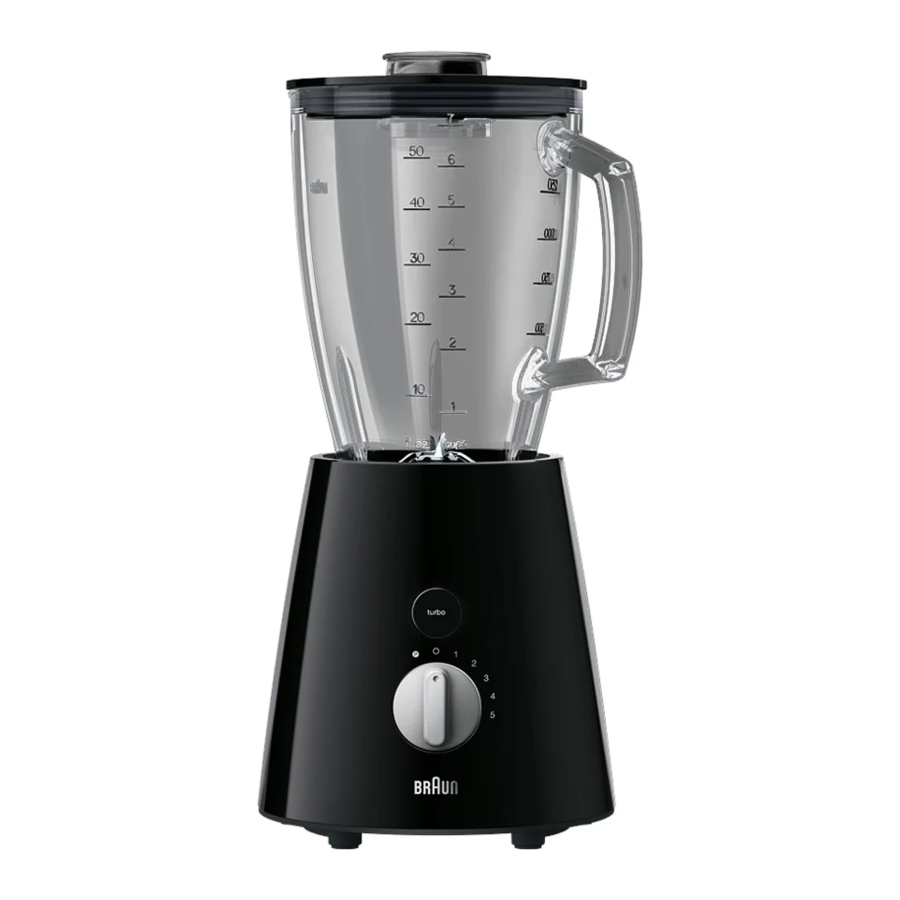

Braun Tribute Series, 4186 Manual

Description

1. Measuring cap
2. Easy-grip lid
3. Jug
4. Rubber gasket
5. Blade
6. Retainer ring
7. Power base
8. Turbo button
9. Switch
10. Cord storage

Prior to use

• Clean all parts before using the jug blender for the first time (see paragraph «Cleaning»).
• Uncoil amount of cord needed from cord storage at the bottom of the power base and connect to an outlet.

Jug assembly

• Carefully place the blade into the retainer ring.
• Position the rubber gasket onto the rim of the blade.
• Screw the jug securely into the retainer ring until the mark on the jug matches the retainer ring.

Attaching the jug

• Make sure that the switch is in the «O» position.
• Place the jug on the power base and push it down until it is securely locked into place.

How to use

• Put the food to be processed into the jug.
• Place the lid firmly on the jug. Insert the measuring cap into the lid opening and turn it clockwise to lock.

• Turn the power base on:
  Speed Applications


  1-3	light applications with liquid ingredients
  3-5	for thicker consistency – mixing both liquids and solid ingredients
  	pulse: instant power bursts (The switch does not catch at this setting. Hold the switch in pulse position or turn it to pulse position repeatedly.)
  Turbo button (1-2)	speed boost to max. speed (the button needs to be pressed continuously)

• After use, always turn the switch to the «O» position and unplug the power base.
• To remove the jug, lift it straight up; there is no need to twist it


Applications		Speed	Maximum quantity	Time
Blending	all liquids drinks, warm soups	1-5 1-5	1.25 litres 1.00 litres	40-60 seconds
Blending/Puréeing	cooked vegetable, baby food	1/turbo		40-60 seconds
Puréeing	vegetables, fruit, sauces	5	1.3 kg	1.5-2 minutes
Mixing	pancake batter yogurt based drinks and desserts	2/turbo 4-5	1.3 kg 650 g	1 minutes 1.5-2 minutes
Emulsifying	mayonnaise	5	2 eggs 300-400 g oil	1-2 minutes
Crushing	ice	/5	110 g (7 cubes)

Recipe example:
Raw vegetable soup
Cut 750 g carrots into cubes and fill them into the jug. Add 750 ml water, seasoning and herbs.
Mix for 9 seconds at maximum speed.

Practical hints

• For best puréeing results when puréeing with solid ingredients, feed small portions into the jug gradually rather than adding a large quantity at one time.
• When mixing solid ingredients, cut up into small pieces (2–3 cm).
• Always start by mixing solid ingredients with a small amount of liquid. Then gradually add more liquid through the opening in the lid.
• Always operate the unit with your hand positioned on the top.
• When preparing mayonnaise, oil may be added through the drip holes in the lid without removing the measuring cap.
• We recommend that you use the pulse mode when mixing solid or highly viscous ingredients to avoid the blade becoming stagnant.

Cleaning

Power base
Do not immerse the power base in water. Wipe clean with a damp cloth only.

Easy cleaning/rinsing of assembled jug
After emptying the jug, fill it with water. Place it on the power base and turn the switch to the «» setting several times.
Empty the jug and rinse clean.

Thoroughly cleaning the disassembled jug
Make sure the jug is empty before you unscrew the fastener ring. Exercise caution when handling the blade. All detachable parts are dishwasher-safe.

Subject to change without notice.

Before use

Please read instructions carefully and completely before using the appliance.

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children shall not play with the appliance.
• This appliance shall not be used by children.
• Children shall be kept away from the appliance and its mains cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Always switch off and unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Never immerse the unit in water or other liquids.
•
  Ensure the complete lid is placed on the jug before starting into operation.
• This appliance is designed for household use only and for processing normal household quantities.
• Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.
• Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.
• Do not use any part in the microwave.
• Do not grab into the jug while the lid is open – risk of injury by the knife.
• The appliance works only if the jug is correctly assembled on the power base.
• Before switching on, make sure the jug is properly assembled and in place on the power base with the lid on.
• Do not use without any load in the jug (e. g. solid or liquid ingredients).
• Do not use the appliance for any purpose other than the intended use described in this user manual. Any misuse may cause potential injury.
