WC-92P/S CONCRETE MIXER — INITIAL START-UP (GAS ENGINE)
Starting the Engine (Gasoline Only)
The following steps outline the procedure for starting the engine.
Depending on the type of engine employed in the mixer the
steps may vary slightly. If your mixer has an electric motor
disregard this section.

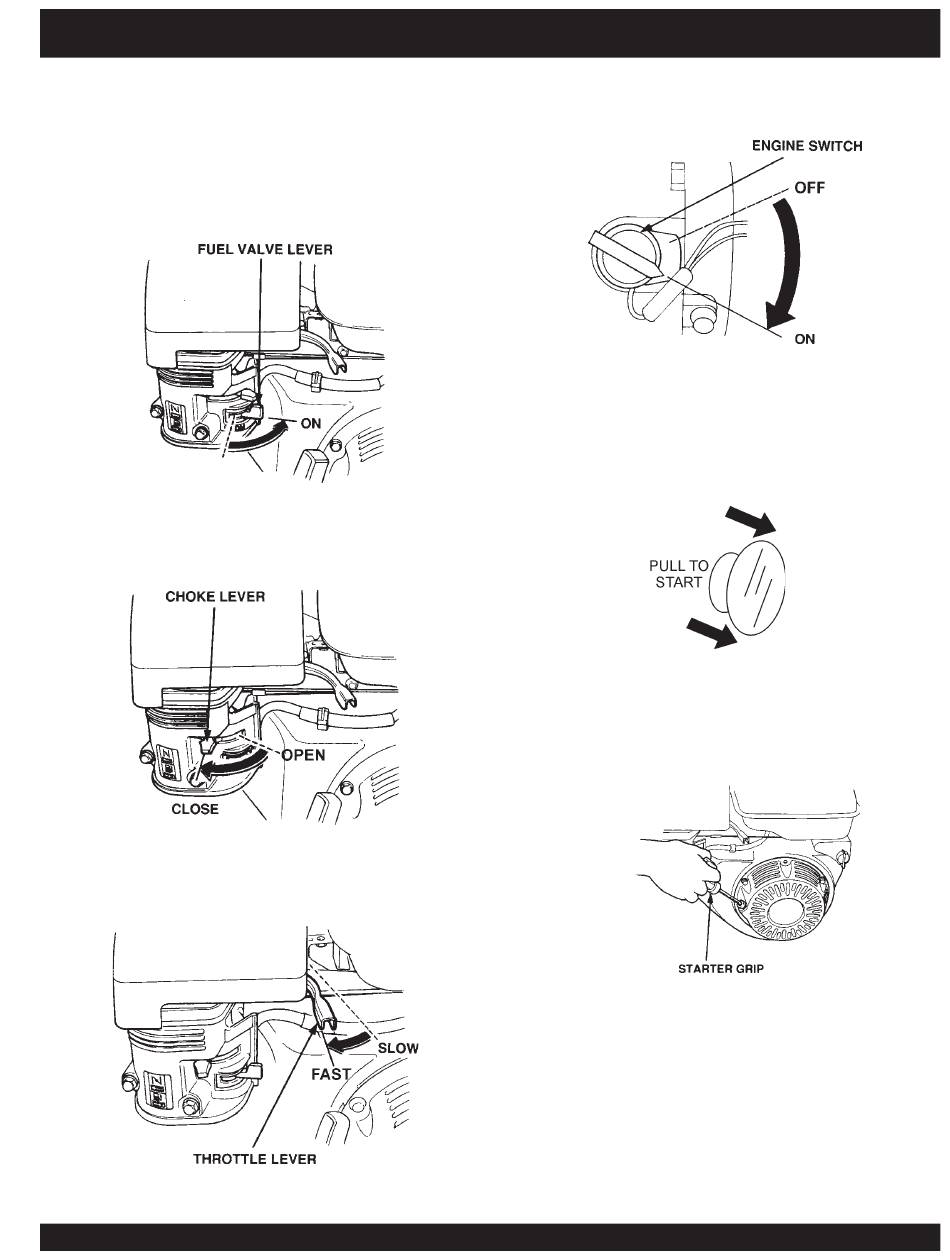

1. Move the fuel shut-off lever (Figure 10) to the ON position.
Figure 10. Fuel Shut-OFF Lever
2. To start a cold engine, move the choke lever (Figure 11) to
the CLOSED position.
Figure 11. Choke Lever
3. Move the throttle lever (Figure 12) away from the slow
position, about 1/3 of the way toward the fast position.
Figure 12. Throttle Lever
WC-92P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #7 (06/30/05) — PAGE 21
4. Turn the engine switch (Figure 13) to the ON position.
Figure 13. Engine ON/OFF Switch
5. Located at the rear of the mixer frame is the main start/
stop button (Figure 14). Pull this button outward to start the
engine.
Figure 14. Engine Start/Stop Button
6. Pull the starter grip (Figure 15) lightly until you feel
resistance, then pull briskly. The drum should be rotating at
this time.
Figure 15. Starter Grip
