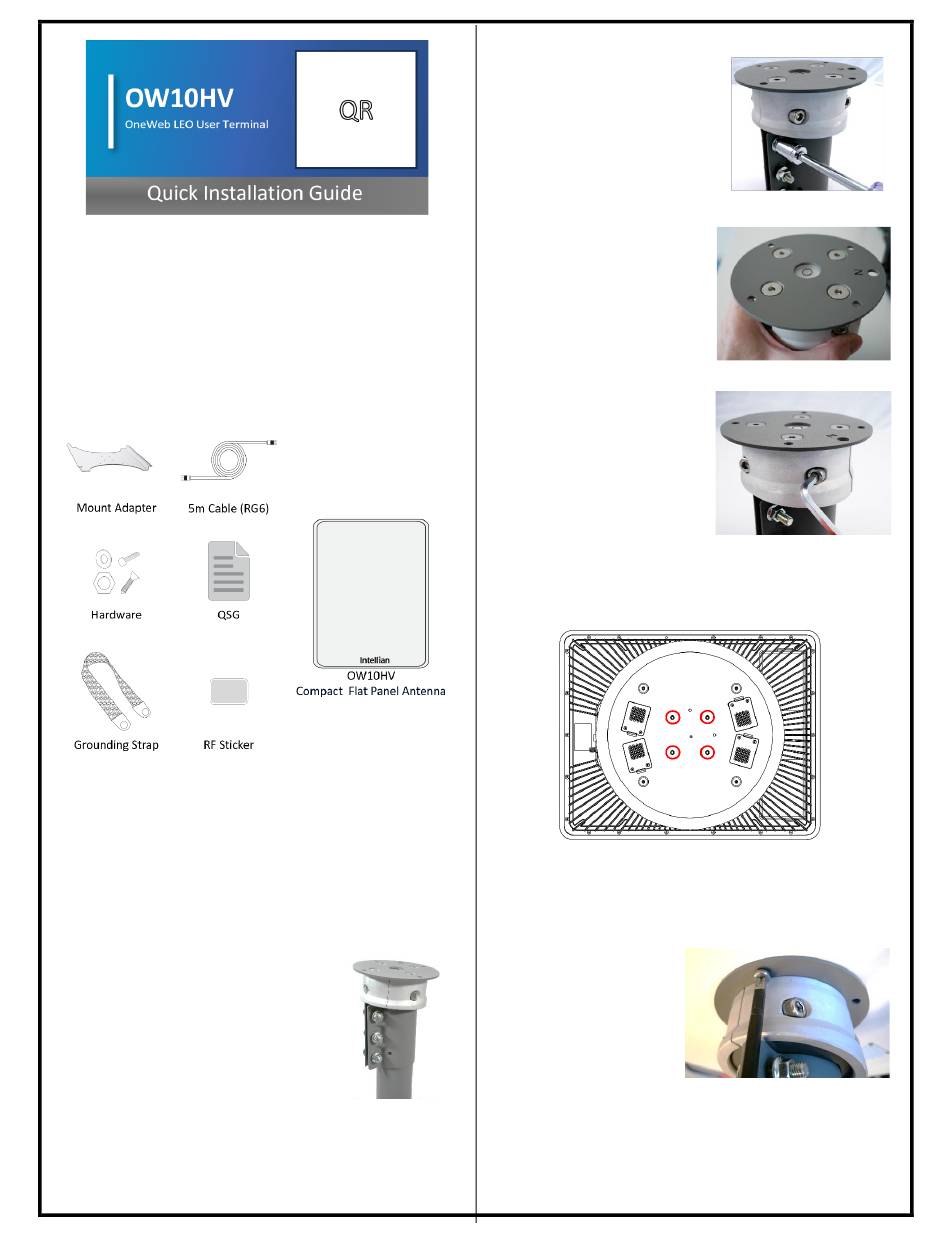

Intellian OW10HV Quick Installation Manual

Important information
This guide provides basic installation instructions for Intellian OW10HV.
Scan the QR code for the full installation and operations guide. If you
need any assistance, please contact Intellian Technical Support at
support@intelliantech.com.
Unpacking system package
Follow the steps for easy and safe unpacking. The package contains the
outdoor and indoor units. A separate package will contain the appropriate
mount. This system is designed to be installed by one person.
Outdoor unit (ODU) installation
Choose the mount that works best for the environment. Review the
instructions for the appropriate mount type from the installation and
operations guide which can be accessed via the QR code.
Attaching antenna to mount adapter
The mount adapter is used with each of the mounts. It has a built-in
leveling tool for easy adjustments. Once the appropriate mount is
assembled, follow these instructions.
1. Place the mount adapter onto the mast. Loosen
the bolts if necessary.
2. Using a 13 mm. hex wrench, tighten
the three bolts on mount adapter onto
the mast.
Leveling the mount adapter
3. Rotate the mount adapter until it is
parallel to the ground using the built-in
leveling tool. Verify that the bubble is
aligned within the circle guide.
4. Tighten the mount adapter to the
mast.
Attaching the antenna
5. Take out the four screws on the bottom of the antenna and place them
to the side.
6. Move the antenna above the mount adapter by lifting it by the handles
and carefully placing the antenna on the mount adapter.
7. Align the holes in the antenna
with the holes on the mount
adapter. Fasten the four screws
with Phillips screwdriver.
