Summary of Contents for GIMBAL S5C

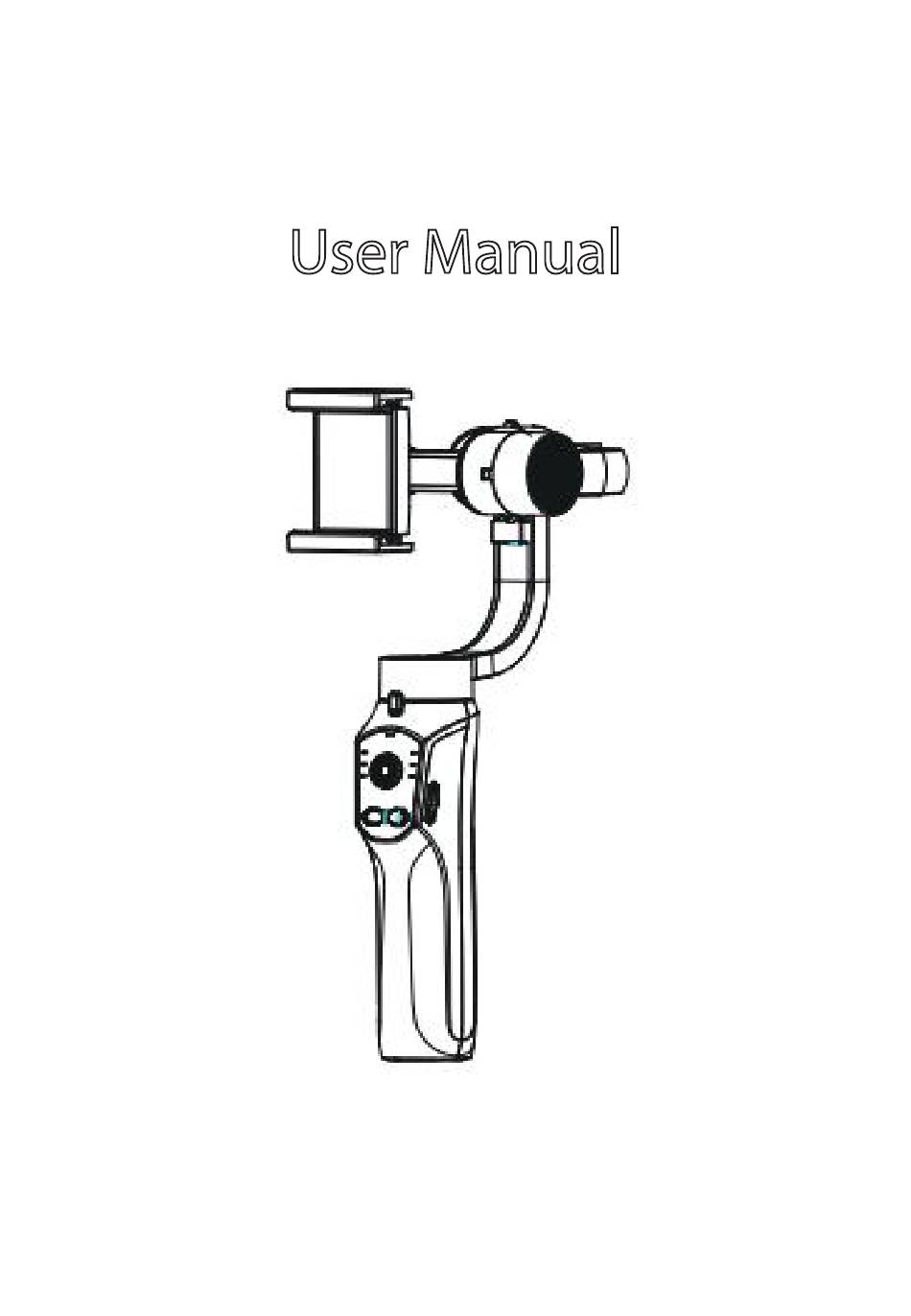

- Page 1 S5C Handheld 3-axis Gimbal Stabilizer * Smartphone is not included...
- Page 2 CONTENTS Quick start Power on/o Bluetooth connect by native camera Instructions for four modes Gimbal overview Horizontal & vertical switch Charging About APP Speci cation Caution Storage and maintenance...
- Page 3 Quick start (Don’t power on) 1. Remove the smartphone case before installing, and put the smartphone on the phone holder according to the sticker(as below picture shows), make it is at the middle of holder. Before power-on, mount your mobile phone according to the arrow sign direction 2.
- Page 4 Power o Press the power button until the indicators are o . Bluetooth connect by native camera Power on the gimbal, turn on the bluetooth on the phone, enter smartphone bluetooth setting page, choose the device name “GP5-xxxx” to connect.
- Page 5 Instructions for four modes All Follow(AF): The Roll axis is locked, the Pan (left/right) and Tilt(up/down) axes will follow the handle movement. ※ Default mode upon powering on Half Follow(HF): Tilt & Roll axes are locked. Pan axis rotates left/right smoothly with the handle movement.
- Page 6 Lock Full(LF): Pan,Tilt, Roll axis are all locked. The camera remains still and stable, which means the camera cannot follow the movement of the handle First person view(FPV)：Pan, Tilt, Roll axis follow the movement of the handle...
- Page 7 Other Working Mode Phone Go Long press the shutter button until the AF light is ashing, gimbal enters Phone Go mode, release the shutter button, gimbal will exist Phone Go mode.
- Page 8 Gimbal Overview 1.Mobblie Phone Holder 9.Joystick 2.Handle 10.Mode switch button 3.Pitch Motor 11.Tigger Button 4.Adjustable Arm 12.Zooming Wheel 5.Pan Motor 13.Micro USB 6.Mode indicator 14.Roll Motor 7.Battery indicator 15.Rope hanging hole 8.Power Button...
- Page 9 Horizontal & Vertical Switch (Three switching ways) Way 1: 1. Put the gimbal as the below picture shows 2. Press the mode button 3 times, switch from horizontal mode to vertical mode; 3. Press the mode button three times again, switch from vertical back to horizontal mode;...
- Page 10 Way 3: Gesture switch 1. Hold the gimbal perpendicular to the ground; 2. Tilt the gimbal left or right with 70°; 3. Gimbal will go to vertical mode automatically; 4. Gimbal will back to horizontal model automatically when hold the gimbal upright;...
- Page 11 Download the Gimbal Pro APP Scan the QR code or search “Gimbal pro2” on the Google play store or “Gimbal pro” on App store. ※ Gimbal Pro requires iOS 12.0 system and later or Android 8.0 system and later...
- Page 12 APP interface overview: App 1. Video/Photo mode 9. Gimbal power display 2. Shooting function select 10. Phone power display 3. Shoot button 11. Flash 4. Front/Rear camera switch 12. Home page 5. Album 13. Camera parameters 6. Bluetooth icon 14. Gimbal mode adjust 7.
- Page 13 Speci cation Gimbal Dimension 112 *70 *289mm Net Weight 473g Payload 280g width: 55-90mm diagonal: no more than Compatible smartphone 192mm/7.72inch; range thickness: 7-12mm Tilt Angle 330° Roll Angle 160° Pan Angle 360° Controllable Tilt Angle +75°/-245° Controllable Roll Angle +80°/-80°...
- Page 14 Caution 1. Ensure the motor rotation is not blocked by external force during and after the stabilizer is powered on; 2. Please do not contact with sea water or corrosive liquid; 3. Please do not disassemble the stabilizer (except for the detachable accessories in the manual);...
- Page 15 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
