Summary of Contents for RapidAir K3060

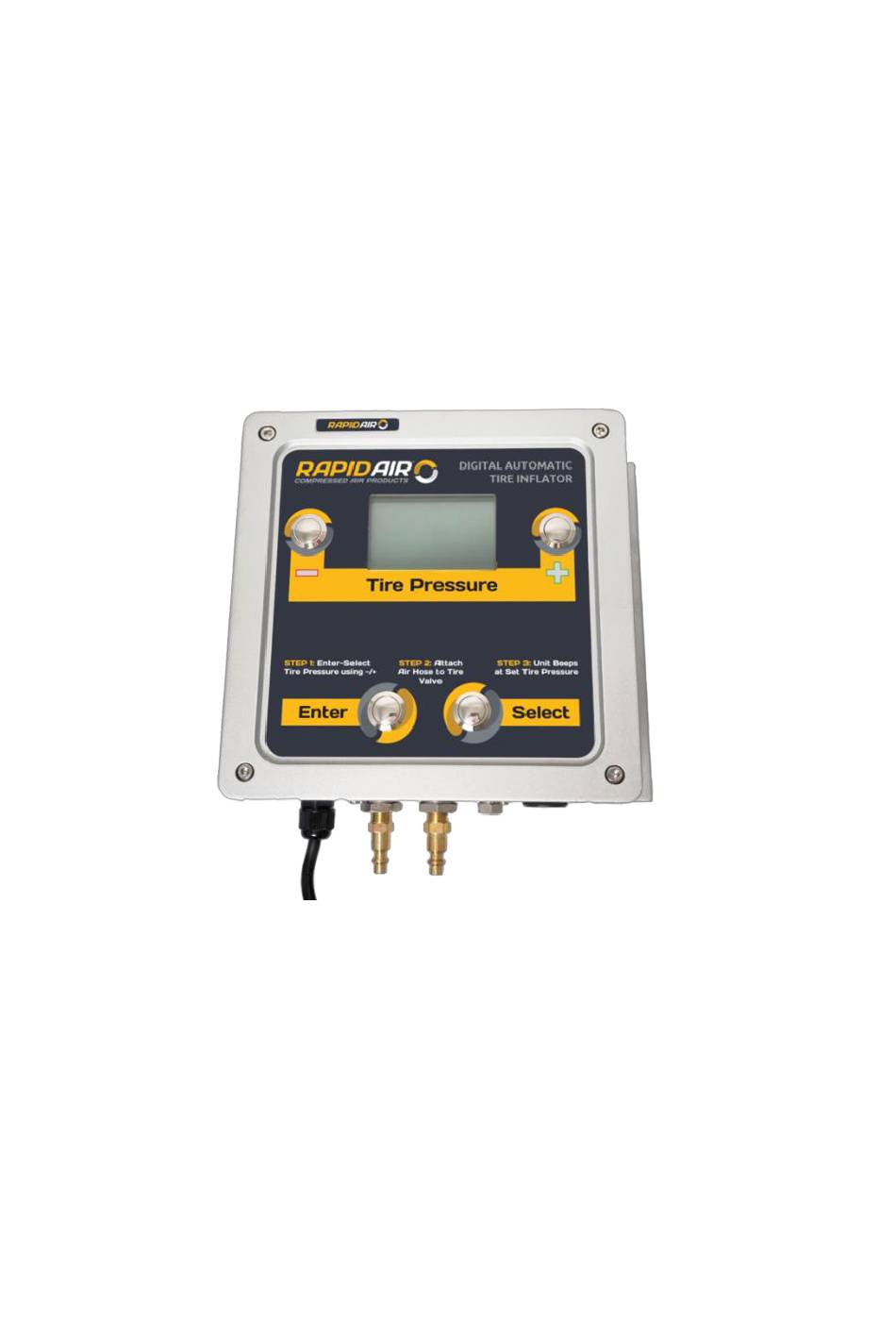

- Page 1 Digital Automatic Tire Inflator K3060 OWNER’S MANUAL RapidAir Products 6111 Mill Creek Drive, Auburndale, WI USA 1-800-954-3310 | rapidairproducts.com...
- Page 3 Thank you for selecting our Digital Automatic Tire Inflator. Please read this manual before carrying out any installation or service procedure. This manual is an essential part of the product. Do not remove, tear, or amend any manual parts for any reason. It must be made available to the operator and maintenance personnel to ensure staff training.
-
Page 4: Table Of Contents
Table of Contents Introduction----------------------------------------------------------------- 5 Control Panel-------------------------------------------------------------- 6 K3060------------------------------------------------------------------------ 8 3.0.1 Specification 3.0.2 Installation 3.0.3 Function & Operation 3.0.4 Components List Troubleshooting---------------------------------------------------------- 11 Wiring Diagram----------------------------------------------------------- 12 Installation & Maintenance--------------------------------------------- 13 6.0.1 Installation Notes 6.0.2 Installation 6.0.3 Maintenance 6.0.4 Warranty General Specification--------------------------------------------------- 15... -
Page 5: Introduction
Introduction The following symbols will be used throughout the manual. This information is for your safety and to prevent damage to this product. CAUTION WARNING The hazard or unsafe practice The hazard or unsafe practice could result in minor injury could result in severe injury or death... -
Page 6: Control Panel
Control Panel (K3060) Switch Function: Reduce final target pressure Increase final target pressure Select: Unit Change/OPS set SELECT Select Confirm/Start to inflate/Stop. Used this button to start ENTER the inflation process when the pressure in the tire is less than:... - Page 7 LCD display ① ② ③ ④ Unit display ① Pressure display ② Function select display ③ Rolling Bar ④...
-
Page 8: Specification
K3060 3.0.1 Specifications Material: Die cast Aluminum Enclosure Degree of Protection: IP56 Dimensions: 9”*10.5”*3.5” (23*27*8.5cm) Shipping Weight: 12lbs (5.5kgs) 3.0.2 Installation 1. Unpack the unit WARNING 2. Hold the unit up on the wall and mark where the four (4) holes are Ensure that the product is to be drilled. -
Page 9: Function & Operation
3.0.3 Function and Operation The device is including the OPS (over pressure setting) function. Operation 1. Unit select The device has four units that can be chosen by the user, which is kPa-psi- bar-kg/cm2 The unit set here will become the default unit for the following usage; you do not need to set the unit each time. -
Page 10: Components List
OPS Function: Note the tire has to be less then 3 psi or 0.2 bar to use OPS Function. 1. Press 【SELECT】 to enter the function setting mode. After selecting the mode, press 【SELECT】 again to enter the setting directly. Press 【SELECT】 twice, and the device will quit out of the setting mode without saving any selection. -
Page 11: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Air leak Leak in the connection Check the pneumatic Connection The inflator works, Obstruction in filters or Clean the filters and but no air inflated in air system check the air tube No display Check power supply Reconnect Inflation does not Air hose... -
Page 12: Wiring Diagram
Wiring Diagram K3060... -
Page 13: Installation & Maintenance
During the inactivity period, please package the inflator and keep it away from dampness, heat, impact, etc. • K3060 can be installed outside, but a shelter is suggested to extend the service life and protect the equipment from bad weather. •... -
Page 14: Maintenance
Although the device does not require maintenance, a routine check of the pneumatic connection is suggested. Qualified personnel should carry out daily maintenance. If more advanced maintenance is required, inquire at RapidAir Products for guidance. 6.0.4 Warranty The Digital Automatic Tire Inflator model K3060wall-mounted tire inflator is... - Page 15 Inflation Range: 0.5-10bar (1000kPa/145psi/10kg/cm Accuracy: +/-0.02bar (+/-0.3psi) Max Inlet Air Supply: 10.5bar (150psi) Supply voltage: AC 110~240V (50~60Hz) Watt: 12W Max. Working Temperature: 14℉~122℉ (-10℃~50℃) Relative Humidity: up to 95% RH non-condensing...
