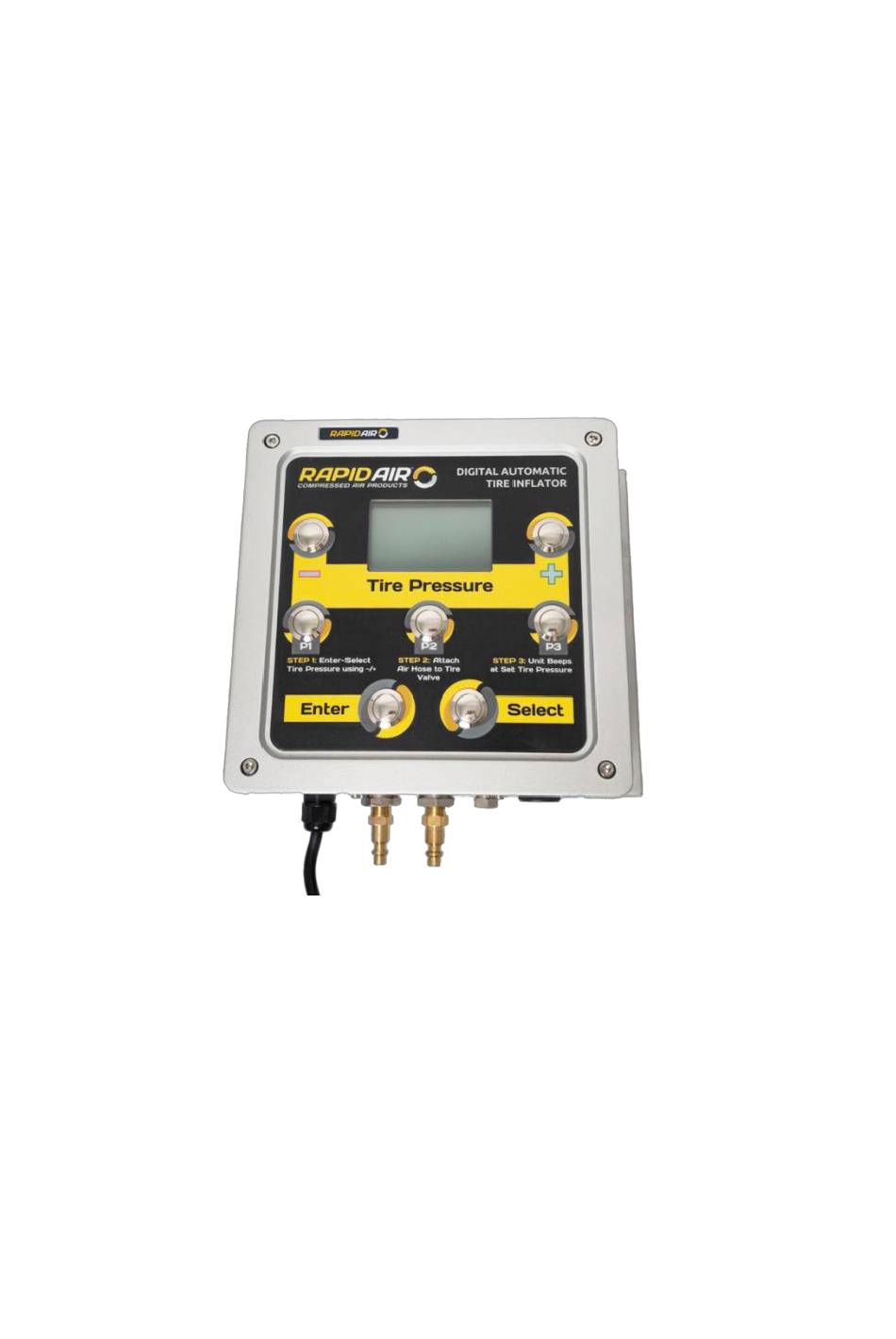

- Page 1 Digital Automatic Tire Inflator K3063 OWNER’S MANUAL RapidAir Products 6111 Mill Creek Drive, Auburndale, WI USA 1-800-954-3310 | rapidairproducts.com...
- Page 2 Thank you for selection our Digital Tire Inflator, please read this manual before carrying out any installation or service procedure. This manual is an integral and essential part of the product, please keep it away from damp, heat, dust, oils, do not remove, tear or amend any parts of the manual for any reason.
-
Page 3: Table Of Contents
Table of Contents Introduction---------------------------------------------------------------- 4 Control Panel------------------------------------------------------------- K3063----------------------------------------------------------------------- 7 3.0.1 Specification 3.0.2 Installation 3.0.3 Function & Operation 3.0.4 Components List Troubleshooting---------------------------------------------------------- 11 Wiring Diagram----------------------------------------------------------- 12 Installation & Maintenance-------------------------------------------- 6.0.1 Notes in Advance 6.0.2 Installation 6.0.3 Maintenance 6.0.4 Warranty---------------------------------------------------------- 15 General Specification----------------------------------------------------- 15... -
Page 4: Introduction
Introduction The following symbols will be used throughout the manual. This information is for your safety and to prevent damage to this product. CAUTION WARNING The hazard or unsafe practice The hazard or unsafe practice could result in minor injury could result in severe injury or death... -
Page 5: Control Panel
Control Panel Switch Function: Reduce final target pressure Increase final target pressure Select: Unit Change/OPS set/N2 set SELECT Select Confirm/Start to Inflate/Stop. Use this button to start the ENTER inflation process when the pressure in the tire is less than: 3 Psi, 20 Kpa or 0.2 Bar. - Page 6 LCD display ① ② ③ ④ Unit display ① Pressure display ② Function select display ③ Rolling Bar ④...
-
Page 7: Specification
Digital Automatic Tire Infiltrator K3063 3.0.1 Specifications Material: Die cast Aluminum Enclosure Degree of Protection: IP56 Dimensions: 9”*10.5”*3.5” (23*27*8.5cm) Shipping Weight: 12lbs (5.5kgs) 3.0.2 Installation 1. Unpack the unit WARNING 2. Hold the unit up on the wall and mark where the four (4) holes are Ensure that the product is to be drilled. -
Page 8: Function & Operation
3.0.3 Function & Operation The device is including the OPS (over pressure setting) function. Operation: 1. Unit select The device has four units that the user can select: kPa-psi-bar- kg/cm The unit set here will become the default unit for the following usage: you do not need to set the unit each time. - Page 9 3. Inflation & Deflation ① Press 【+】or【-】to select target pressure. ② Connect with the tire, ensure no air leaks, and the inflator will work automatically. ③ When inflation is finished, machine will stop automatically and BEEP to remind users. ④ Disconnect the air hose from the tire and finish inflation. OPS Function: Note the tire has to be less then 3 psi or 0.2 bar to use OPS Function.
-
Page 10: Components List
4. If tire pressure is lower than 3 psi or 0.2 bar, the device will not start automatically. Press 【E】for 2 seconds to start manually. 5. During inflation, the device checks tire pressure automatically. The rolling bar moves from left to right, which means inflating, and right to left, which means deflating. -
Page 11: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Air leak Leak in the connection Check the pneumatic Connection The inflator works, Obstruction in filters or Clean the filters and But no air inflated in air system check the air tube No display Check power supply Reconnect Inflation does not Air hose... -
Page 12: Installation & Maintenance
K3063 Installation & Maintenance... -
Page 13: Notes In Advance
6.0.1 Notes in advance • During the inactivity period, please package the inflator and keep it away from dampness, heat, impact, etc. • After unpacking the inflator, the packing materials should be disposed of according to the laws and regulations applicable where they are being used. -
Page 14: Maintenance
6.0.3 Maintenance Daily Maintenance Although the device does not require maintenance, a routine check of the pneumatic connection is suggested. Qualified personnel should carry out daily maintenance. If more advanced maintenance is required, inquire at RapidAir Products for guidance. 6.0.4 Warranty... -
Page 15: General Specification
This model wall-mounted tire inflator is warranted for 1 year from the date of invoice, except for that the products has been damaged by misuse, faulty installation, incorrect maintenance or accidental damage, unauthorized modification or repair, force majeure. Warranty does not cover air hoses, hose connectors (hose chucks).
