Summary of Contents for voxicon D24FT9

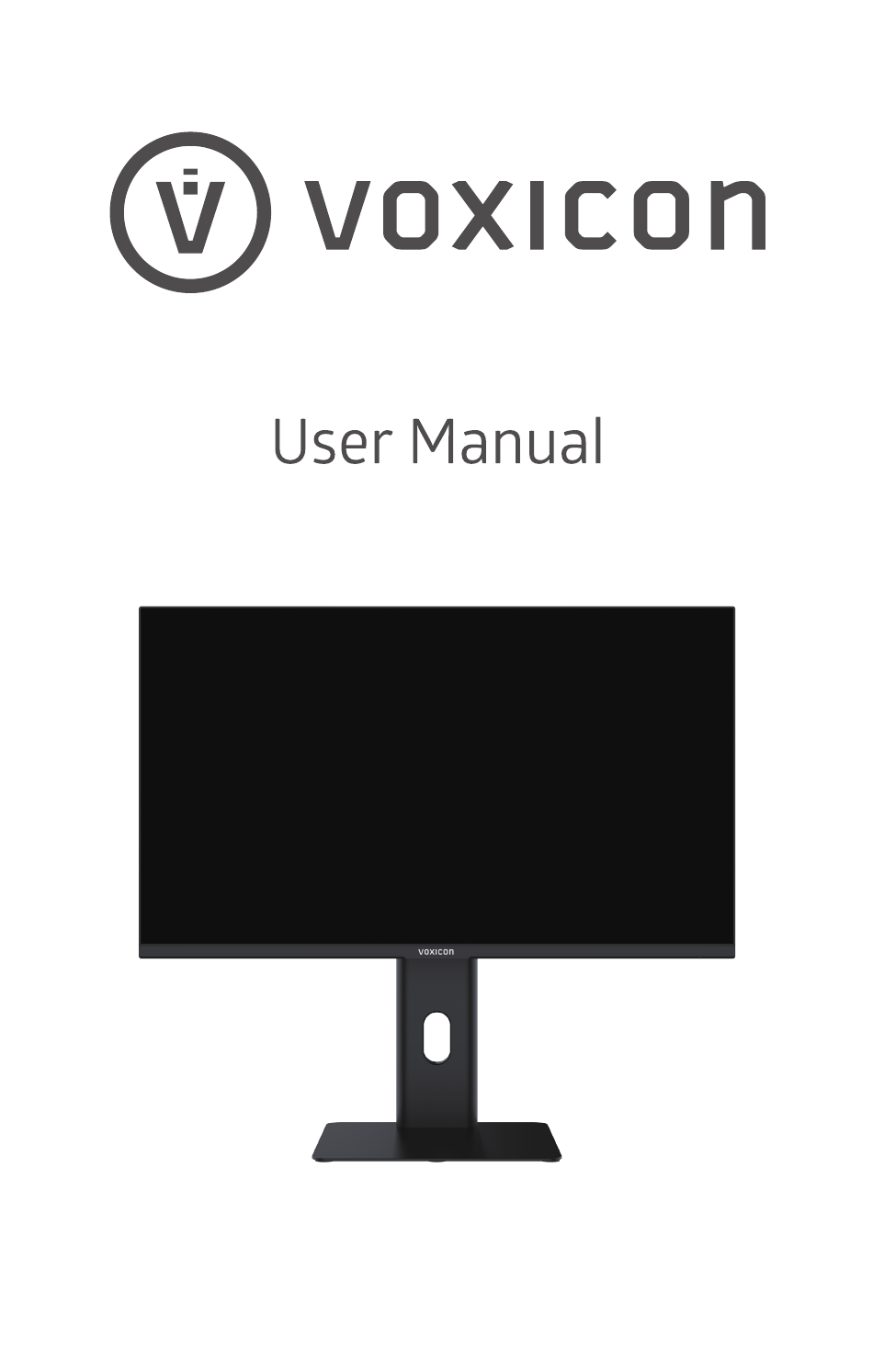

- Page 1 D24FT9...
-
Page 3: Table Of Contents
Content TCO Certified ·························································1 Important Safety Precautions ············································2 1. Product Description ··················································3 1.1 Packing list ························································3 2. Installation and Connection ···········································3 2.1 Display installation ···············································3 2.2 Instruction of Base Installation ······································4 2.3 Signal line connection ·············································5 2.4 Audio output ····················································5 3. -
Page 5: Tco Certified
A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories. -
Page 6: Important Safety Precautions
Important Safety Precautions 1. Please read all the instructions carefully before using this product. 2. BE SURE TO unplug the power cord when cleaning LCD. Never clean it with liquid detergent or spraying detergent, but wipe it with wet soft cloth. If it is still not clean, please use special detergent for LCD. -
Page 7: Product Description
1. Product Description 1.1 Packing list Please check the following items in the packing case before installation: ■ One LCD display (including the base) ■ One cord, One Cable ■ One user manual If any of above items is missing, please contact with the dealer. Attention: Accessories shall be subject to the real conf 2. -
Page 8: Instruction Of Base Installation
2 2 . Instruction of Base Installation 1. Base installation steps: 步骤： ① Connect the base and stand with the screws in the base. 1、将底座插入支撑，锁附2颗M4*16螺丝. ② Align the two hooks on the base with the two holes on the machine, tilt them in the 2、将整个底座沿着箭头方向对着孔倾斜插入后壳；然后顺时针向下压... -
Page 9: Signal Line Connection
2. Signal line connection Connect the signal line to output interfaces signal of VGA/HDMI signals of PC, and the connect the other end of the signal line to the corresponding signal input port of the display. 2. Audio output This machine supports earphone audio output. 3. -
Page 10: Basic Troubleshooting
5. Basic Troubleshooting Troubleshooting Phenomenon Check whether the display and the socket are well 1. Light out/power connected to power, and whether the display is in the indicator light is off shutdown mode. Enter the menu “Image Setting” and select “Auto Image 2. -
Page 11: Service, Warranty And Pixel Policy
Pixel Policy Rules Dustin’s Pixel Policy for VOXICON Displays: Dustin will judge pixel error on VOXICON according to ISO 13406-2 class 2, allowing maximum 2 constant bright pixels, 2 constantly dark pixels, 5 defective subpixels, 2 cluster errors (incorrect pixels in a 5 * 5 pixel range).
