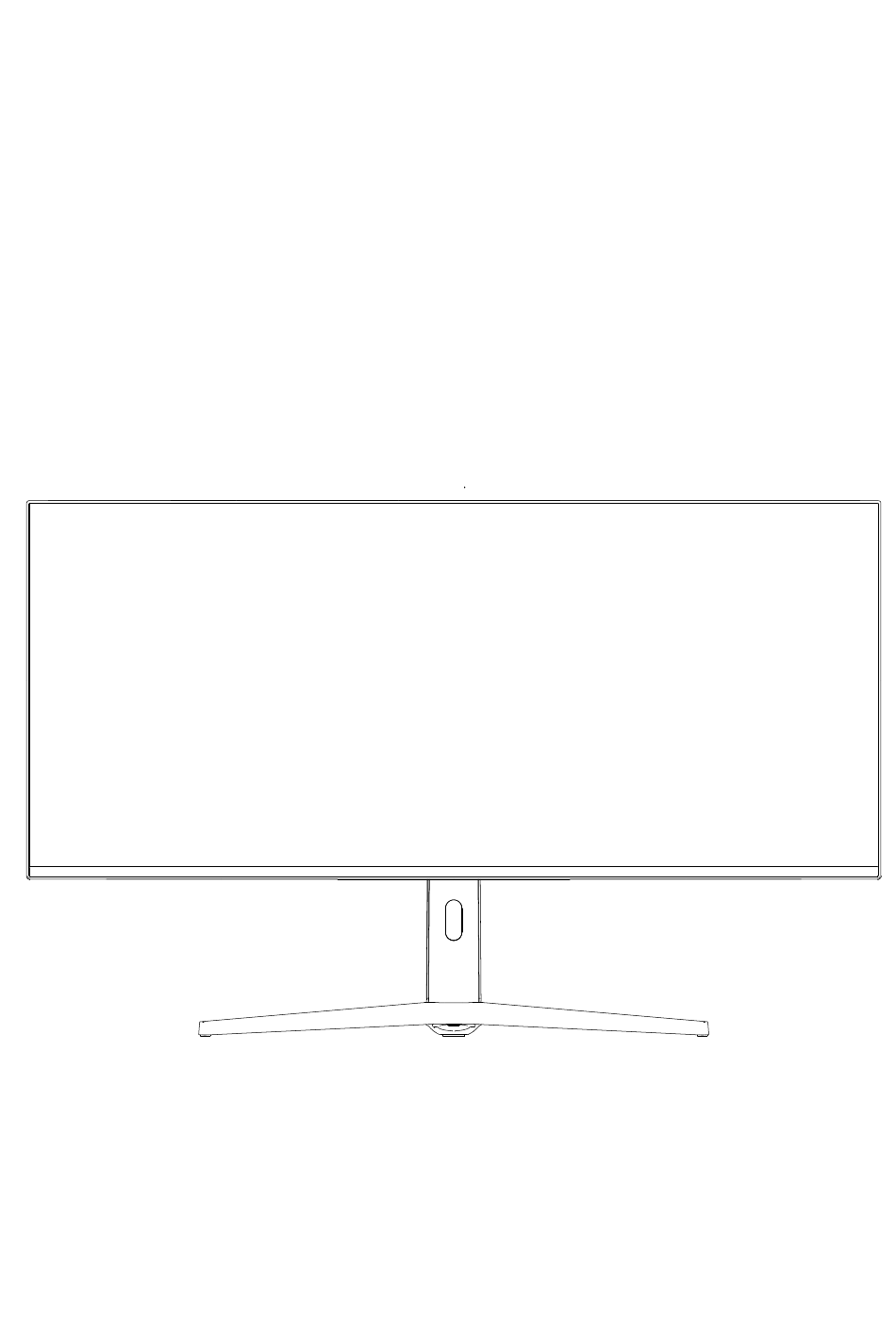

VXD-O40WUHD-P
USER MANUAL
INSTRUCTION MANUAL
Please read this manual thoroughly before use,and keep it handy for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VXD-O40WUHD-P and is the answer not in the manual?

Questions and answers

Related Manuals for voxicon VXD-O40WUHD-P

Summary of Contents for voxicon VXD-O40WUHD-P

  • Page 1 VXD-O40WUHD-P USER MANUAL INSTRUCTION MANUAL Please read this manual thoroughly before use,and keep it handy for future reference...

  • Page 4: What's Included

    WHAT’SINCLUDED USB-C USB-B CONNECTIONS AVAILABLE ON THE MONITOR HDMI USB-C USB-B USB-A USB-A AUDIO OUT DC 24V Used to connect a compatible device. Supports HDMI 1.4. HDMI Port Used to connect a compatible device. Supports Display Port 1.2. Display Port Supports data tramsmission external charging and image display.

  • Page 5: Initial Setup

    INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn in on (The indicator will be blue). 2. Connect the relevant cable to the corresponding input on the monitor.The source will beautomatically detected. 3.

  • Page 6: Input Source

    OSD MENU A . Input Source 5120x2160@75Hz Type-C Setting HDMI Setting Multi-Window 5120x2160@75Hz Switch the signal input to Type-C, DP, HDMI,or have the Select the source. B . Brightness/Contrast 5120x2160@75Hz Setting Setting Multi-Window 5120x2160@75Hz Brightness: Change the display brightness value from 0 to 100. Contrast : Adjust the display contrast value from 0 to 100.

  • Page 7: Color Setting

    C . Color Setting 5120x2160@75Hz Picture Mode Standard Setting Warm Setting Low Blue Light Multi-Window 5120x2160@75Hz Gamma: Change the display Gamma Value to:2.0,2.2,2.4. Picture Mode: Change the pre-set mode to:Standand photo movie Game FPS RTS. Color Temperature : Change the color temperature to:Normal,Warm,Cool,User. Hue: Change the display Hue value from 0 to 100.
  • Page 8 E . Display 5120x2160@75Hz 21:9 Setting Setting Multi-Window 5120x2160@75Hz Aspect Ratio:Change the image aspect ratio to Wide Screen,4:3,21:9,Auto. F . Audio 5120x2160@75Hz Settings Settings Multi-Window 5120x2160@75Hz Mute: Turn On or Off to mute the audio source. Volume: Change the audio source volume from 0 to 100.

  • Page 9: Multi Window

    H . Multi-Window 5120x2160@75Hz Multi-Window Sub Win2 Input Setting PIP Size Medium Setting PIP Position BottomRight Swap Multi-Window 5120x2160@75Hz Multi-Window: Turn the Multi-Window feature On or Off. Sub Win2 Input: You can enter this function. PIP Size: Adjustable PIP size. PIP Position: Adjustable PIP Position.
  • Page 10 I . Other 5120x2160@75Hz FreeSync (Adaptive Sync) Setting MPRT Setting Flicker Free Firmware Update Reset Multi-Window 5120x2160@75Hz FreeSync Mode: Turn FreeSync On or Off. HDR: Turn HDR On(requires HDMI 2.0 input). MPRT: Turn MPRT On or Off. Flicker Free: Turn Flicker Free On or Off. Firmware Update: Update the monitor firmware with proper firmware Using the USB port.

  • Page 11: Specification

    SPECIFICATION Model VXD-O40WUHD-P Screen Size 40” Aspect Ra�o 21:9 Backlight Brightness 300cd/m² Panel Type Resolu�on 5120x2160 Refresh Rate 75Hz Response Time 14ms Viewing Angle 178º/178º (CR>10) Contrast Ra�o 1000:1 VESA Moun�ng 100x100mm Colours 1.07B AMD FreeSync G-Sync HDR10 Signal Input...
