Summary of Contents for Faderfox micromodul LV2
- Page 1 LV2 User manual...
-
Page 2: Table Of Contents
Which software can be controlled ....................8 Settings in the system mode ....................... 9 Preparations in Live ......................... 11 Working with Live ........................12 Parameter-Feedback ......................... 14 Expanded sets........................... 17 Controller numbers........................19 Troubleshooting ........................24 Page 1 micromodul LV2 User manual... -
Page 3: Provision Of Guarantee And Product Liability
Use a soft towel or brush to clean the instrument. Please do not use any cleaning liquids or water, so you avoid any damages to the instrument. Page 2 micromodul LV2 User manual... -
Page 4: Introduction
LED’s are as much a part of electronic music as steering wheel is to a car. Micromodul LV2, also called just LV2, is a pocket-size, custom-made controller for one of the most creative music programs in recent history. The LV2 is very compact and easy to transport, and you do not even need the mains adaptor, it works with standard and rechargeable batteries. -
Page 5: Product Description

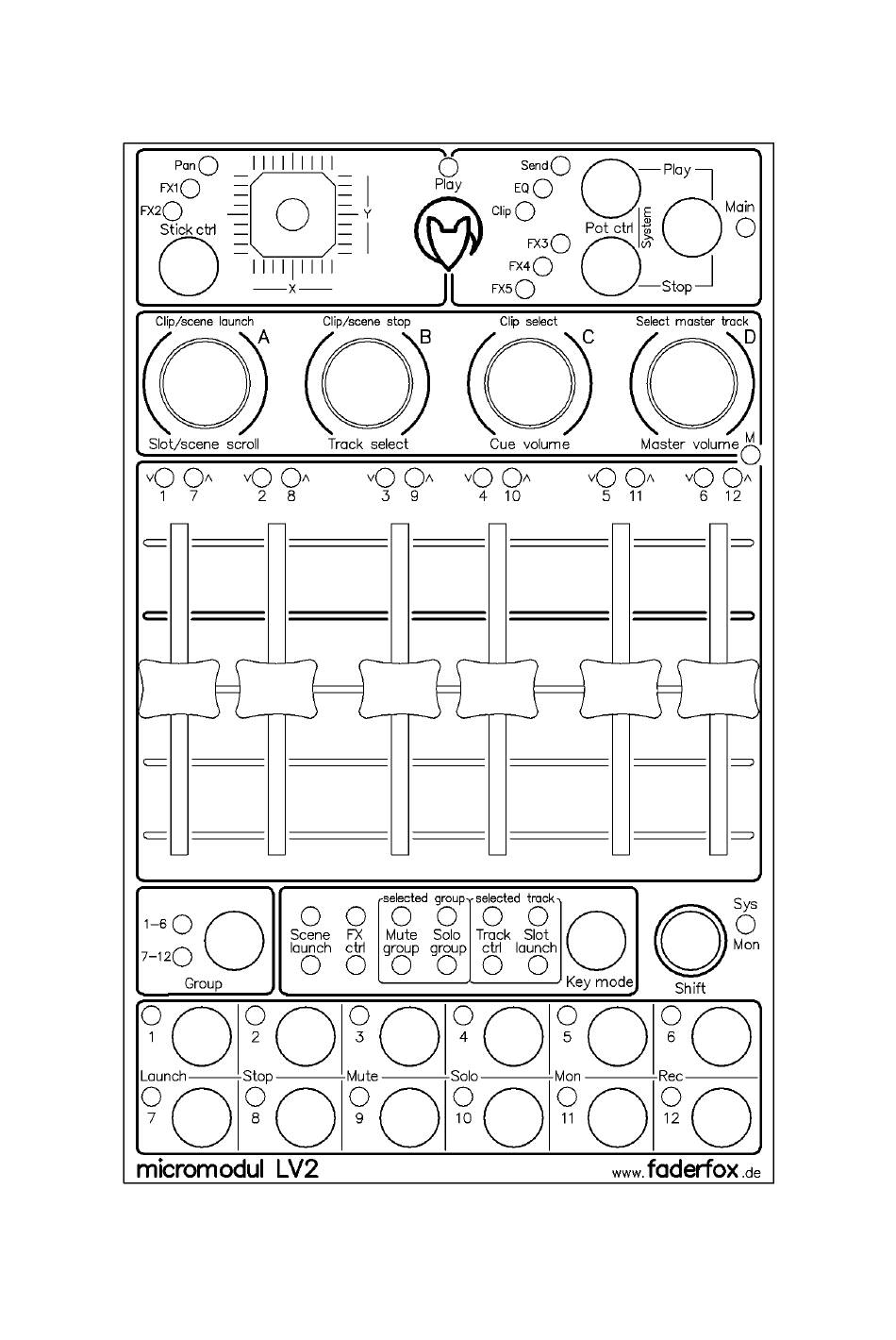

Silver aluminium front plate with anodised coating (abrasion resistant) and inscriptions 51 LED's in different colors to display various information (low light shining of all LED’s for better orientation in dark club atmosphere) High-quality faders, encoders and joystick from ALPS Page 4 micromodul LV2 User manual... -
Page 6: System Requirements
Quick Access After you did all of the relevant midi-connections and settings in Live (see further down) and loaded one of our setups (preferably ‘micromodul LV2 V01 A6M6 Live50.als’), the fun may begin. Use your mouse to drag and drop a few clips from the browser to any slots in the different first 6 audio-tracks. - Page 7 After letting go of the Shift-key the encoder controls the effects again. To start or stop Live globally you can also push both the Pot-ctrl-keys in combination with the Main-key. Page 6 micromodul LV2 User manual...
-
Page 8: Tips
You can find a suitable mains adaptor in our accessories. The adaptor plug (hollow plug: 2.1 mm inner / 5.5 mm outer) must be polarised according to the information on the connection plate: outer ring = minus, inner pin = plus. Page 7 micromodul LV2 User manual... -
Page 9: Connecting To A Computer
(13 tracks) or switched to five fixed groups (Clip, FX3, FX4, FX5 & Main). The joystick can control, dependent from the selected track (13 tracks) or from 2 further fixed groups (FX1 & FX2), two parameters. The 12 coloured track buttons on the Page 8 micromodul LV2 User manual... -
Page 10: Settings In The System Mode
- upper LED (Send) on = internal control; after play-command the Play-LED is on; after stop-command it is switched off - middle LED (EQ) on = external control; after arriving midi-start-command the Play-LED is on, after arriving midi-stop-command it is switched off Page 9 micromodul LV2 User manual... - Page 11 By starting the system mode all start settings are inherited. This is very useful in order to find all control elements set for the most used targets right at the start without any annoying switching. Page 10 micromodul LV2 User manual...
-
Page 12: Preparations In Live
LV2 V01 A12 Live41.als with 12 audio-tracks micromodul LV2 V01 A8S4 Live41.als with 8 audio-tracks and 4 sends micromodul LV2 V01 A6M2S4 Live41.als with 6 audio-tracks, 2 midi-tracks and 4 sends micromodul LV2-DJ2 V02 A6 Live41.als with 6 audio-tracks and send-control via DJ2 micromodul LV2 V01 A6M6 Live50.als with 6 audio-tracks and 6 midi-tracks... -
Page 13: Working With Live
LED track 7-12). But the LED can also be used for the so called faderpos-indication (has to be activated in the system mode). You can switch between track- and faderpos-indication by pressing the Shift- Page 12 micromodul LV2 User manual... - Page 14 The track is indicated by the key LED’s. The master-track can be only selected with the encoder (to select the master-track hold the shift-key and the button of the right encoder). Page 13 micromodul LV2 User manual...
-
Page 15: Parameter-Feedback
The indication of the function Scene-launch is first generated in the LV2 itself and do not have to be identical to the Live-face, but it displays always the scene that was started last with Page 14 micromodul LV2 User manual... - Page 16 (right) micromodul instead, the feedback killer- function has to be switched off in every controller, otherwise no passing through of the midi- data from the external instrument takes place. The following drafts show 2 possible configurations: Page 15 micromodul LV2 User manual...
- Page 17 Page 16 micromodul LV2 User manual...
-
Page 18: Expanded Sets
Please also read the settings concerings the feedback in the chapter above. Working with two micromodul LV2's or LC2’s Multiple controllers is an especially attractive solution for the Live sequencer. The LV2 was designed in order to be expandable. - Page 19 Of course, we supply you with two files for the configuration of the necessary presets: - micromodul LV2-DJ2 V02 A6 Live41.als with 6 tracks and send controls with the DJ2 - micromodul LV2-DJ2 V02 A6 Live50.als with 6 tracks and send controls with the DJ2 You get further explaination in the DJ2 manual.
-
Page 20: Controller Numbers
A,B,C,D (FX3) [rel] 24,25,26,27 (Ch=12/15) A,B,C,D (FX4) [rel] 28,29,30,31 (Ch=12/15) A,B,C,D (FX5) [rel] 32,33,34,35 (Ch=12/15) A,B,C,D (Clip) Push 104,105,106,107 (Ch=12/15) A,B,C,D (FX3) Push 108,109,110,111 (Ch=12/15) A,B,C,D (FX4) Push 112,113,114,115 (Ch=12/15) A,B,C,D (FX5) Push 116,117,118,119 (Ch=12/15) Page 19 micromodul LV2 User manual... - Page 21 Channel = 12(setup 1) / 15(setup 2) Channel = 12(setup 1) / 15(setup 2) 7 (blue) 1/7 (blue) 2/8 (blue) 8 (blue) 9 (green) 3/9 (green) 4/10 (green) 46 10 (green) 11 (red) 5/11 (red) 12 (red) 6/12 (red) Page 20 micromodul LV2 User manual...
- Page 22 Track 1-12: Channel = 10(setup 1) / 13(setup 2) Mastertrack: Channel = 12(setup 1) / 15(setup 2) sel. Track 12 Master 1/7 (Launch) 2/8 (Stop) 3/9 (Mute) 2 10 4/10 (Solo) 3 11 5/11 (Mon) 4 12 6/12 (Rec) 5 13 Page 21 micromodul LV2 User manual...
- Page 23 Track 1-12, key 9-12: Channel = 12(setup 1) / 15(setup 2) Mastertrack: Channel = 12(setup 1) / 15(setup 2) sel. Track 12 Master 7 (blue) 8 (blue) 9 (green) 10 (green) 96 100 11 (red) 97 101 12 (red) 98 102 Page 22 micromodul LV2 User manual...
- Page 24 Such mididata should not be used with midi-in, since this could cause problems (spontaneous switching of track and key mode) with the micromodul system. These ‘events’ are only used by a few very expensive keyboards. Page 23 micromodul LV2 User manual...
-
Page 25: Troubleshooting
Live as relative data. So be aware that the lower window border has to show ‘Relative (2’s Comp.)’ when assigning the encoder. This happens by moving the encoder at least 2 steps to the left (against clockwise direction). Page 24 micromodul LV2 User manual... - Page 26 Page 25 micromodul LV2 User manual...
- Page 27 Page 26 micromodul LV2 User manual...
- Page 28 Version 02 Mathias Fuchß Software-Entwicklung Op’n Idenkamp 13a 22397 Hamburg Germany info@faderfox.de www.faderfox.de Page 27 micromodul LV2 User manual...
