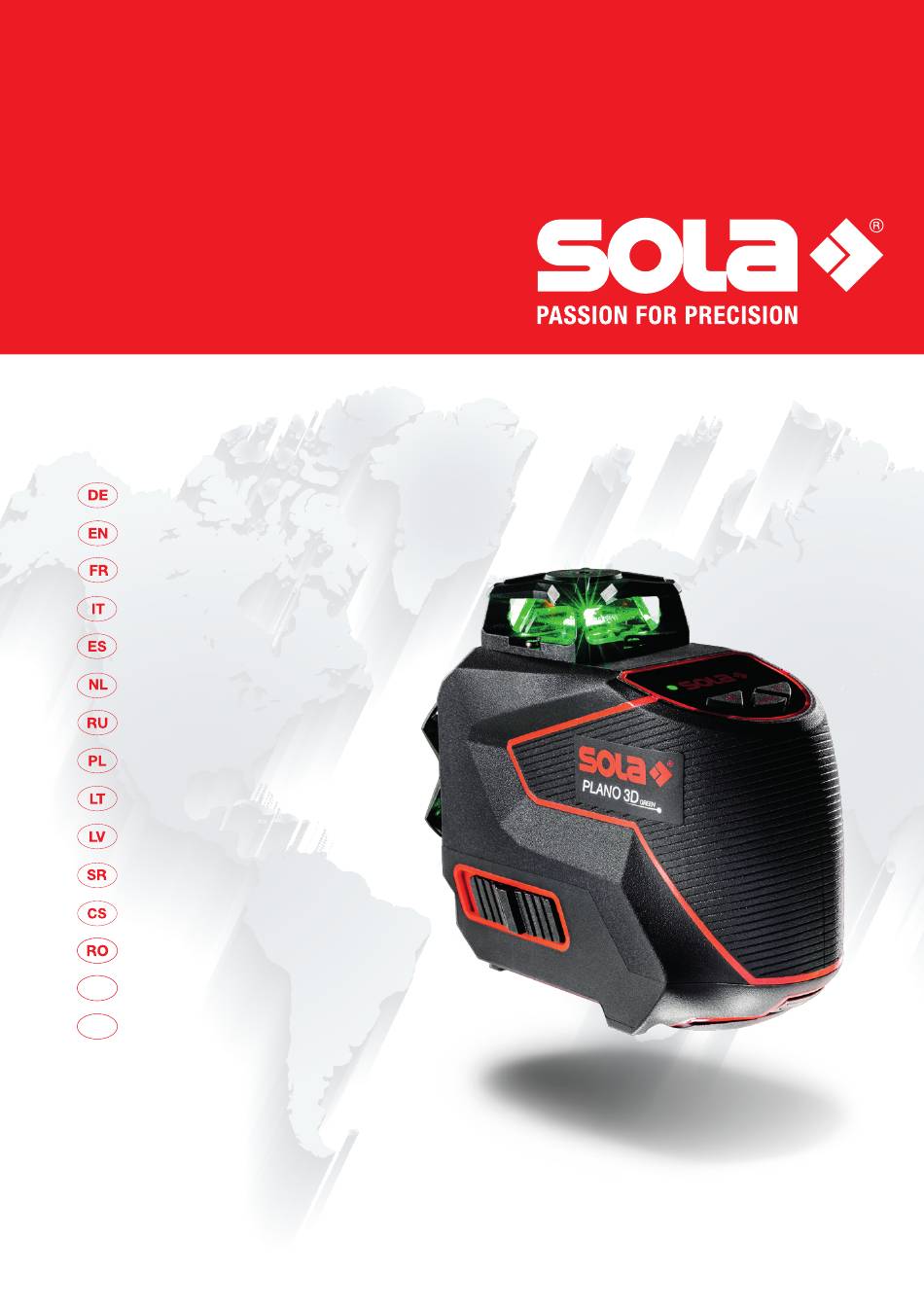

  • Page 1 PLANO 3D GREEN Gebrauchsanweisung Operating Instructions Manuel d’instructions Instruzioni d‘uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató...
  • Page 2 PLANO 3D GREEN Delivery Contents 1. PLANO 3D GREEN line laser 2. 3.6 V Li-ion battery (3450 mAh) 3. Quick Starter 4. Case 5. Power plug 6. Charger...
  • Page 3 PLANO 3D GREEN PROFESSIONAL Delivery Contents 1. PLANO 3D GREEN line laser 2. LB green laser goggles 3. 3.6 V Li-ion battery (3450 mAh) 4. Quick Starter 5. Case 6. Power plug 7. Charger 8. WH 5/8"...
  • Page 4 2.1 Device Components, Display and Operating Elements 1. Laser beam output aperture 2. On/off switch, transport lock 3. Tripod screw connection 1/4" & 5/8" 4. Battery compartment cover...

  • Page 5: Table Of Contents

    (Original Version) About this Manual Congratulations on the purchase of your new PLANO 3D GREEN! You have acquired a SOLA measure- ment instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions: •...

  • Page 6: General Information

    1. General Information 1.1 Signal Words and their Meaning 1.2.2 Symbols DANGER Read the operating For an imminent danger that could lead to serious manual before use injury or death. WARNING Batteries and devices may not be For a possibly dangerous situation that could lead disposed of with household waste to serious injury or death.

  • Page 7: Description

    4. Battery compartment cover 2.2 Intended Use The PLANO 3D GREEN is a line laser that enables a single person to level and align items horizontally and vertically. The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors.

  • Page 8: Technical Data

    3. Technical Data 3.1 PLANO 3D GREEN Line Laser Working range laser lines r = 30 m* recipient r = 80 m* Max. measurement tolerance laser lines ± 0.3 mm / m Protection class IP 54 Leveling range (typical) ± 3° Leveling time (typical) ≤...

  • Page 9: Safety Instructions

    Deliberate blinding of third parties. Inadequate safeguarding at the installation site. 4.3 Utilization Limitations The PLANO 3D GREEN is suitable for continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments.
  • Page 10 There is a risk of mortal danger from electric shock. Never open the SOLA Li-ion battery charger or charging station. Only use the SOLA Li-ion battery charger and charging station in dry places and do not bring them into contact with liquids.
  • Page 11 Batteries and rechargeable batteries must not be opened or exposed to mechanical loads. Damaged batteries, chargers and charging stations may not be used. Repairs must only be performed by SOLA. WARNING High ambient temperatures and immersion into liquids can cause batteries to leak, explode or catch fire or trigger the release of toxic substances.
  • Page 12 4.5.1 Interference with Other Devices by PLANO 3D GREEN Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

  • Page 13: Laser Safety / Classification

    5. Laser Safety / Classification The PLANO 3D GREEN emits one 360° horizontal line and two 360° vertical lines. The product corresponds to laser class 2 according to DIN EN 60825-1:2014. Laser Class 2: When using Class 2 laser devices, the eye is protected by the blink reflex or aversion reaction in the case of random and short-term exposure.

  • Page 14: Getting Started

    6. Getting Started 1. Open the battery compartment cover. 2. Insert batteries in the adapter with the correct polarity. 3. Close the battery compartment cover (audible click of the cover). Only use type 18650 3.6 V Li-ion batteries (3450 mAh). Remove the batteries if the instrument is not used for an extended period. NOTE The intensity of the laser lines can vary depending on the battery quality.

  • Page 15: Operation

    The REC LGD0 receiver can be used to detect the laser lines at even greater distances or in unfavorable environmental conditions. Pulse mode is active on the PLANO 3D GREEN when the MODE button is pressed. The laser lines flash three times to indicate the change.
  • Page 16 7.1.3 Creating Inclinations Beyond the Range of Automatic Leveling Turn the on/off switch, transport lock to the left (OFF position). Hold down the MODE button for at least 5 seconds. To indicate that the self-leveling is switched off, the lines will blink every 4 seconds. Off: Hold down the MODE button for at least 5 seconds.
  • Page 17 7.2 Applications 7.2.1 Horizontal Leveling 360° 7.2.2 Vertical Leveling 7.2.3 90° Angle...
  • Page 18 7.2.4 Inclination 7.2.5 Working at Distances...

  • Page 19: Checking The Accuracy

    1. Select two horizontal, level walls (A & B), which are approxi mately 10 m apart. 180° Mount the PLANO 3D GREEN on a tripod adapter and position it 20 cm at a distance of approx. 20 cm from wall A. Mark the intersecting point of the vertical ca.
  • Page 20 Mark center point of If reference points are on different sides of the center point must be subtracted from If the reference points are on the same side of the center point, must be added to Divide the result by twice the value of the room length. If the result is greater than 4 mm, the device must be readjusted.

  • Page 21: Maintenance, Storage And Transportation

    9. Maintenance, Storage and Transportation 9.1 Cleaning Wipe off the dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch the glass with your fingers. Do not use aggressive cleaning agents or solvents. Do not immerse the device in water! Clean and dry wet equipment, accessories and transport containers prior to packaging them.

  • Page 22: Delivery Contents And Accessories

    Clamp tripod KLST Flexi-gage FL Measuring rod ML 5 Flexible wall bracket FWH Inclination wedge NK1 Thread adapter set GA-SET LB GREEN laser visibility glasses, green Magnetic target plate ZS GREEN Further information on accessories can be found at www.sola.at...

  • Page 23: Troubleshooting

    11. Troubleshooting Error Possible Cause Remedy Laser lines blink in one second Battery flat Replace battery intervals Battery empty Charge battery Rechargeable battery exhausted Device outside of Align device horizontally self-leveling range Laser lines are flashing every Device is in Turn the on/off switch, 4 seconds manual inclination mode...

  • Page 24: Disposal

    Dispose of the device and the accessories properly. Only dispose of batteries when discharged. Observe the country-specific disposal requirements. Your SOLA dealership will accept returned batteries as well as old equipment, and will ensure proper disposal. Only for EU Countries...

  • Page 25: Manufacturer's Guarantee

    13. Manufacturer’s Guarantee “The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from de- fects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and/or replacements at the manufacturer’s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical flaws that do not affect the usability of the equipment, are not covered by this guarantee.

  • Page 26: Ec Declaration Of Conformity

    Konformitätserklärung Declaration of Conformity Déclaration de conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) PLANO 3D GREEN auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.
