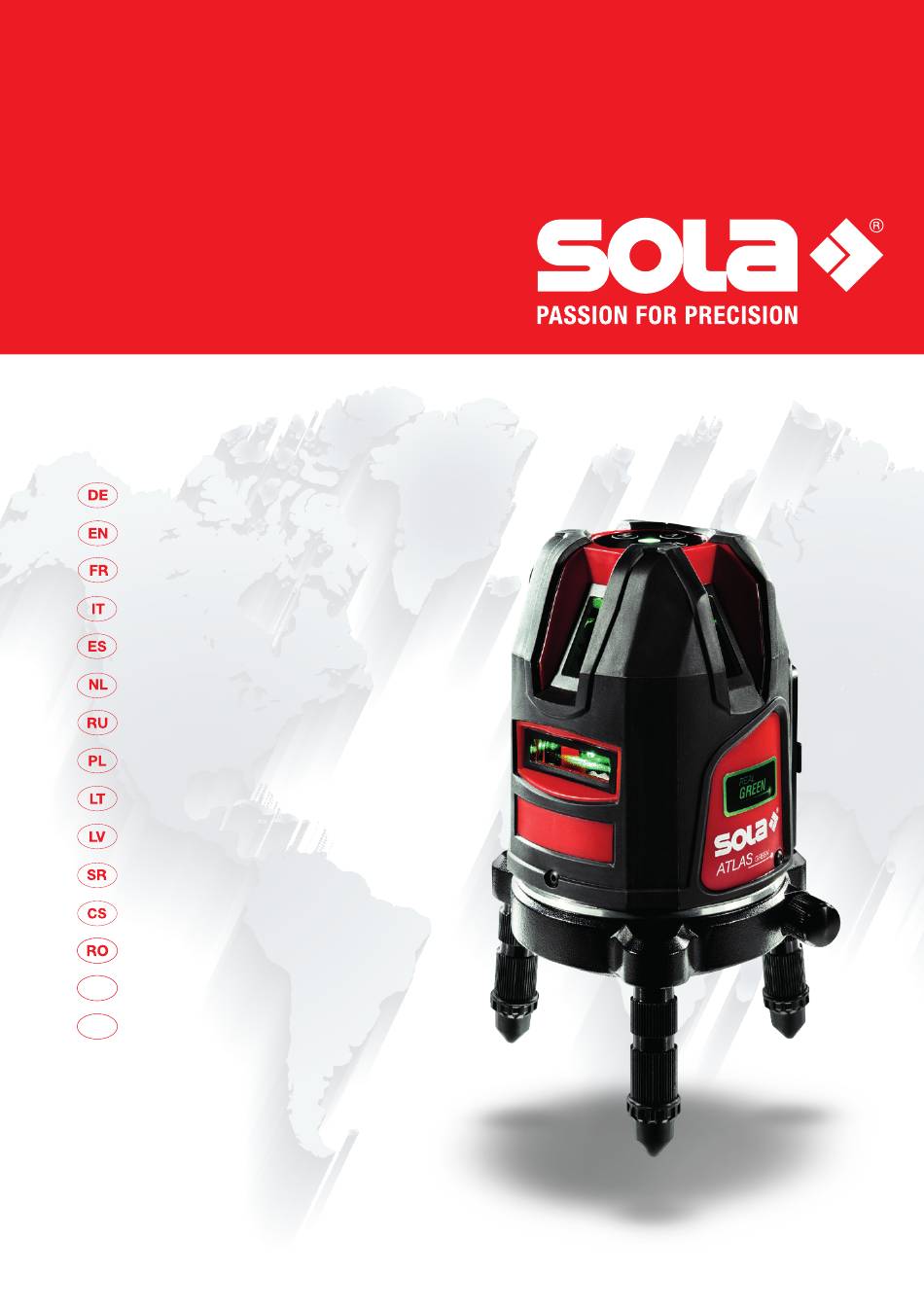

- Page 1 ATLAS GREEN Gebrauchsanweisung Operating instructions Manuel d’instructions Instruzioni d‘uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató...
- Page 2 Scope of delivery for ATLAS 1. ATLAS line laser 2. LB GREEN laser goggles 3. AA batteries 4. Quick Starter 5. Case 6. Stand adapter 1/4" 7. Stand adapter 5/8"...
- Page 3 2.1 Device components, display and operating elements 1. Laser beam output opening 2. On/off switch, transport lock 3. Tripod adapter 5/8" 4. Battery compartment cover 5. Fine adjustment 6. Keypad...
-
Page 4: Table Of Contents
About this manual Congratulations on the purchase of your new ATLAS GREEN! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functiona- lity range of this measurement instrument, and to ensure a safe operation, please observe the following instructions: •... -
Page 5: General Information
1. General information 1.1 Signal words and their meaning 1.2.2 Symbole DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING For a possibly dangerous situation that could lead Batteries and devices must not be to serious injury or death. -
Page 6: Description
6. Keypad 2.2 Intended use The ATLAS GREEN is a line laser that enables a single person to level and align plumb points as well as 90 degree angles horizontally and vertically. The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors. -
Page 7: Technical Data
3. Technical data 3.1 ATLAS GREEN line laser Working range - Laser lines r = 25 m* - receiver r = 80 m* Max. measurement tolerance - Laser lines ± 0.2 mm / m Protection class IP 54 Levelling range (typical) ±... -
Page 8: Safety Instructions
Inadequate safeguarding at the installation site. 4.3 Utilization limitations The ATLAS GREEN is suitable for a continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments,... - Page 9 A fall, longer storage, transportation or other mechanical effects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment. Repairs have to be exclusively performed by SOLA Before use, check the accuracy of the device (see Chapter 8 / Checking the accuracy) 4.4.2 batteries / rechargeable batteries...
- Page 10 Protect batteries and rechargeable batteries from mechanical damage during transport. Never store the Li-Ion battery in the sun, on radiators or behind glass windows. Do not overheat batteries and rechargeable batteries or expose them to fire. Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries.
- Page 11 4.5.1 Interference of other devices by ATLAS GREEN Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).
-
Page 12: Laser Safety/Classification
5. LASER SAFETY/CLASSIFICATION The ATLAS GREEN emits one 120° horizontal line as well as three 120° vertical lines. The product corresponds to Laser class 2 according to DIN EN 60825-1:2014. Laser class 2: With class 2 laser devices, eyes are protected by the the blink reflex and/or the aversion responses in the event that a person accidentally looks at the laser for a short time. -
Page 13: Startup
6. Start-up 6.1 Operation with batteries 1. Open the battery compartment cover. 2. Insert batteries with the correct polarity into the ATLAS GREEN. 3. Close the battery compartment cover (audible click of the cover). Use only 1.5v AA size (Mignon) batteries. -
Page 14: Operation
7. Operation 7.1 ATLAS GREEN Switching the laser on / off Turn the on/off switch, transport lock to the right (ON position) and the pendulum unit will be released. The device transmits the horizontal 360° line from the output aperture. To turn off the vertical 360° line, press V on the keypad. - Page 15 7.1.3 Creating inclinations beyond the range of automatic levelling Turn the on/off switch, transport lock to the left (OFF position). Press and hold the tilt key for 5 seconds to start the tilt function. Press the V key to switch on the vertical lines. Press the H key to switch off the horizontal lines.
- Page 16 7.2 Applications 7.2.1 Horizontal levelling 360° 7.2.2 Vertical levelling 360° 7.2.3 90° angle...
- Page 17 7.3.4 Horizontales und vertikales Nivellieren (mit Stativ -> optionales Zubehör) 7.3.5 Gestaltung im 90°-Winkel 7.2.4 Layout with a 90° angle 7.3.5 Gestaltung im 90°-Winkel 7.2.5 Inclination 7.2.6 Working at distances...
-
Page 18: Checking The Accuracy
Attach a plumb line as close as possible possible to a (at least) 3 m high wall. Mount the ATLAS GREEN onto a tripod at a height of approx. 1.2 m. Position the device approx. 3 m in front of the plumb line. - Page 19 Mark the center point of If the reference points are on different sides of the center point, must be subtracted from If the reference points are on the same side of the center point, must be added to Divide the results with twice the value of the room length. If the result is greater than 4 mm, the device must be readjusted.
-
Page 20: Maintenance, Storage And Transportation
9. Maintenance, storage and transportation 9.1 Cleaning Wipe off any dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch the glass with your fingers. Do not use aggressive cleaning agents or solvents. Do not immerse the device into water! Clean and dry wet equipment, accessories and transport containers prior to packaging them. -
Page 21: Scope Of Delivery And Accessories
Construction tripod BST Clamp tripod KLST Flexi-gauge FL Measuring rod ML 5 Flexible wall bracket FWH Inclination wedge NK1 Thread adapter set GA-SET Laser goggles red LB RED Magnetic target ZS RED Further information regarding the accessories can be found at www.sola.at... -
Page 22: Troubleshooting
11. Troubleshooting Error Possible cause Troubleshooting Laser lines blink in one second Device is beyond the Align the device horizontally intervals self-leveling range Device turns off again Battery exhausted Replace the battery immediately after startup. Rechargeable battery Recharge or replace battery exhausted Laser lines blink every Device is in the manual... -
Page 23: Disposal
Only dispose of batteries in a discharged state. Observe the country-specific disposal requirements. Your SOLA dealership will take back batteries as well as old equipment, and will ensure proper disposal. Only for EU countries Electric tools must not be disposed of with household waste! - Page 24 13. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.
- Page 25 Konformitätserklärung Declaration of Conformity Déclaration de Conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) ATLAS GREEN auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.
