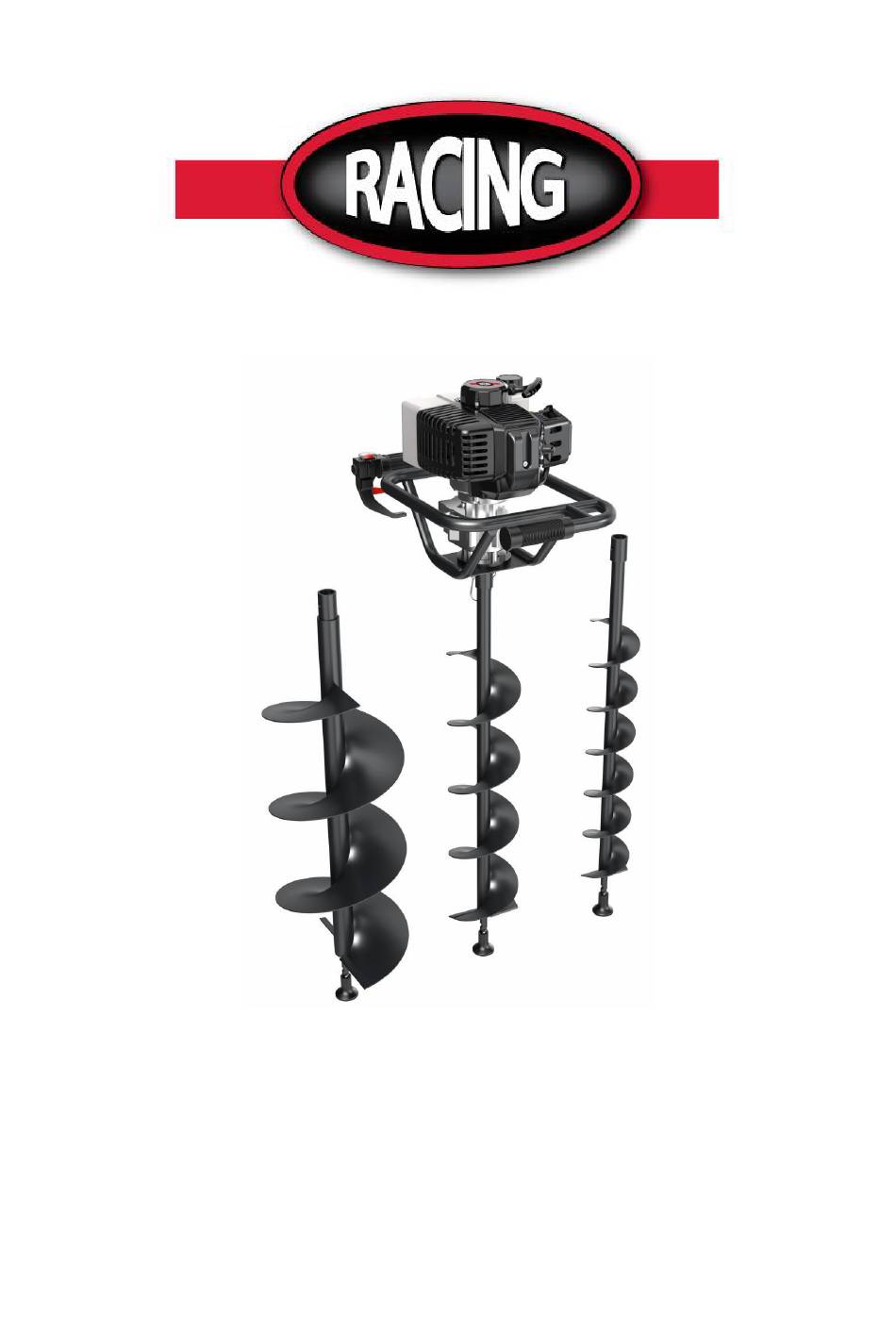

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL EARTH AUGER RACTT50-4A USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 7 4. FILLING THE FUEL TANK........................9 5. ASSEMBLY AND OPERATION......................9 6. MAINTENANCE AND STORAGE..................... 14 7. TOUBLESHOOTING........................... 16 8. STORAGE AND TRANSPORTATION..................... 17 9. DECLARATION OF CONFORMITY....................18 10. WARRANTY............................19 11. -
Page 3: Intended Use
1. INTENDED USE This petrol auger is designed to work for the ground (drilling holes for planting small trees, fence posts and similar objects). It is designed to be used with both hands. This machine is not designed to operate on frozen soil, on very rocky and particularly hard soil, in areas with underground electrical, gas or telephone lines. - Page 4 Always make sure that all handles and guards are installed when operating the machine. Never attempt to use an incomplete machine or a machine equipped with an unauthorized modification. When transporting or storing the machine, always install the cutting device protection if provided;...
- Page 5 Before checking, cleaning or working on the product; After hitting a foreign object; Every time the product starts to vibrate abnormally. Pay attention to foot and cutting injuries. Inspect and regularly service the product. Repairs should be carried out only by an authorized service center or a similar qualified specialist.
- Page 6 Fuel Handling Be very careful when handling fuels. They are flammable and the vapors are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool before refueling.
-
Page 7: Your Product
Wear protective gloves. Wear protective foot wear. CAUTION: Hot surface. Don't smoke. Guarantee sound power level. Wear a mask of protection. Beware of thrown objects. 3. YOUR PRODUCT 3.1 DESCRIPTION... - Page 8 1. Fuel cap/tank 6. Auger/Drill 2. ON/OFF Switch 7. Spark plug 3. Throttle 8. Air filter/Carburetor 4. Handle 9. Choke lever 5. Gear box 10. Recoil starter handle 2.2 TECHNICAL DATA Engine displacement 52cm³ Rated engine power 1.4kW Rated engine power speed 7500/min Maximum engine speed 9600/min...
-
Page 9: Filling The Fuel Tank
4. FILLING THE FUEL TANK WARNING: When filling the tank: The drill should always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Do not attempt to refuel when the engine is hot. ... - Page 10 Fig. 1 5.2 Starting the engine. ( Fig.2-3-4) Fill with fuel as described in section 4. Put the START/STOP switch to the START position. Push the choke lever to the close position Push the primer bulb until fuel flows into the clear tube. Fig.
- Page 11 - The primer pump operation is not necessary when restarting the engine immediately after stopping. Whilst supporting the auger with your left waist and left hand as shown, pull the starter recoil handle gently until compression is felt then firmly. ( Fig.4) Fig.
- Page 12 5.5 Drilling. (Fig.6) Keep a firm grip of the auger at all times, keeping wide stance and by holding the handle with both hands. A reacting motion may occur on the auger when spinning drill has hit on stones or tree roots under the ground.
-
Page 13: Maintenance And Storage
1 – Idle adjusting screw 2 – RPM up 3 – RPM down 4 – H-Needle 5 – Fuel decrease 6 – Fuel increase 7 - L-Needle 8 – Fuel decrease 9 – Fuel increase 6. MAINTENANCE AND STORAGE Warning: Before cleaning, inspecting or repairing the auger, make sure that the engine has stopped and cooled down. - Page 14 Fig.7 Fig.8 Warning: The spark plug MUST be fully tightened otherwise the engine will overheat causing damage. Always complete the following steps with the engine off and cooled. 6.3.3. Undo retaining screw (1) and lift spark plug cover (2) clear. 6.3.4.
-
Page 15: Troubleshooting
6.4.3 Disconnect the filter assembly. 6.4.4. If necessary, replace with new filter or clean by blowing air inside out after spraying a carburetor cleaning solvent. Fig.10 6.5. Gear box. (Fig. 6.5.1. Check oil level of the gear box every 50 hours of use and change with new oil as necessary (SAE 80-90). -
Page 16: Storage And Transportation
Normal fuel supply but weak Worn piston rings, spark plugnot Replace or adjust compression tightened, the cylinder head is not tightly wrong valve clearance or ignition Problem with fuel supply Poor contact between spark plug Check or exchange and spark cap and spark plug 7.2 Difficulties during operation. -
Page 17: Declaration Of Conformity
SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Declares that the machinery designated below: PETROL EARTH AUGER RACTT50-4A Serial number: 20250600169-20250602168 Complies with the provisions of the Directive “machinery” 2006/42/EC and national laws transposing it: Also complies with the provisions of the following European... -
Page 18: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 19: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 21 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Made in PRC...
