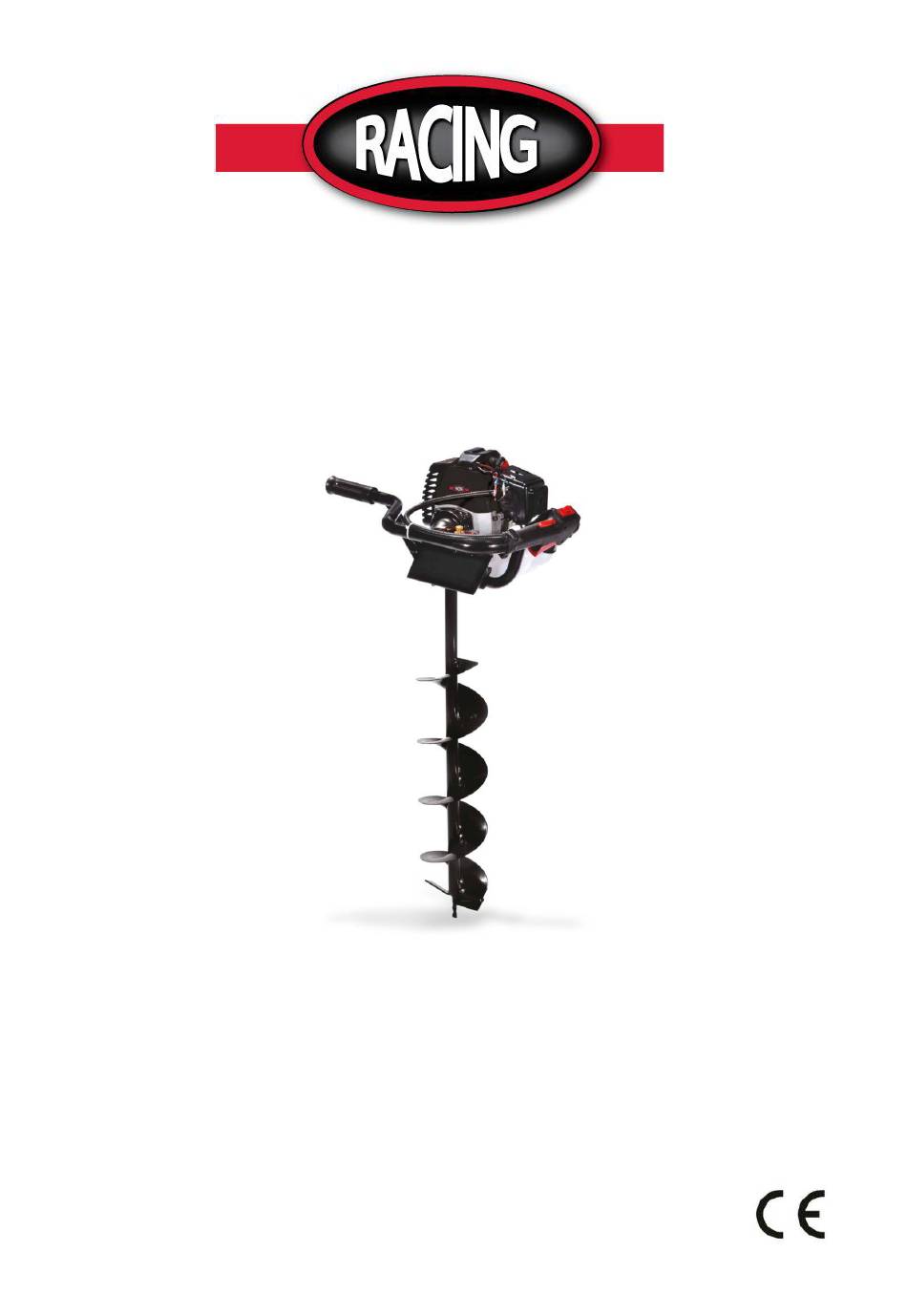

- Page 1 ORIGINAL INSTRUCTIONS PETROL EARTH AUGER Model: RACTT50-2 Instruction manual WARNING: Read the instruction manual thoroughly before use BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France MADE IN PRC...
-
Page 2: Table Of Contents
CONTENTS 1. SECURITY INSTRUCTIONS 2. YOUR PRODUCT 3. FILLING THE FUEL TANK 4. USE 5. MAINTENANCE AND STORAGE 6. DECLARATION OF CONFORMITY 7. WARRANTY 8. PRODUCT FAILURE 9. WARRANTY EXCLUSIONS... -
Page 3: Security Instructions
1. SAFETY INSTRUCTIONS THIS MACHINE MAY CAUSE SERIOUS INJURIES. Read the instructions carefully for handling, preparing, maintaining, starting and stopping the machine. Learn more about all the controls and proper use of the machine. WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. - Page 4 Keep hands and feet away from the unit at all times, especially when turning the tool off and on. Do not use the tool in an area where ventilation is poor. Gas emissions can cause injury. Do not work when it rains and in bad weather. Do not use the tool in damp locations. Do not use the tool in the presence of flammable liquids or gases.
- Page 5 Fuel Handling Be very careful when handling fuels. They are flammable and the vapours are explosive. • • Use only an approved container. • Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool before refuelling.
-
Page 6: Your Product
Wear protective gloves Wear protective foot wear. CAUTION : Hot surface Don't smoke 2. YOUR PRODUCT a. Description 1. Drill rod 2. Drill rod 3. Drill rod 4. Trigger 5. Safety button 6. Grab handle 7. ON/OFF switch 8. Handle 9. - Page 7 Technical data Model RACTT50-2 Engine capacity 52cm³ Maximum engine power: 1.45kW 7500/min Maximum speed of the motor 8500/min 3800/min Engaging speed Idle speed: 3000/min Fuel tank volume 1.2l Drilling specific diameter 100mm/150mm/200mm Drilling speed at the maximum speed of...
-
Page 8: Filling The Fuel Tank
3. FILLING THE FUEL TANK WARNING: When filling the tank: The drill should always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Do not attempt to refuel when the engine is hot. If fuel has been spilled, immediately stop refueling and do not start the engine. -
Page 9: Use
4. USE a. Drill rod assembly Place the machine body on a flat and stable location Remove the clip and pin on the drill rod Install the rod and align the holes to be able to connect the two sets Put the pin back in place by clipping Release the clipping and remove the pin a. - Page 10 Pull the launcher cable several times Move the choke lever to ON position, pull the launcher cable unit the engine start. Hold the drill by grasping the holding handle and main handle Gradually increase the speed by pressing and holding the safety switch and then pulling the acceleration trigger.
-
Page 11: Maintenance And Storage
c. Precautions during the operation Spectators (especially children and animals) should remain at least 5 metres away from the workspace. Stop anyone from entering the workspace during the operation. When a person comes close, stop the machine to avoid possible injury. Pay attention to your work and the environment where you work. -
Page 12: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL EARTH AUGER Ref：RACTT50-2 Serial number: 20211020359-20211021334 Complies with the provisions of the Directive “ machinery ” 2006/42/EC and national laws transposing it:... -
Page 13: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
