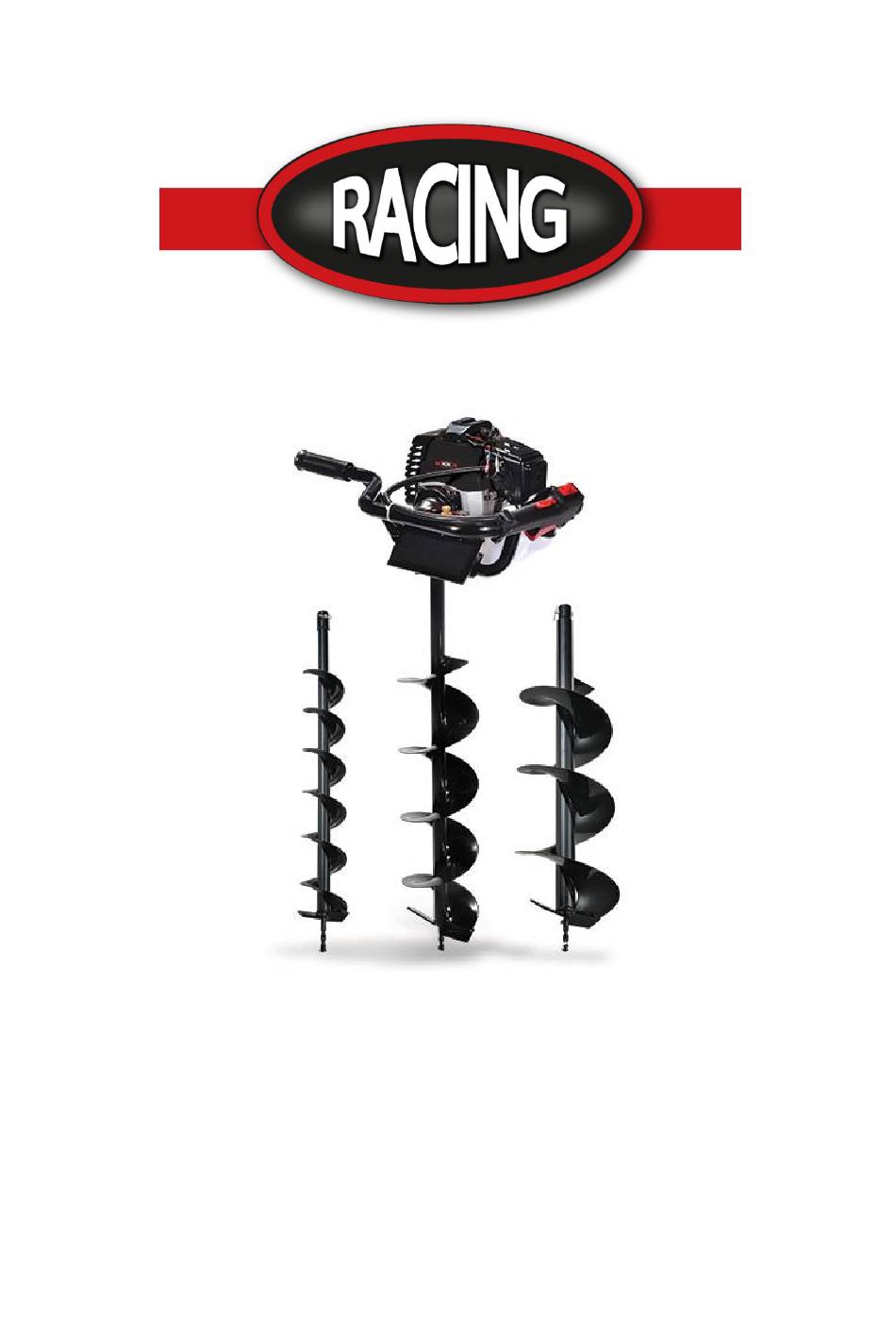

- Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL EARTH AUGER RACTT50-3M USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS............................ 3 2. YOUR PRODUCT..............................6 3. FILLING THE FUEL TANK...........................7 4. USE...................................8 5. MAINTENANCE AND STORAGE........................11 6. DECLARATION OF CONFORMITY......................... 12 7. WARRANTY................................. 13 8. PRODUCT FAILURE............................14 9. WARRANTY EXCLUSIONS..........................15... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS THIS MACHINE MAY CAUSE SERIOUS INJURIES. Read the instructions carefully for handling, preparing, maintaining, starting and stopping the machine. Learn more about all the controls and proper use of the machine. WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. - Page 4 Wear appropriate clothing. Do not wear loose or unbuttoned shirts. Do not wear jewellery that may come in contact with moving parts. If you have long hair, tie them down and wear an appropriate safety helmet. Do not operate the product with damaged guards or shields not in place. ...
- Page 5 Fuel Handling Be very careful when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool before refuelling.
-
Page 6: Your Product
Wear protective gloves. Wear protective foot wear. CAUTION : Hot surface! Don't smoke. Guarantee sound power level. 2. YOUR PRODUCT a. Description 1. Drill rod 7. ON/OFF switch 2. Drill rod 8. Handle 3. Drill rod 9. Motor 4. Trigger 10. -
Page 7: Filling The Fuel Tank
Technical data Model RACTT50-3M Engine capacity 52cm³ Maximum engine power 1.45kW 7500/min Maximum speed of the motor 8500/min Engaging speed 3800/min Idle speed 3000/min Fuel tank volume 1.2l Drilling specific diameter 150mm/200mm/250mm 240/min Drilling speed at the maximum speed of the machine ≥700kg/h... -
Page 8: Use
The fuel used for this tool is a mixture of unleaded gasoline and registered engine lubricant. When mixing gasoline with oil, use only gasoline that does not contain ethanol or methanol. Unleaded gasoline is a quality gasoline type. This will help to avoid damaging the fuel lines of the engine and other engine parts. - Page 9 b. Before use Check the condition of the machine, that there is no damage or malfunction. In case of problems, do not use the machine and inspect it. Check that the drill rod is properly assembled. Check the fuel volume. Always refuel before operating the machine. Never use the machine with little or no fuel.
- Page 10 When the drill rod has penetrated 10 cm into the ground, grasp the frame strongly and increase the effort downwards. To drill a deep hole, lower the rod gradually. When you have dug the required size, decrease the drilling speed. ...
-
Page 11: Maintenance And Storage
5. MAINTENANCE AND STORAGE Maintenance Service your tool regularly. This shall keep your tool in good working condition and extend its service life. Do not use abrasive and corrosive agents to clean the tool. These types of products damage your tool. -
Page 12: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL EARTH AUGER Ref：RACTT50-3M Serial number: 20220524649-20220525110 Complies with the provisions of the Directive “ machinery ” 2006/42/EC and national laws transposing it:... -
Page 13: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 16 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
