RightAngle NewHeights Hover E Assembly Instructions Manual

Electric monitor lift through bolt mount

Advertisement

Quick Links

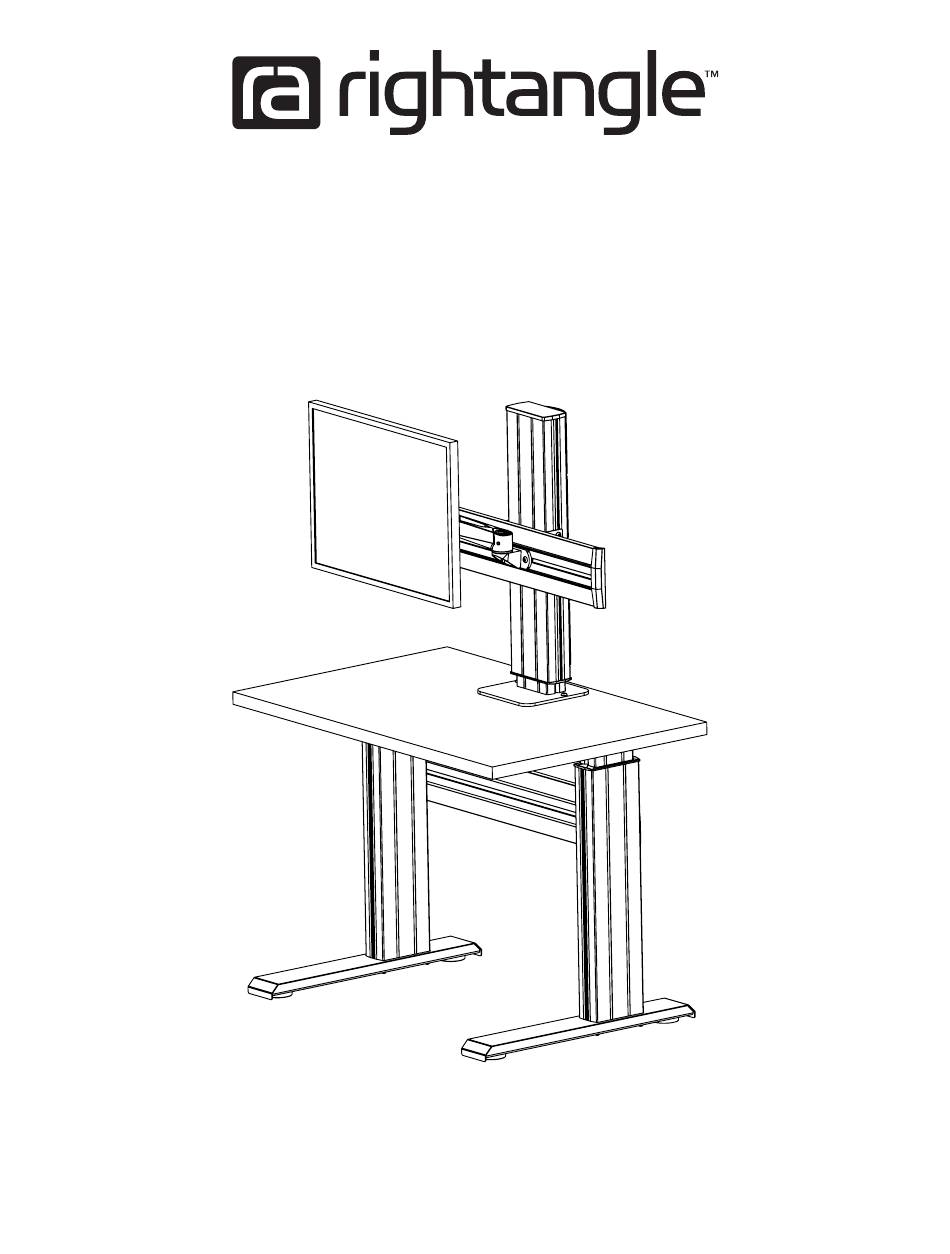

NewHeights™ Hover E Electric Monitor Lift
Through Bolt Mount
Assembly Instructions
Monitor rail assembly instructions begin on page 6
Warranty: raproducts.com/resources/warranty
Instruction #54858 • Dated: 03/14/2023
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the NewHeights Hover E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RightAngle NewHeights Hover E

  • Page 1 NewHeights™ Hover E Electric Monitor Lift Through Bolt Mount Assembly Instructions Monitor rail assembly instructions begin on page 6 Warranty: raproducts.com/resources/warranty Instruction #54858 • Dated: 03/14/2023 1 of 11...
  • Page 2: Tools Required For Assembly

    Tools Required for Assembly Tools Required for Assembly A. Power Driver with Adjustable Torque B. 7/16” Drill Bit C. 7/32” Allen Wrench D. #2 Phillips Head Drive Bit Hardware and Tools Included for Assembly (may have extra) E. 3/8”-16 Bolt x2 5/8”...
  • Page 3 • Your desk should be fully assembled and in the upright position. • If you purchased a RightAngle™ worksurface and it already has pre-drilled holes for the Hover E, skip this step and go to step 2. If you’re using your own worksurface or do not have pre-drilled holes, continue with this step.
  • Page 4 Step 3 • From the top of the worksurface, insert one bolt (E) through the Hover E column assembly, the worksurface, and into the screw plate (H). • Repeat with the second screw. • Then, fully tighten the bolts using the allen wrench (C). Step 4 •...
  • Page 5 Step 5 • From the underside of the worksuface, secure the control switch (J) to the worksurface using two 5/8” wood screws (F). This will be the same for a 2-button or a 4-button control switch. • Connect the control switch cable, motor cable (comes from the back side of the Hover E column assembly), and power cord (L) into the control box.
  • Page 6 Hover E Monitor Rail Assembly Instructions Hardware and Tools Included for Assembly (may have extra) A. 3/16” Allen Wrench x1 B. 3mm Allen Wrench x1 C. 5/16-18 x 3/8” Bolt x D. M4 x 12mm Bolt x4 per monitor E. Two Hole Weld Nut x2 Single Hole Weld Nut x2 Parts G.
  • Page 7 Step 1 • Attach two (2) two hole weld nuts (E) to the column mounting bracket (I) using four 5/16- 18 x 3/8” bolts (C). • Only turn the bolts a few times. The bolts should be a bit loose, but still hold the weld nut in place.
  • Page 8 Step 3 • Slide the bracket and rail assembly from step 2 onto the Hover E column. • OSelect the position of the bracket and rail assembly. Tighten the four bolds on the outside of the column mounting bracket (I) to secure to the Hover E column.
  • Page 9 Step 5 • Install the monitor arm(s) (L) onto the monitor rail bracket (J). You will hear a click when the arm is properly attached. • No more than two arms should be attached to a single monitor rail bracket. •...
  • Page 10 Step 7 • Slide the monitor with monitor bracket onto the monitor arm. • You will hear a click when the bracket is securly attached to the arm. Repeat these steps 4 through 7 to mount additional monitors. Step 8 •...
  • Page 11 Step 9 • Attach the column top cap (I) from the first instruction set for the Hover E electric monitor lift. • The underside of the top cap has double sided tape attached. Remove the backing from the double sided tape. •...
