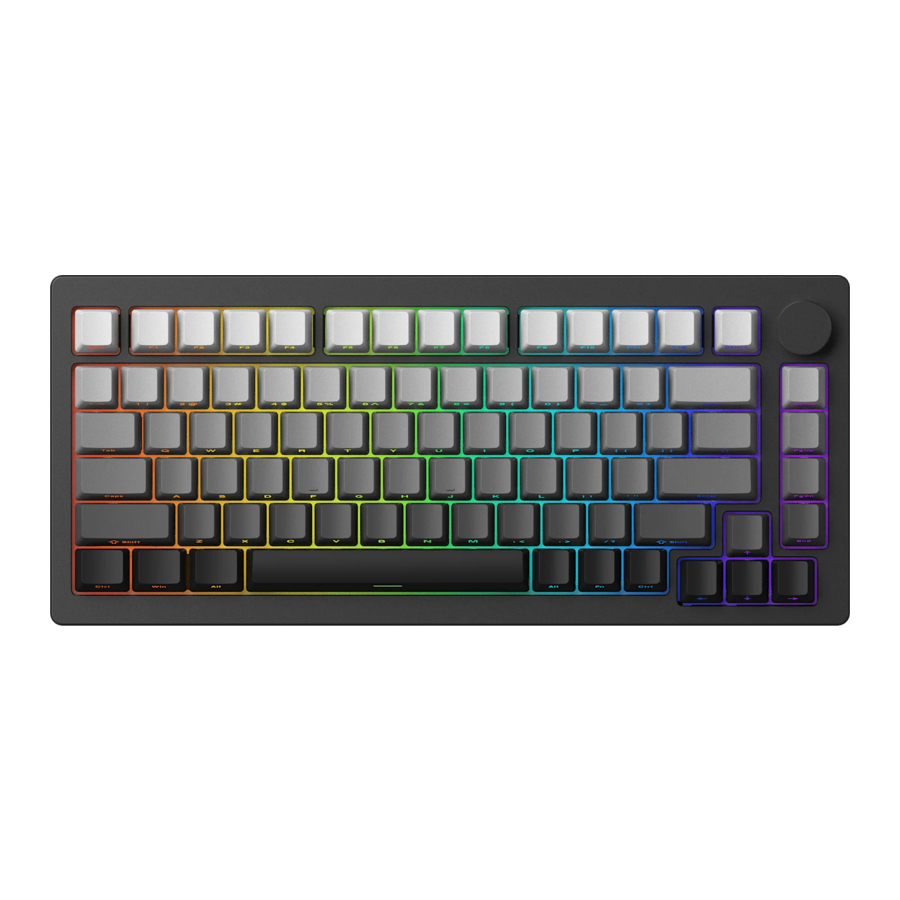

Akko MonsGeek Manual

Introduction

Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please visit our customer support page: www.alza.cz/EN/kontakt.
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Packing List

The package includes the following items:

• 1× Keyboard
• 1× USB-C Cable
• 1× Keycap Puller
• 1× Instruction Manual

Minimum System Requirements

This keyboard is compatible with:

• Operating Systems: Windows® XP / Vista / 7 / 8 / 10 or higher versions.

Connectivity Method

• To connect your keyboard, plug the USB cable into an available USB-A port on your device. This will activate wired mode, enabling seamless use while charging the keyboard.

LED Indicators

• The keyboard provides LED indicators to display the current connection status, battery level, and function toggles. The table below details the indicator behaviors for various connection modes and statuses.

Connection Status Indicators

Battery and Function Indicators

HotKeys

The keyboard offers a variety of hotkey combinations to streamline navigation, multimedia controls, and productivity tasks. Below is a detailed list of functions accessible with the Fn key.

General Shortcuts

Media Controls

Additional Tools

Audio and Volume Controls

Gaming Key Swap

Note: These hotkeys are designed for efficient multitasking and media control, making the M1 V5 keyboard ideal for both productivity and gaming. Use the intuitive Fn combinations to navigate quickly, adjust volume, switch tracks, or access essential applications without interrupting your workflow.

System Commands (Windows)

The keyboard features essential system commands designed for quick access to lock functions, resetting the keyboard, and reassigning key functionality. Below is an overview of the commands available in Windows mode.

System Commands

Detailed Instructions

• Lock Windows Key:
  • UseFn + Left Win Key to lock or unlock the Windows Key.
  • This feature is especially useful for gamers who want to avoid accidental interruptions during gameplay.
• Restore Factory Settings:
  • HoldFn + ~ for 5 seconds to reset the keyboard to its original factory configuration.
  • This command is helpful if you encounter issues with custom settings or want a clean slate for personalization.
• Revert Ctrl to Menu Key:
  • HoldFn + Right Ctrl for 3 seconds to reassign the Right Ctrl key as a Menu Key.
  • The Menu Key allows you to open context menus (similar to a right-click) quickly and easily.

System Commands (Mac)

The keyboard is optimized for macOS, providing system-level shortcuts for brightness, volume, media control, and app navigation. Below is a breakdown of the macOS-specific key functions.

Function Keys

Key Mapping for macOS

Key Functions

• Brightness Adjustment (F1/F2):
  • Adjust your Mac's display brightness using F1 to dim the screen and F2 to brighten it.
• Mission Control (F3):
  • Use F3 to launch Mission Control, which displays all open apps and desktops for easy navigation.
• Siri Activation (F4):
  • Press F4 to quickly access Siri for voice commands or system searches.
• Media Playback (F7–F9):
  • Control audio playback with F7 (Skip Back), F8 (Pause/Play), and F9 (Skip Forward).
• Volume Control (F10–F12):
  • Use F10 to mute audio, F11 to lower the volume, and F12 to increase it.

Backlight Settings

The keyboard offers customizable backlight settings, allowing users to adjust brightness, animation speed, and effects for a personalized lighting experience. Use the Fn key combinations listed below to control backlight functions.

Backlight Control Shortcuts

Wireless/Wired Connection Guide

The keyboard supports both wireless and wired connections, offering versatile options for connectivity. Use the Fn key combinations and the toggle switch under the CAPS key to switch between modes as described below.

Connection Modes

Toggle Switch Modes
The toggle switch, located beneath the Caps Lock key, lets you select between the following operating modes:

Bluetooth Pairing

To connect your keyboard via Bluetooth, follow these steps:

• Enter Bluetooth Mode:
  • Select a Bluetooth slot by pressing Fn + E/R/T, which corresponds to Bluetooth Device 1, 2, or 3.
• Enable Pairing Mode:
  • Hold Fn + E/R/T for 3 seconds. The blue indicator light will flash quickly, indicating the keyboard is ready for pairing.
• Establish the Connection:
  • Search for the keyboard on your device's Bluetooth menu and connect.
  • Once successfully paired, the indicator light will remain on for 2 seconds and then turn off.
  • If the connection is unsuccessful, the indicator light will turn off, and the keyboard will enter sleep mode.

2.4G Wireless Pairing

To pair the keyboard via 2.4G wireless mode:

• Enter 2.4G Mode:
  • Press Fn + Y to activate 2.4G wireless mode.
• Enable Pairing Mode:
  • Hold Fn + Y for 3 seconds. The green indicator light will flash quickly.
• Connect the Receiver:
  • Insert the 2.4G receiver into the device you wish to connect.
  • Once successfully paired, the indicator light will stay on for 2 seconds and then turn off.
  • If the pairing is unsuccessful within 30 seconds, the indicator will turn off, and the keyboard will enter sleep mode.

Battery Level Check

To check the battery status while in wireless mode:

• Press Fn + Spacebar.
  Battery levels are displayed via the LED on thenumber keys (1–0):
  • Keys 1-2 (Red): Battery level is below 30%.
  • Keys 1-9 (Green): Battery level is between 30% and 100%.
  • Key 0 (Green): Battery is fully charged.

Notes:

• Ensure the keyboard is inwireless mode to check the battery level.
• RGB mode must be turned on for accurate battery indicators.

Key/Lighting Effects Customization Instructions

You can use VIA software to fully customize your keyboard's key mappings and lighting effects. Here's how:

• Download VIA Software:
  • VIA offers an intuitive interface for remapping keys, creating macros, and personalizing lighting effects. oWeb Version: https://usevia.app/
  • App Download: https://github.com/the-via/releases/releases
• Load JSON Files for Your Keyboard Model:
  • Download the required V3 JSON file from the official Download Page:
• Source Code Access:
  • Access the keyboard's source code (GPL-compliant) for advanced customization: https://github.com/monsgeek.
    https://www.monsgeek.com/download.

Features of VIA:

• Key Remapping: Easily change the function of any key to suit your preferences.
• Lighting Effects: Adjust RGB effects and sync with your workflow or gaming setup.
• Macro Creation: Automate repetitive tasks with custom key sequences.

By using VIA, you can unlock the full potential of your keyboard, personalizing it to your specific needs and preferences.
