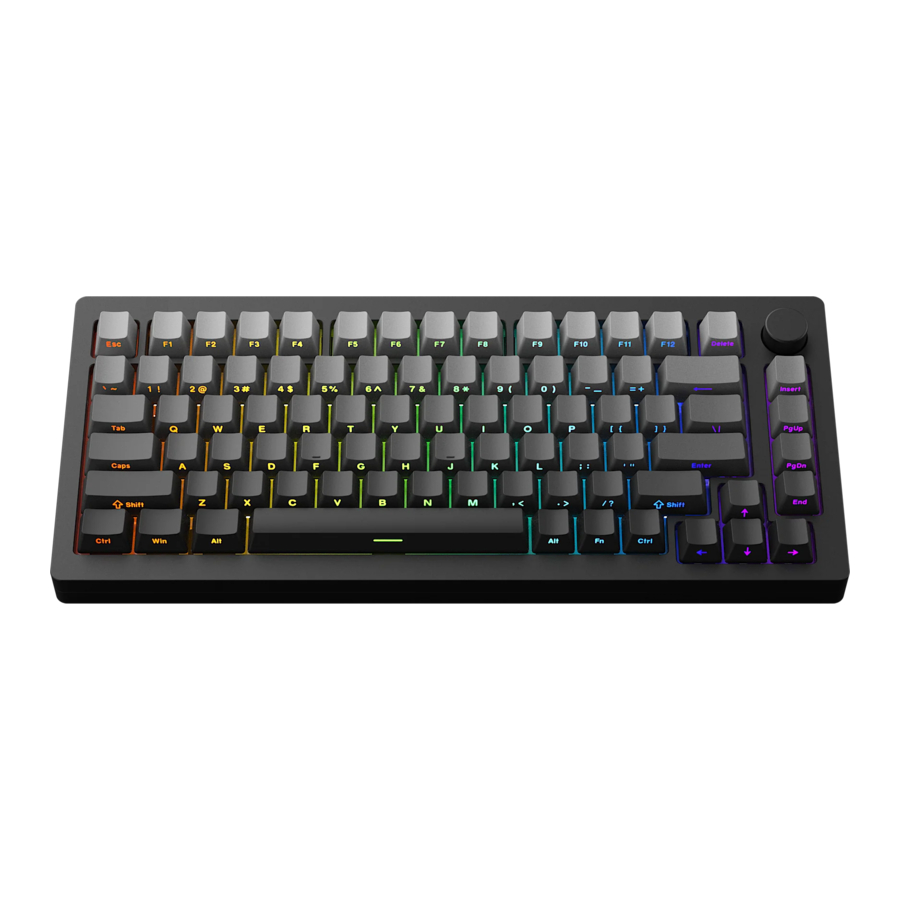

Akko MonsGeek M1W - Multi-modes RGB Keyboard Manual

Table of Contents

Contents

1 Packing List
2 System Requirement
3 Connectivity Method
4 M1W Multi-modes RGB User Manual
5 M1W RGB HotKeys
6 M1W RGB System Commands (Windows)
7 M1W RGB System Commands (Mac)
8 M1W RGB Backlight Settings
9 M1W Wireless/Wired Connection Guide
10 Bluetooth Pairing
11 2.4G Pairing
12 Battery Level Check
13 Key/Lighting Effects Customization Instruction
14 MONSGEEK Warranty and Service Statement
15 Documents / Resources
- 15.1 References
- 15.2 Download manual

Packing List

To provide you with a better user experience, please read this manual carefully before using the product.

System Requirement

Windows®XP / Vista / 7 / 8 / 10 or higher version

Connectivity Method

Connect the keyboard to your computer by plugging in the USB cable into an available USB port to start using it.

M1W Multi-modes RGB User Manual

Status	Indicator	Re-Connecting	Pairing	Connected
Bluetooth device 1	LED for Key E	Red light blinks slowly	Red light blinks fast	Red light stays on for 2 seconds and then turns off
Bluetooth device 2	LED for Key R	Blue light blinks slowly	Blue light blinks fast	Blue light stays on for 2 seconds and then turns off
Bluetooth device 3	LED for Key T	Yellow light blinks slowly	Yellow light blinks fast	Yellow light stays on for 2 seconds and then turns off
2.4G wireless device	LED for Key Y	Green light blinks slowly	Green light blinks fast	Green light stays on for 2 seconds and then turns off
Wired mode	LED for Key U	N/A	N/A	White light stays on for 2 seconds and then turns off
Status	Indicator	Indicating mode
Low Battery	Independent LED Indicator (near spacebar)	Red light blinks slowly
Charging		Steady red
Fully Charged		Steady green
Caps	LED for Caps Key	Steady white
Lock WIN	LED for left WIN Key	Steady white

M1W RGB HotKeys

Hot Keys

Fn+	F1	=	My Computer	Fn+	F6	=	Play/Pause	Fn+	I	=	Insert
	F2		E-mail		F7		Previous Song		M		Mute
	F3		Windows Search		F8		Next Song		<		Decrease Volume
	F4		Browser Homepage		P		Print SCR		>		Increase Volume
	F5		Multimedia Player		C		Calculator		w		Swap W A S D with ↑ ↓ ← →

M1W RGB System Commands (Windows)

System Commands (Windows)

Lock Windows Key	Restore Factory Settings	Revert Ctrl into Menu Key
Press Fn and Left Win Key	Hold down Fn and press ~ Key for 5S	Hold down Fn and press right Ctrl for 3S

M1W RGB System Commands (Mac)

System Commands (Mac)

F1	Decrease display brightness	F7	Skip back (Audio)	F11	Volume down
F2	Increase display brightness	F8	Pause/Play (Audio)	F12	Volume up
F3	Open mission control	F9	Skip forward (Audio)	Left Win	Option
F4	Activate Siri	F10	Mute	Left Alt	Command
Right Alt	Command

M1W RGB Backlight Settings

Backlight Settings

FN+-	Slower Animation	FN+Home	Effect1、Effect2、Effect3、Effect4、Effect5
FN+=	Faster Animation	FN+PgUP	Effect6、Effect7、Effect8、Effect9、Effect10
FN+↑	Bright	FN+End	Effect11、Effect12、Effect13、Effect14、Effect15
FN+↓	Dim	FN+PgDn	Effect16、Effect17、Effect18、Effect19、Effect20
FN+←	Set animation direction to left	FN+\	This shortcut allows you to set the backlight color to 7 single color with RGB loop effect
FN+→	Set animation direction to right	FN+L	Light Off/On

M1W Wireless/Wired Connection Guide

Wireless/Wired Connection Guide

Fn+	E	=	Bluetooth Device 1
	R		Bluetooth Device 2
	T		Bluetooth Device 3
	Y		2.4G Wireless Device
	U		Wired mode

The switch is located under the CAPS key	Top: Mac (built-in power supply on)
	Middle: Default Windows (built-in power supply off)
	Bottom: Windows (built-in power supply on)

Bluetooth Pairing

After turning on the keyboard, press FN+E/R/T to enter Bluetooth mode. Press and hold the FN+E/R/T combination key for 3 seconds to put the keyboard in pairing mode, with the blue indicator light flashing quickly. Once the connection is established, the indicator light will stay on for 2 seconds. If the device fails to connect, the indicator light will turn off and the keyboard will enter sleep mode.

2.4G Pairing

After turning on the keyboard, press FN+Y to enter 2.4G mode. Then press and hold the FN+Y combination key for 3 seconds to enter pairing mode. Then insert the receiver, and the indicator light will flash quickly. Once pairing is successful, the LED indicator will stay on for 2 seconds. If no available device is found within 30 seconds, the LED indiactor will turn off and the keyboard will enter sleep mode.

Battery Level Check

Press the Fn + Space combination keys to check the battery level. If the battery level is below 30%, the space key will show a red light. If it's between 30-50%, the space key will show an orange light. If it's between 50-70%, the space key will show a purple light. If it's between 70-90%, the space key will show a yellow light. If it's 90-100%, the space key will show a green light.

Key/Lighting Effects Customization Instruction

The driver can be connected and lighting and key can be customized under the three working modes of the keyboard
The three working modes of the keyboard can be matched to drive the music rhythm
Please download the MonsGeek_setup driver on our website
Users can download the driver via www.monsgeek.com

MONSGEEK Warranty and Service Statement

MONSGEEK provides One-Year warranty for customers in mainland China. For other regions, please contact your seller (MonsGeek distributor) for specific warranty policy.

If the warranty window expires, customers need to pay for repairs. MONSGEEK will also provide instructions if users prefer to repair the keyboard by themselves.
However, users shall take full responsibility for any loss happened during self-repair.
Dissembling the keyboard without manufacturer/seller's instruction will immediately void the warranty.
The return and warranty policy may vary in different platforms and are subject to the specific distributor at the time of purchase.

Company: Shenzhen Yinchen Technology Co., Ltd
Address: 33 Langbi Rd, Bitou Community 1st Industrial Zone, Bao'an District, Shenzhen, China
Tel: 0755-23216420
Website: www.monsgeek.com
Origin: Shenzhen, China
