Fiber Optic Wall Carpet
SP7171
Installation Instructions
30181
November 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpaceKraft SP7171 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fun & Function SpaceKraft SP7171

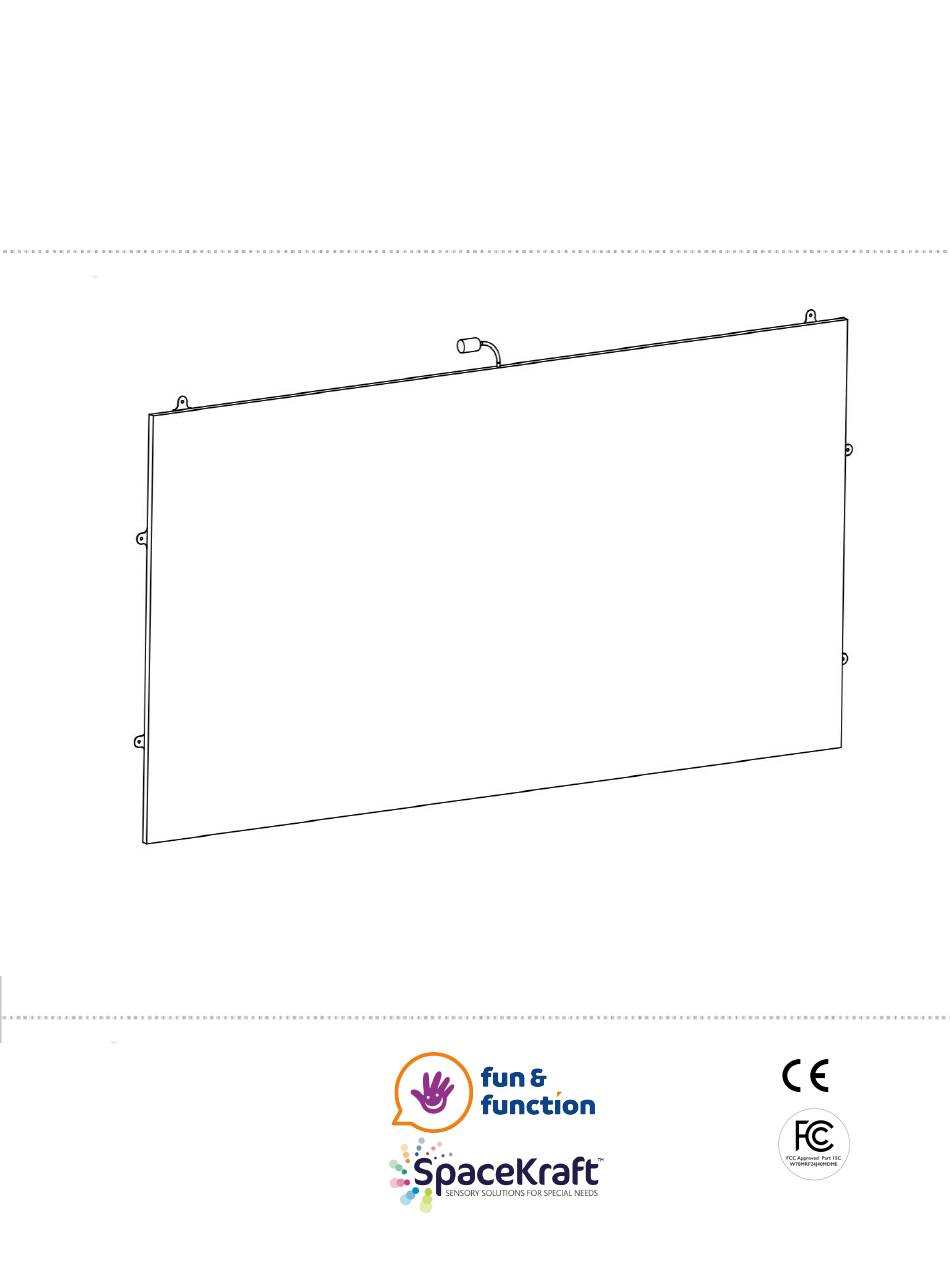

  • Page 1 Fiber Optic Wall Carpet SP7171 Installation Instructions 30181 November 2024...
  • Page 2: Table Of Contents

    Contents Warnings Description Includes Installation Template Cleaning and Maintenance Guarantee Technical Contact us...
  • Page 3: Warnings

    Warnings All our equipment is designed for users with special needs. We suggest supervision at all times when using this equipment. For indoor use only. Electric outlet is required. Do not use any other power cord other than the one supplied. Before plugging in the power cord, ensure it is the cord supplied with your product.
  • Page 4: Installation

    Installation 1 ) One person should hold the carpet to the wall. The other person should mark through the mirror plates using a pencil where the appropriate wall installation hardware will be placed (screws, anchors, etc.,). Make sure the fiber plug is at the top of the carpet and the carpet is facing away from the wall.
  • Page 5: Template

    Light Source Installation The Light source should be installed above the carpet so the fiber plug can be inserted into the light source. Light Source Fiber Plug The Light Source can be used without attaching to the wall. It can be placed in a convenient location.
  • Page 6 Step 1 Hold the template on the wall with the word face towards you. Use a pencil to mark through the 2 holes Step 2 Hole 1 Drill 2 holes on the pencil marks. Hole 2 Step 3 Use suitable wall screws and screw into wall. Leave the head of the screws protruding 10 mm or 0.4".
  • Page 8: Troubleshooting

    Troubleshooting Q: My Light Source will not light up. A: Make sure the power cord is plugged into an electrical outlet and the outlet is receiving power. I f this still does not work, check the fuse in the plug. Please make sure the light source has been unplugged from the outlet before checking the fuse.
  • Page 9: Fcc

    Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not not be co-located or operating in conjunction with any other antennas or transmitters. This device complies with Part 15 of the FCC rules.
  • Page 10: Guarantee

    Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers .If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired or at our discretion replaced free of charge.
  • Page 11: Technical

    Technical The Fiber Optic Wall Carpet is an optical effect that does not use electrical power. The Light Source uses LED lighting. The expected working life is 100,000 hours. When the lights no longer work, the lightsource will need to be replaced. Electrical information Table 1 Supply Voltage...
