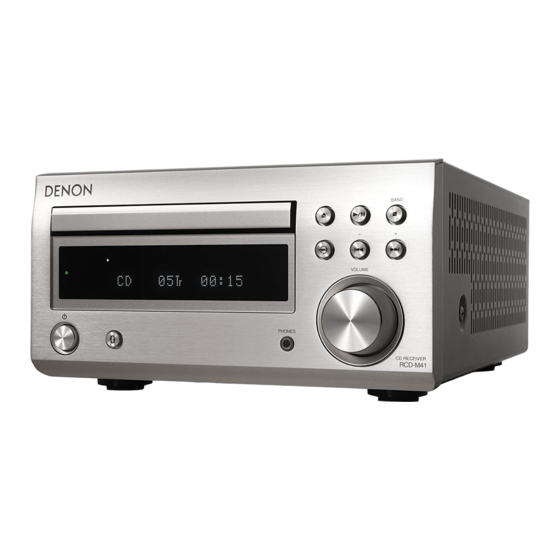

CD RECEIVER
RCD-M41
RCD-M41DAB
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
Service Manual
Click here!
Online service parts list
http://dmedia.dmglobal.com/Document/DocumentDetails/23162
Online Parts List
(P5 to P7)
WEB owner's manual
http://manuals.denon.com/RCDM41/NA/EN/index.php
http://manuals.denon.com/RCDM41/EU/EN/index.php
http://manuals.denon.com/RCDM41/AP/ZH/index.php )
CAUTION IN SERVICING
ELECTRICAL
MECHANICAL
REPAIR INFORMATION
UPDATING
Please refer to the MODIFICATION NOTICE.
Confidential
Ver. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCD-M41 and is the answer not in the manual?

Questions and answers

Summary of Contents for Denon RCD-M41

  • Page 1 Service Manual Ver. 2 CD RECEIVER Click here! RCD-M41 Online service parts list RCD-M41DAB http://dmedia.dmglobal.com/Document/DocumentDetails/23162 Online Parts List (P5 to P7) WEB owner’s manual http://manuals.denon.com/RCDM41/NA/EN/index.php http://manuals.denon.com/RCDM41/EU/EN/index.php http://manuals.denon.com/RCDM41/AP/ZH/index.php ) CAUTION IN SERVICING ELECTRICAL MECHANICAL REPAIR INFORMATION UPDATING • For purposes of improvement, specifications and design are subject to change without notice. Please refer to the MODIFICATION NOTICE.
  • Page 2: Caution In Servicing

    CAUTION IN SERVICING SAFETY PRECAUTIONS NOTE FOR SCHEMATIC DIAGRAM NOTE FOR PARTS LIST INSTRUCTIONS FOR HANDLING SEMICONDUCTORS AND OPTICAL UNIT WARNING AND LASER SAFETY INSTRUCTIONS Online Parts List Accessing the Parts List Logging in to New SDI and Accessing the Parts List Accessing the Part List from the Model Asset Screen PRINTED CIRCUIT BOARDS Parts Table Downloading the Parts List as an Excel File...
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS ◎ Make a safety check after servicing! The following items should be checked for continued protection of the customer and the service Check that all screws, parts and wires removed or disconnected when servicing have been put back technician.
  • Page 4 NOTE FOR SCHEMATIC DIAGRAM WARNING AND LASER SAFETY INSTRUCTIONS WARNING: WARNING WAARSCHUWING Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended Alle IC’s en vele andere halfgeleiders zijn gevoelig All ICs and many other semi-conductors are voor elektrostatische ontladingen (ESD).
  • Page 5 Online Parts List Accessing the Parts List Logging in to New SDI and Accessing the Parts List (1) Click the URL link on the cover of the service manual. (1) Access New SDI from the URL below. Examples of display <http://dmedia.dmglobal.com>...
  • Page 6: Revision History

    Accessing the Part List from the Model Asset Screen Downloading the Parts List as an Excel File (1) Display Model Asset from New SDI. (1) Displays the Parts List. Click the Download icon. (2) Click the section displayed as ▼ Link to Part Lists under the model name. NOTE : If the ▼...
  • Page 7 Searching Part Numbers or Ref. Numbers You can search a Parts List for part numbers or Ref. numbers. (1) Enter the part number or Ref. number in the search window of the Parts List, and press the search button. (2) The search results are displayed. The name of the sheet in which the search part is used and the part’s line are displayed.
  • Page 8: Initializing This Unit

    CAUTION IN SERVICING. Initializing This Unit Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB. 1. Press the power operation button to turn off the power, and remove the AC plug from the socket. 2.
  • Page 9: Schematic Diagrams

    ELECTRICAL SCHEMATIC DIAGRAMS LEVEL DIAGRAM SCH01_CPU HEADPHONE SCH02_DSP SPEAKER SCH03_DIR SCH04_CNT1 BLOCK DIAGRAM SCH05_INPUT SCH06_CNT2 POWER DIAGRAM SCH07_DAB SCH08_FRONT SCH09_SPK WIRING DIAGRAM SCH10_AMP SCH11_ST_BY SEMICONDUCTORS PRINTED CIRCUIT BOARDS 1. IC's MAIN, INPUT, CNT 1, CNT 2, REGULATOR 1, 2. FL DISPLAY REGULATOR 2, DAB EK Only, GUIDE R, GUIDE F, SUB 3.
  • Page 10 SCHEMATIC DIAGRAMS SCH01_CPU 161129 Added R217 47 ohm Connected BT_RX line CPU Part TO 2A TO 3A R101 AD_MONI1 R392 R102 FLAG2 R103 Q122 FLAG1 KRC102S R104 +3V3_ST AMP_PROT C101 DGND BT_RX 47/6.3-Z8155 DIR_DI DIR_DO R235 160928 DIR_CE Added R233, R235(10K) TO 4A R233 FPC101...
  • Page 11 SCH02_DSP TO A3 TO A1 TO A2 TO CPU PART DSP Part TO A0 161201 Added connection for CD solution 161201 Added connection for CD solution R222 RESET BT_RST R224 R245 BT_CTS AD_MONI1 AD_MONI1' R226 BT_RTS R247 TO BT UNIT R228 FLAG2 FLAG2'...
  • Page 12 SCH03_DIR H/P_MUTE DIR/DAC/VOL PART AUDIO_MUTE DIR_INT1 DIR_INT2 DIR_DO DIR_DI AMP_PROT DIR_RST DIR_CLK DGND DIR_CE AMP_PROT DAC_DEMP IC114 C205 LM1117-3.3 DAC_FLT DAC_FMT 0(AR) R340 R334 IC115 DAC_MUTE DIR_CLK MPIO_B1 NJW1194A IC124 R335 DIR_CE MPIO_B0 PCM5100A VOL_DA C211 IN1_R IN1_L R338 25.MC/SCL 47/50(6.3*11)-RFO MODE MPIO_C3...
  • Page 13 SCH04_CNT1 CNT1 PART CN107 CN106 CN106 CN107 SF125Z-19T SF125Z-19T OPT1 OPT1 OPT1 OPT1 DGND DGND DGND DGND OPT2 OPT2 OPT2 OPT2 DGND DGND DGND DGND D3V3 NET00445 NET00445 D3V3 SW_MUTE SW_MUTE' SW_MUTE' SW_MUTE PROT_V PROT_V PROT_V PROT_V PWR_ON PWR_ON PWR_ON PWR_ON PWR_DN PWR_DN...
  • Page 14 SCH05_INPUT INPUT PART JK502 RCA-107A R529 R530 SW_OUT SW_OUT' R531 Q504 KTC2875B CH_GND R533 C524 SW_MUTE 1N-J Q505 KTC2875B R435 SW_GND 470K C526 OPT1 VOUT C299 10/50-Z8156 L503 C527 100N-K Q115 KRA103S NET00445 D3V3' JK503 JSR2124 25MBPS Q121 JK504 KRC102S JSR2124 25MBPS C528 VOUT...
  • Page 15 SCH06_CNT2 CNT2 PART CN504 CN504 SM125Z-9T DGND R534 161130 DGND ST_BY DGND/AMP_GND R535 Connection option DGND A_+12V 161130 A_-12V R534, R535 0ohm->OPEN IC402 +3V9_ST +3V9_ST LM7805RTR PWR_DN PWR_DN TO CN511 PWR_ON PWR_ON PROT_V PROT_V CN505 CN505 SM125Z-05T DAB_CLK/TU_CLK DAB_DA/TU_SDA TU/DAB_5V TU/DAB_5V DGND DAB_SPDIF...
  • Page 16 SCH07_DAB DAB PART CN111 32P_PIN_SOCKET GND_D GND_A DAB_nRST R443 USB_DET USB_DN USB_DP DAB_SPDIF R444 DAB_SPDIF GND_D GND_D DAB_SCLK DAB_SCLK DAB_SDA DAB_DATA GND_D DGND CN110 CN110 SF125Z-05T R445 DAB_SCLK DAB_CLK/TU_CLK DAB_CLK/TU_CLK R446 DAB_DATA DAB_DA/TU_SDA DAB_DA/TU_SDA R447 FIX LOW TU/DAB_5V TU/DAB_5V FIX LOW R448 D120 DGND...
  • Page 17: Front Part

    SCH08_FRONT FRONT PART TUNED AUTO ST MONO RANDOM 6 7 8 9 CN501 R501 R502 R503 +VKK C501 100P R504 C502 100P RC501 3P WAFER CN501 C504 100P TO CP502 C508 100NF C510 100NF C513 OPEN FPC502 +3V3_ST DGND 160923 DGND VFD_3V3 VFD_RST...
  • Page 18 SCH09_SPK SPK Part SPK L JK506 C581 _CP504 GND1 GND1 MAIN MUTE Q516 KRC102S HI+B C583 HI+B AMP_GND AMP_GND HI_B- RL502 HI_B- AMPOUT_L L510 AMPOUT_L L508 JK507 SPK R AMPOUT_R R581 C585 C586 CN512 AMPOUT_R R582 33K(AMRS) 4700/35V(UTSP) C587 160919 D552 2.5mm 13P CNT R583...
  • Page 19 SCH10_AMP RCD-M41 AMP ASSY R702 C701 C703 R704 R706 100N-K 220/25(NICHICON) R705 C704 Q701 100N-K 2N5401S P701 Q705 Q706 2N5401S 2N5401S Q707 DHPTF1608471P85T Q703 Q704 2N5401S 2N5401S 2N5401S Q710 R712 R714 Q708 2SD2081 2N5401S C706 100P R717 C707 Q711 C709...
  • Page 20 SCH11_ST_BY ST-BY PART IC502 LM7808(TO-220F) D510 1SR156-400 TO CNT1_GND CN512 DC_5V DGND C544 100N-K CP504 C543 A_-12V TO CN515 A_+12V MOT_GND R552 CP504 +8VM +3V3_ST DGND Q506 D512 KRC102S R553 D513 DGND LBAS16HT1G LBAS16HT1G TO CP101 D515 CN512 D514 9P WAFER(2.5mm) 1N4007 1N4007 JUMPER...
  • Page 21: Printed Circuit Boards

    PRINTED CIRCUIT BOARDS MAIN, INPUT, CNT 1, CNT 2, REGULATOR 1, REGULATOR 2, DAB EK Only, GUIDE R, GUIDE F, SUB GUIDE F , GUIDE Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). MAIN (A SIDE) MAIN (B SIDE) INPUT (A SIDE) INPUT (B SIDE) DAB (A SIDE)
  • Page 22 SPK, FRONT, AMP, ST_BY SPK (A SIDE) SPK (B SIDE) FRONT (A SIDE) FRONT (B SIDE) C522 J137 C517 D504 D502 D505 D501 D506 D503 DZ503 R523 C516 R513 1 HP_L 2 H/P_GND R514 3 HP_R C583 J559 1 GND1 2 GND1 3 MAIN_MUTE 4 +VCC...
  • Page 23 LEVEL DIAGRAM HEADPHONE RCD-M41 LEVEL DIAGRAM(HEADPHONE)
  • Page 24 SPEAKER RCD-M41 LEVEL DIAGRAM (SPEAKER)
  • Page 25: Block Diagram

    BLOCK DIAGRAM IC115 NJW1194 Speaker INPUT SELECT & VOLUME AMP BLOCK TU_INT TU_RST TU_SEN TU_SDA TU_SCLK Headphone PCM5100A IC123 Subwoofer IC101 MB9AF344 IC123 DAB_CLK/TU_CLK DAB_DA/TU_SDA CD BLOCK EEPROM_SCL EEPROM_SDA IC127 PCM9211 VFD_RST VFD_CE VFD_CLK VFD_DA KEY1 KEY2 EX_INTERRUPT VOL_UP VOL_DOWN H/P_DET RED_LED GREEN_LED...
  • Page 26: Power Diagram

    POWER DIAGRAM EEPROM RCD-M41 CD Receiver POWER BLOCK Diagram CW24C16 u-COM MB9AF344 BT_MODULE 32mA NJM2845DL1 MB8811C1 TPS22918 25mA W25Q16JV 70mA AC IN W9812G6KH AP7361 TPS22918 MLC3730_DS LM1117 +1V2 POWER +22.8V 32mA LM1117 PCM5100A -22.8V LM7808 AM5888S ISP278R12 +14.2V +12V LM7808...
  • Page 27: Wiring Diagram

    WIRING DIAGRAM RCD-M41 WIRING DIAGRAM FRONT PCB 3P WIRE FFC 17P FFC 10P 3P WIRE 3P Wafer 12P WIRE CD MECHA 5P WIRE 6P WIRE FFC 16P MAIN PCB 5P WIRE 6P WIRE FFC 16P RESET GND1 GND1 MAIN MUTE...
  • Page 28 SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's MB9AF344 (MAIN : IC101) Terminal Function Pin Name Alternate Symbol Description INT00_0/SIN3_1/MADATA00_1 TU_INT...
  • Page 29 BU9546KV (MAIN : IC104) Pin Name Alternate Symbol Description AVRH AVSS AN08/SOT2_2/MAD16_1 TU_RST TUNER RESET AN09/SCK2_2/MAD17_1 DAB_CLK/TU_CLK DAB CLOCK / TUNER CLOCK AN10/SIN4_1/INT05_1/MAD18_1 DAB_DA/TU_SDA I/O DAB DATA / TUNER DATA DAB POWER ON / TUNER POWER AN11/SOT4_1/MAD19_1 DAB_ON/TU_ON AN16/SCK0_0/TIOA7_1 KEY2 KEY INPUT 2 AN17/SOT0_0/TIOB7_1 UPDATE TX...
  • Page 30 AM5888S (MAIN : IC105) NJW1194V (MAIN : IC115) MUTE BIAS VINTK TRB_2 VINLD VCTL VCC2 VOLD- VOLD+ VOTK- VOTK+ Pin Name Pin Name PGND InA1 Tone_Ba2b Vcc2 InA2 Tone_Ba1b MUTE InA3 Tone_Tr1b Spindle Actuator Driver(4X) Driver(6x) InA4 Thermal Shut down Vcc2 DCCAP_A Vcc2...
  • Page 31 PCM9211 PCM5100A (MAIN : IC124) DIR PCM9211 (MAIN : IC127) PW 20-Pin Package www.ti.com SBAS495 – JUNE 2010 (Top View) PIN CONFIGURATIONS PT PACKAGE LQFP-48 (TOP VIEW) ERROR/INT0 VDDRX Pin Functions NPCM/INT1 RXIN1 TYPE DESCRIPTION NAME MPIO_A0 AGND — Analog ground MPIO_A1 RXIN2 AVDD...
  • Page 32 www.ti.com www.ti.com SBAS495 – JUNE 2010 SBAS495 – JUNE 2010 DIR PCM9211 Block Diagram PIN FUNCTIONS (continued) BLOCK DIAGRAM FILT NAME TOLERANT DESCRIPTION AUXIN 0 MPO1 Multipurpose output 1 AUTO DOUT Main output port, serial digital audio data output RXIN7 RXIN 0 RXIN0 SCKO...
  • Page 33 2. FL DISPLAY 16-ST-103GINK (MAIN : FL501) PATTERN DETAIL Upper Lower 1-1A 2-1A 3-1A 4-1A 5-1A 1-1B 2-1B 3-1B 4-1B 5-1B 1-2A 2-2A 3-2A 4-2A 5-2A 1-2B 2-2B 3-2B 4-2B 5-2B 1-3A 2-3A 3-3A 4-3A 5-3A 1-3B 2-3B 3-3B 4-3B 5-3B 1-4A 2-4A...
  • Page 34 3. Remote Code Table KEY CODE (Kaseikyo) RCD-M41:RC-1214 Maker Code(C Byte 1 Byte 2 ) Remarks DENON(3254H) 00101010 01001100 SLEEP Power CLOCK basic setup KEY No. Name Genre 1(D Genre 2(D DATA Code (D Parity (D Byte 3 Byte 4...
  • Page 35 MECHANICAL DISASSEMBLY Flowchart 1. LOADER PANEL 2. FRONT PANEL ASSY 3. MECHA ASSY 4. HEAT SINK SUB ASSY 5. REAR PANEL 6. PCB ASSY 7. MAIN PCB 8. TRANS EXPLODED VIEW PACKING VIEW...
  • Page 36 DISASSEMBLY Flowchart • Remove each part following the flow below. • Reassemble the removed parts in the reverse order. • Read "SAFETY PRECAUTIONS" before reassembling the removed parts. • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work. Failure to shape the wires correctly may cause problems such as noise. •...
  • Page 37: Front Panel Assy

    • The photographs with no shooting direction indicated were taken from the top of the unit. (1) Remove the screws. • Photos of RCD-M41 E1C are used in this manual. The viewpoint of each photograph (Shooting direction : X) [View from the top] ↓Shooting direction: B↓...
  • Page 38: Heat Sink Sub Assy

    3. MECHA ASSY 4. HEAT SINK SUB ASSY Proceeding : TOP COVER → LOADER PANEL → FRONT PANEL ASSY → MECHA ASSY Proceeding : TOP COVER → LOADER PANEL → FRONT PANEL ASSY → MECHA ASSY (1) Remove the screws. →...
  • Page 39: Rear Panel

    5. REAR PANEL 7. MAIN PCB Proceeding : TOP COVER → LOADER PANEL → FRONT PANEL ASSY → MECHA ASSY Proceeding : TOP COVER → LOADER PANEL → FRONT PANEL ASSY → MECHA ASSY → HEAT SINK SUB ASSY → REAR PANEL →...
  • Page 40: Exploded View

    EXPLODED VIEW Parts List http://dmedia.dmglobal.com/Document/DocumentDetails/23162 S5X4 S5X11 S6X2 S5X9Only DAB S1 X2 12-2 S3X4 S1X3 S1 X4 S8X1 Only DAB S4 X1 S1 X1 S1X1 S1 X1 S3X4 S4 X3 S1X6 32 X2 S1X3 S1 X1 S1X1 S1X2 S1X1 S7 X2 S1X2 9 X4 S7X2 Only BK MODEL...
  • Page 41 PACKING VIEW Parts List http://dmedia.dmglobal.com/Document/DocumentDetails/23162 7-11. ZIPPERBAG(A4size) 7-1. Notes on RADIO 7-8. Cautions on Using Batteries (E2/EK/E1C Only) Front 7-2. SAFETY INST. SC-M41 7-4. WARRANTY (E3 Only) Front 7-3. INST. Manual Paper (E1C/JP Only) 7-9. INST. Manual CD (E3/E2/EK Only) 7-6.
  • Page 42: Repair Information

    REPAIR INFORMATION TROUBLE SHOOTING SPECIAL MODE 1. The unit does not power on (No.1) Special mode setting button 2. The unit does not power on (No.2) 1. Version Display Mode 3. VFD is not lit 2. Display check mode 4. The disc does not load, does not play, etc. 3.
  • Page 43 TROUBLE SHOOTING 1. The unit does not power on (No.1) 2. The unit does not power on (No.2) Check the state / soldering for the following parts. Check Power Supply Voltages for +3V3_ST ST-BY PART The red LED is blinking. "2.
  • Page 44 3. VFD is not lit 4. The disc does not load, does not play, etc. Check the state / soldering for the following parts. Check the Pickup. Check Power Supply Voltages for VFD. ST-BY PART No abnormalities in "4. Notes on Handling the Replace the mechanical.
  • Page 45 5. No audio output from Tuner 6. No audio output from DAB (EK Only) Is the antenna connected normally? Connect the antenna. Is the antenna connected normally? Connect the antenna. Check the state / soldering for the following parts. Check the state / soldering for the following parts. Check Power Supply Voltages for Tuner module.
  • Page 46 7. No audio output from Bluetooth. 8. No audio output from this unit. Check the state / soldering for the following parts. Check Power Supply Voltages for Audio. Check the state / soldering for the following parts. Check Power Supply Voltages for Bluetooth. DSP Part AMP ASSY SPK Part...
  • Page 47: Test Point

    MEASURING METHOD AND WAVEFORMS 1. TEST POINT 2. WAVEFORMS Connect the GND (-) probe of the oscilloscope to the specified reference voltage points to check the 1. DISC PLAY RF WAVEFORM (EYE-PATTERN) waveforms. 1.1 CD(TCD784) PLAY NOTE Measuring Disc : CD/TCD-784 (It is recommended to use extension wires between the probe and test points.) •...
  • Page 48: Protection Of The Ld

    NOTES ON HANDLING AND REPLACEMENT OF THE LASER PICK-UP 1. Protection of the LD Solder a part of the LD circuit to short-circuit. After connecting the circuit, remove the soldering form. Precautions when handling the laser CD mechanism 2. Precautions when handling the laser CD mechanism •...
  • Page 49: Special Mode Setting Button

    SPECIAL MODE Special mode setting button b No. 1 - 8 : While holding down buttons "A" and "B" simultaneously, insert the AC plug into the wall outlet to turn on the power. Mode Button A Button B Descriptions The firmware version is shown on the display. Version Display Mode (See 1.
  • Page 50: Version Display Mode

    1. Version Display Mode 3. Initialization Mode 1.1. Actions 3.1. Actions Version information is displayed when the device is started in this mode. Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the PCB. 1.2.
  • Page 51 4. Test mode 4-3. Pickup movement 4.1. Actions (1) Press the " 8 or 9 " buttons to move the pickup to the inner or outer circumference. Release the button to stop the pickup. A mode for starting Servo check, Pickup movement, Stop, All servo on, Adjustment value display, Dis- (2) You can also stop the pickup by pressing the "...
  • Page 52 4-6. Adjustment value display 4-7. Displaying the laser current 4-6.1. Display Order • Press and hold the " 2 " button for at least 1 second while stopped (CD TEST MODE) to turn the laser ON and measure and display the laser current. (1) When "SOURCE"...
  • Page 53 5. Heat run mode 5-2. Chucking mode (1) Press the " 2 " button once while stopped after the CD heat run mode starts and TOC reading is com- 5.1. Actions pleted. Executes each heat run mode. (2) Repeat TOC reading → search of first track on disc → OPEN tray → CLOSE tray → TOC reading. The heat run repetition count is shown in the time display area.
  • Page 54 5.3. Error display 6. Accumulated laser on time display mode 6.1. Actions ( 13 lit) • The laser drive time is added and the result is displayed. EX-XX • Each count is 10 minutes (truncated if less than 10 minutes). ( EX-XX : Error Code) •...
  • Page 55 7. Protection History Display Mode 8. Version Display of DAB Module (RCD-M41DAB Only) (1) While holding down buttons the "SOURCE" and " 9 " buttons simultaneously, insert the AC plug (1) Insert the AC plug and turn on the power. to turn the power on.
  • Page 56 UPDATING PROCEDURE AFTER REPLACING THE PCB. PROCEDURE AFTER REPLACING THE U-COM, ETC. FIRMWARE UPDATE PROCEDURE 1. Items necessary for update 2. Updating via System u-com (IC101) 3. Updating via Disc (IC109) 4. Updating via DSP (IC109)
  • Page 57 PROCEDURE AFTER REPLACING THE PCB. PROCEDURE AFTER REPLACING THE U-COM, ETC. The procedure after replacing the printed circuit boards is as follows. The procedure after replacing the u-COM (microprocessor), flash ROM, etc. is as follows. (1) Change the resistor for setting the region. Implement the update method when the DIGITAL PCB or network module is replaced.
  • Page 58: Firmware Update Procedure

    FIRMWARE UPDATE PROCEDURE 1. Items necessary for update Items necessary for update are as follows. Offered / not Offered Update Type Needed Part for Update Requirement Standard Service Equipment Purchase from D&M Article code Download from SDI Not offered by D&M RS-232C cable 9P (Male), Straight 8U-210100S WRITING KIT...
  • Page 59: Installing The Software

    2. Updating via System u-com (IC101) 2.1. Items to Be Prepared 2.3. Installing the Software Install the writing software "FLASH MCU Programmer for FM3/FM4" on your computer. (1) Obtain "pcwfm3-v01l07.zip" from SDI. (2) Personal Computer (Be installed "FLASH MCU Programmer for FM0+/FM3/FM4"). (3) RS-232C cable (9P (Male), Straight).
  • Page 60 2.4. Run the FLASH MCU Programmer (5) The following display appears when the firmware update is complete. Click "OK". (1) Press the power button to turn on the power. (2) Execute "FLASH MCU Programmer for FM3/FM4" after installing it on your computer. (1) Double-click FLASH MCU Programmer to launch FLASH MCU Programmer Start.
  • Page 61 3. Updating via Disc (IC109) 4. Updating via DSP (IC109) 4.1. Preparation The latest firmware can be written to a disc for update. 3.1. Support Disc ・Use the Disc created in "3.2. How to create a disc". (1) Preparation 4.2. Starting up •...
  • Page 62 Copyright © 2017 D&M Holdings Inc. All Rights Reserved.
